| Type: | Ball |
|---|---|
| Structure: | Other Structure |
| Place of Origin: | China (Mainland) |
| Seals Type: | open |
| Precision Rating: | P2 |
| Model Number: | 7602025TVP |
| Outside Diameter: | 50-52 mm |
| Bore Size: | 20-25 mm |
| Brand Name: | BEART |
| structure: | ball bearing |
| application: | screw machine tool |
| precision: | ABEC9 |
Quick Details
Specifications

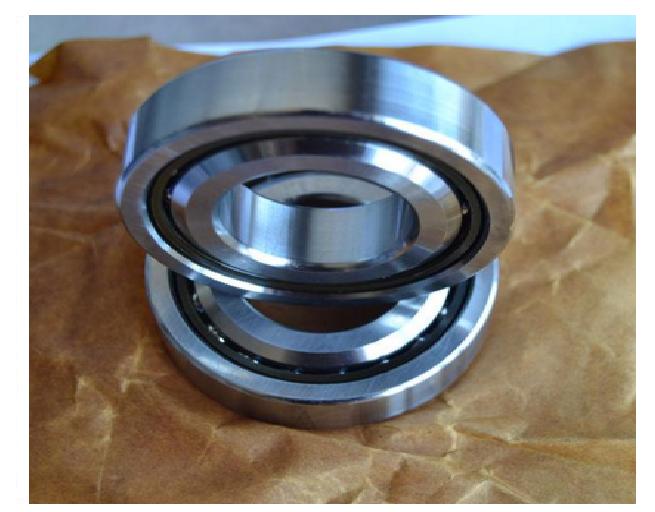

Ball screwSupport bearings are manufactured specifically for high performance ball screw applications, where extreme rigidity requirements preclude the use of standard angular contact bearings. the internal configuration has been designed to provide an optimum combination of high rigidity, low drag torque, exceptional control of axial runout, higher running speeds and longer life.
ChinaBallScrew support bearing manufacturer Beart Enterprise Co., Limited. Precision ball screw support bearing from china, china best maker of ball screw support bearing for machine tools. Qualified bearing from china.Chinaprecision ball screw support bearing maker, precision ball screw support bearing manufacturer from china, china top famous bearing supplier.
Bearing number Boundary dimensions mm Load rating kN Weight kg d D B C C0 7602012TVP 12 32 10 11.6 12.5 0.042 7602015TVP 15 35 11 12.5 15 0.052 7602017TVP 17 40 12 16.6 20 0.075 7602020TVP 20 47 14 19.3 25 0.12 BSB020047T 20 47 15 19.3 25 0.13 7603020TVP 20 52 15 24.5 32 0.17 7602025TVP 25 52 15 22 30.5 0.15 BSB2562 25 62 15 28.5 41.5 0.24 7603025TVP 25 62 17 28.5 41.5 0.27 BSB3062 30 62 15 26 39 0.22 7602030TVP 30 62 16 26 39 0.23 7603030TVP 30 72 19 34.5 55 0.41 BSB3572 35 72 15 30 50 0.30 7602035TVP 35 72 17 30 50 0.34 7603035TVP 35 80 21 36.5 61 0.55 BSB4072 40 72 15 28 49 0.26 7602040TVP 40 80 18 37.5 64 0.43 BSB4090 40 90 20 50 83 0.65 7603040TVP 40 90 23 50 83 0.75 BSB4575 45 75 15 28.5 52 0.26 7602045TVP 45 85 19 38 68 0.49 BSB45100 45 100 20 58.5 104 0.81 7603045TVP 45 100 25 58.5 104 1.00 7602050TVP 50 90 20 39 75 0.56 BSB50100 50 100 20 58.5 104 0.75 7603050TVP 50 110 27 69.5 127 1.30 BSB055090T 55 90 15 32.5 65.5 0.38 7602055TVP 55 100 21 40.5 81.5 0.75 BSB055120T 55 120 20 60 116 1.20 7603055TVP 55 120 29 78 146 1.70
They can supportVery high thrust loads in one direction or combinations of radial and thrust loads, but not radial loading alone. these bearings are designed to provide machine tool drive systems with extreme axial rigidity, low drag torque and minimal axial runout. They are intended for specific applications in machine tools, e.g., ball screw supports, cross slides, X-Y table positioners and transfer tables. They should not be used in place of standard angular contact spindle bearings.
