| Application: | Laser Marking |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Power(W): | 10w / 20W / 50w /100w |
| Model Number: | OV-PF 600 |
| Brand Name: | Optics Valley |
| Place of Origin: | China (Mainland) |
| Working Accuracy: | 0.001 |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Control Software: | EZCAD |
| Cooling Mode: | Air Cooling |
| CNC or Not: | Yes |
| Laser Type: | Fiber Laser |
| Condition: | New |
| Laser Type: | Fiber Laser |
| Working Accurracy: | 99.99% |
| Laser source: | USA IPG |
| Consumable: | without consumable, so free of maintenance |
| Galvo Head: | China Top quality |
| Color: | can mark with color |
| Technical support: | Lifelong support free of charge |
| Standard Working Area: | 110*110mm |
| laser Marking Depth: | 0.01-4mm |
Quick Details
Specifications
Fiber laser marker for PVC pipe machine is widely for stainless steel marking, carbon steel marking, iron making, aluminum marking, CopperMarking, anodized and coated material materials marking, and not-metallic such as nylon marking, ABS/PVC/PC board, hard plastic marking, rubber marking, resin marking, ceramic marking etc., in the industries of electronic and communication products, IC products, electric lines, cable computer computer components and electric appliance, precision parts, hardware tools, instrument appliance and so on.
Features:

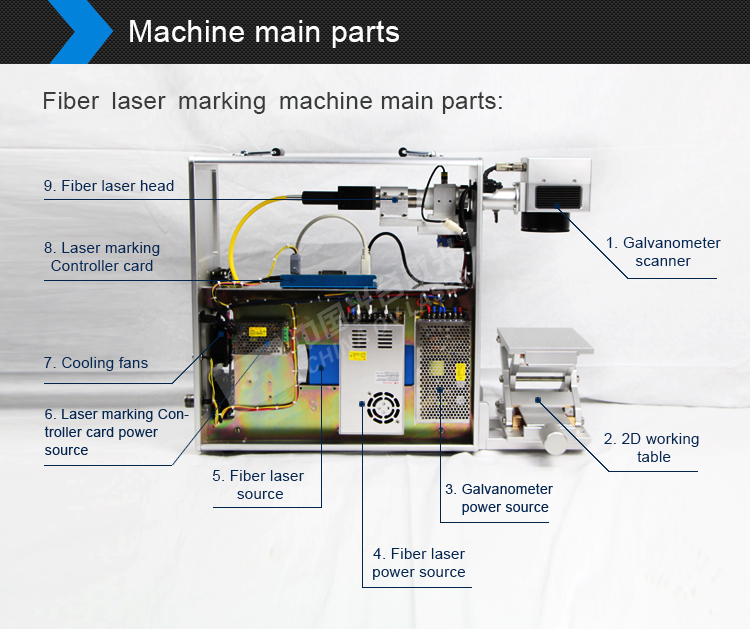

- Compact: the high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
- High Precision: Re-position precision is 0.002mm
- High Speed: Imported scanning system makes the scanning speed is up to 7m/s
- Easily Operating:Afford the specific marking software based on Windows, You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
- High Reliability: MTBF>100,000 hours
- Energy Saving: the efficiency of optic-electrical converting is up to 30%
- Low Running Cost: No wearing part. Free maintaining.
Application scope and material:
- Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.
- Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.
- Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.
- Dishware,food,drinking,smoking and alcohol,etc.
Specifications:
Type |
Portable |
Desktop |
Colorful |
Floor Stand |
PC includes or not |
Not includes PC |
Includes PC | ||
Laser Source | ||||
IPG Series: |
Pulsed, High Energy Ytterbium Fiber Lasers | |||
Mode of operation |
Pulsed | |||
Polarization: |
Random | |||
Nominal average output power |
10W - 20W-30W-50W | |||
Central emission wavelength: |
1060-1070 nm,Q-switched operation | |||
Emission Bandwidth (FWHM) |
<10 nm | |||
Long-term average power instability |
<5% | |||
Pulse width, (FWHM) |
100 ns | |||
Laser switching on time |
180 μsec | |||
Laser switching off time |
180 μsec | |||
Pulse Repetition Rate* kHz |
20-80 kHz | |||
Energy per pulse (PRR = 20 kHz) |
0.95 mJ | |||
Typical beam quality, M2 |
<1.8 | |||
Output fiber delivery length |
3m | |||
Operating voltage: |
220V | |||
Max. Power consumption: |
600W | |||
Net Dimensions: |
70*20*50cm |
58*22*50cm |
70*20*50cm |
143*62*101cm |
Net Weight: |
44 kgs |
53 kgs |
44 kgs |
130 kgs |
Gross Weight: |
60 kgs |
70 kgs |
60 kgs |
150 kgs |
Laser system | ||||
Scanning Speed: |
0-7000mm/s | |||
Coding Speed: |
0-5000mm/s | |||
Coding size: |
110mm×110mm (F-theta 160) | |||
Spot size: |
≤ 40 micron (F-theta 160) | |||
Cooling unit: |
Air cooling | |||
Pilot laser: |
650nm diode laser, visible red light for coding guide | |||
Continuous working time: |
≥16h | |||
Humidity: |
45~85% (no condensation) | |||
Operating temperature: |
0~40°C | |||
Control units |
CT-MARK (English Version) | |||
