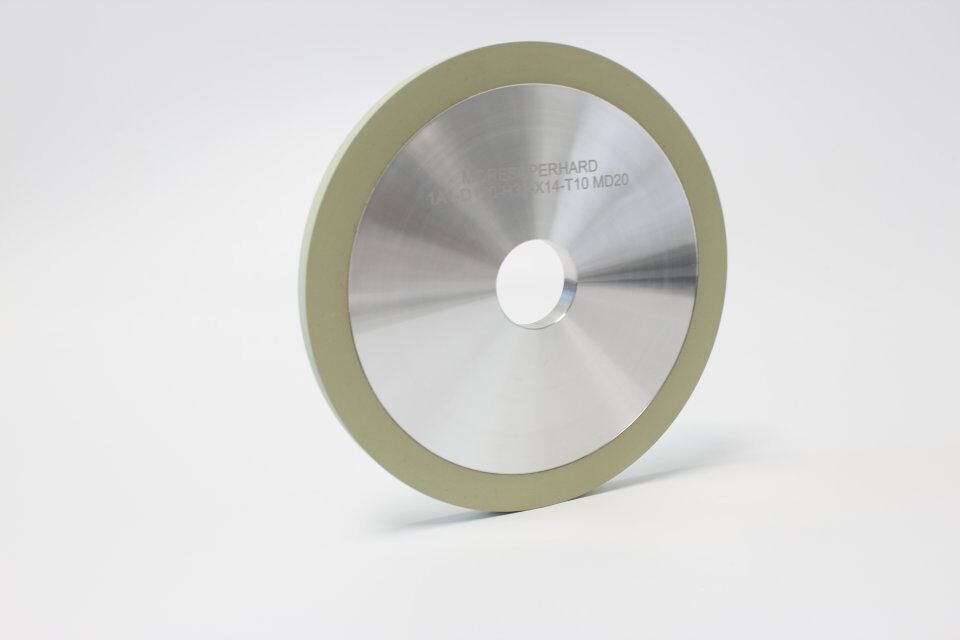

Specifications of Diamond Bruting Wheels

ShapeMaterialGritsizeApplication

1A1SDC180180*10*32*10For tools

1A1SDC320#180*6*32*10For Tungsten steel

11A2SDC100#125*30*32*10*10For Tungsten steel

11A2SDC180#100*40*32*5*5For Tungsten steel

1A1SDC150/200#200*5/20*32*5/10Grinding magnetic core

Punch machineSDC180#100*25*25.4*3*5Punch machine

1A1SDC180#50*3*10*5Grinding magnetic core

1A1SDC300/600#200*23*60*17.5*10PCB

11A2SDC1500#100*32*20*5*10Universal grinding machines

3A1SDC1000#135*15*31.75*2*10PCB micro drill

11A2SDC150#125*32*32*5*5Wordcut tools

1A1CBN400#205*12*31.75*8/10Chrome steel cutting tools

We provide the standard GB / T6409.2-1996 resin bonding agent superhard material grinding wheel, diameter range:20 ~ 700mm, grinding wheel thickness: 5 ~ 300mm, abrasive grain size: 60/70 ~ W3.5. and according to user requirements design and manufacture of non-standard abrasive.



Advantages of Diamond Bruting Wheels

1. Grinding efficiency, while grinding wheel consumption is relatively slow;

2. Self-sharpening is good, the grinding heat is small, not easy to block, reducing the phenomenon of work burn when grinding;

3. Wheel has a certain elasticity, is conducive to improving the surface roughness of the workpiece, mainly used for fine grinding, semi-fine grinding, knife grinding, polishing and other processes;

4. Diamond resin wheel is low temperature curing, short production cycle, equipment and supply process is relatively simple; due to the resin with mobility, easy to shape the surface of the grinding wheel.
