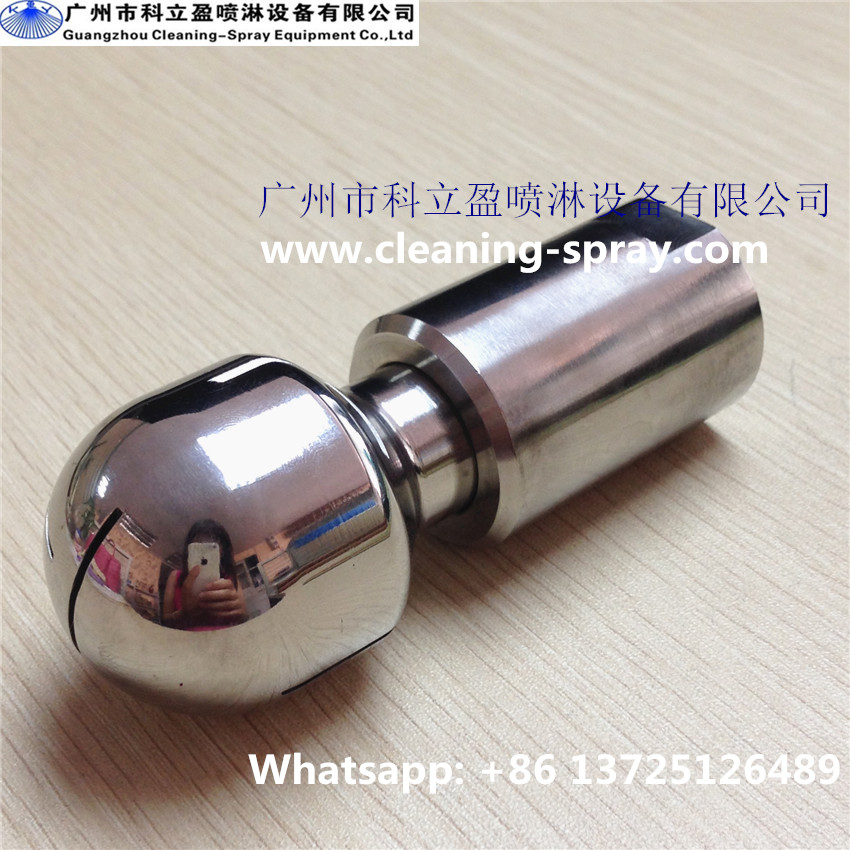

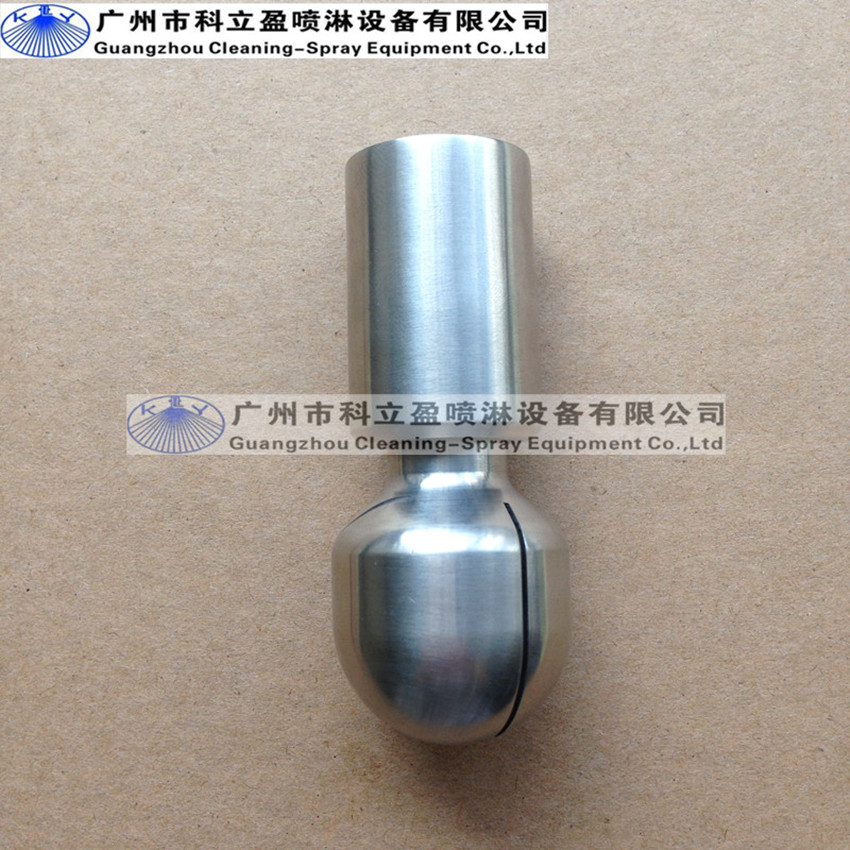

1/2 BSPP rotary spray ball for CIP systems

Model	D25 rotary spray ball
Material	316LSS
Connection	1/2" BSPP, 3/4" Slip-on or 1" welding
Recommanded pressure	1.5-3 bar
Temperature	130°
Max. Tank diameter	2m
Application	Rinsing and cleaning of tanks / containers
Filteration	Line strainer with a mesh size of 0,3 mm/50 mesh

 Design features :

1. Double bearing design with excellent rotation effects, and better stability and longer life bearing

2. Self-cleaning self-lubricating design

3. 360 degree self-rotating cleaning nozzle, cleaning every place of your containers

4. Low consumption of liquid, operating at low pressure

5. Driven and lubricated by the cleaning fluid

6. the compact and hygienic design meets requirements for use in CIP system





Common application:

•  Soup kettles
•  Yeast propagation tanks
•  Batch processing vessels
•  Fluid bed dryers
•  Ink and paint mixing vats
•  Brew kettles
• Storage tanks
• Spray dryers
• Commercial ovens

E.G: in food industry, beverage industry, pharmaceutical industry and chemical industry

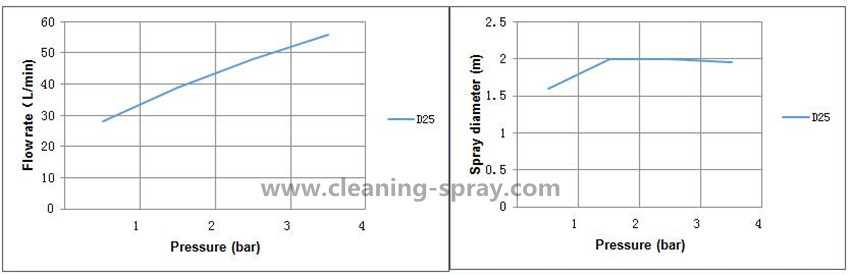

Performance Data



Exibition photos:
