| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | CE, ISO |
| Power(W): | 4000 |
| Place of Origin: | China (Mainland) |
| Model Number: | GP-PC90H/R |
| Brand Name: | Genlitec or OEM |
| Power Type: | Gasoline |
| Application: | Road |
| Condition: | New |
| Water tank for option: | yes |
Quick Details
Specifications

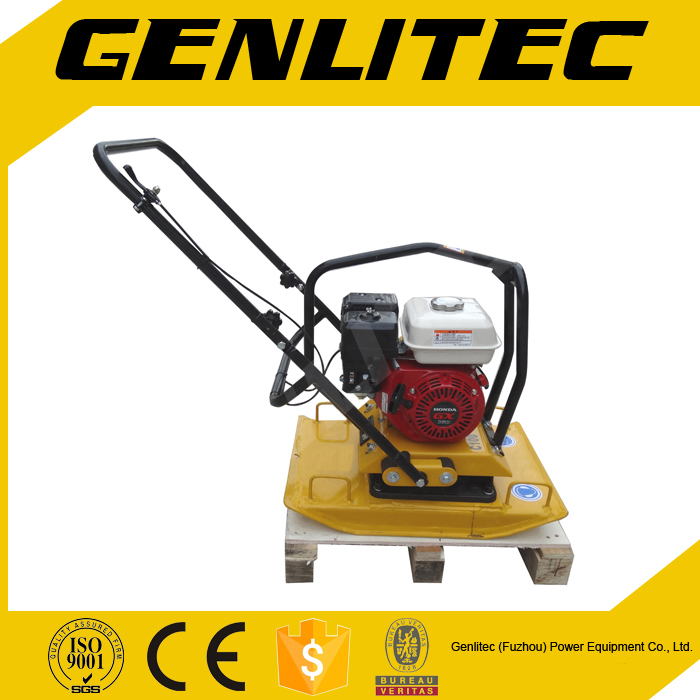

90kgs Road Plate Compactor with Robin EY20/Honda GX160
Features:
Foldable handle for easy transportation and stock
Open plate provides self cleaning
Built-in wheel kit for easy transportation
Heavy-duty shock mounts reduce vibration to the upper engine & handle
Sealed belt cover to prevent sand and soil in
Round edge protect the exciter housing and even objects around working site
Lifting hook as standard part
Throttle control is available as standard part
Features:
Foldable handle for easy transportation and stock
Open plate provides self cleaning
Built-in wheel kit for easy transportation
Heavy-duty shock mounts reduce vibration to the upper engine & handle
Sealed belt cover to prevent sand and soil in
Round edge protect the exciter housing and even objects around working site
Lifting hook as standard part
Throttle control is available as standard part
| Model | GP-PC90H | GP-PC90R |
| Engine | Air-cooled,single Cylinder,4-stroke | |
| Engine Type | Petrol,Honda Gx160 | Petrol,Robin EY20 |
| Power (HP) | 5.5 | 5 |
| Operating Weight (kg) | 87 | 86 |
| Size of Base Plate (LxW) (cm) | 51x45 | |
| Max.Centrifugal Force (KN) | 20 | |
| Vibration Frequency (vpm) | 4500 | |
| Compaction Depth (cm) | 30 | |
| Forward Speed (cm/s) | up to 30 | |
| Compacted Area (m2/hr) | up to 700 | |
| Gradeability | 30% | |
| Operating Dimension (LxWxH) (cm) | 106x45x100 | |
| Shipping Size(LxWxH)(cm) | 60x47x76 | |
| Specifications are subject to continuous product development | ||
