Technical Advantages of YT-13SS:

. Curve Type reinforcing steel bar straightening mechanism (our patented product), prevent the rebar axial twisting; Double lines feeding, single line independent Straightening to make sure the rebar straightened in best effect.

. Automatic Feeding mechanism to make the feeding fast and convenient.

.Servo Drive and four wheel Reverse conveying mechanism (Patented products), bi-directional feeding and bi-directional Bending in multiple times, which realize big size stirrup fabrication.

.the World's most advanced control system, intelligent control the working Procedures regulating, bending speed, bending angle during equipment running; by knowing equipment operating condition in the whole time with real-time Monitoring function and control system fault self finding. Use high-end servo Motor with super power, which is stable and reliable to make sure accurate Final stirrup bending angle degree and size. the equipment can work 24 hours in Continuously.

. Lubricant Housings realize centralization lubrication to prolong the equipment using Life.

.Set Standard picture base, which can save and use the pictures automatically.

   Technical Parameters of YT-13SS

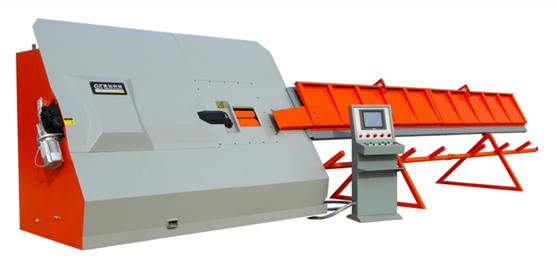

Bi-directional CNC Automatic Stirrup Bending Machine YT-13SS
Model#	YT-13SS	Rated Power	35KW
Remote Function	with(4 route control)	Straightening System	S Arc Straightening(Our Patented Product)
Single Strand Diameter(mm)	Φ6-Φ13	Production Capacity( Single Strand)	1200pcs/h
Double Strand Diameter(mm)	Φ6-Φ10	Production Capacity(Double Strand)	2400pcs/h
Bending Angle	1°-180°	Elbow Move up and Down	with
Max Pulling Speed	160m/min	Bending Direction	Bi-direction
Length Tolerance	±1mm	Four Wheel Reverse Conveying Mechanism	with(Our Patented Product
Angle Tolerance	±1°	Equipment Dimension (mm)	3450×1517×2075
Equipment Weight	2200KG	Steel Straight Bar Collection Frame (mm)	6000×650×500
