Technical Advantages of YT-20

. According to the different Models, It can process diameter of 8-28mmreinforcing steel bar, support bend Special–shaped Stirrup.

. Has independent Cut function, one steel bar can complete multiple of different graphics, to Avoid the repeated loading.

. Use high-end servo motor with super power, s, Which is stable and reliable.

.Real Time control system, according to the size of stirrup, it can adjust the rebar Running speed, bending speed and bending angle during operation.

. Smart step speed control, Auto controls the rebar running speed and bending speed separately, and make Sure larger size stirrup will not be deformation by inertial fling.

.Set Standard picture base, which can save and use the pictures automatically.



Technical Parameters of YT-20

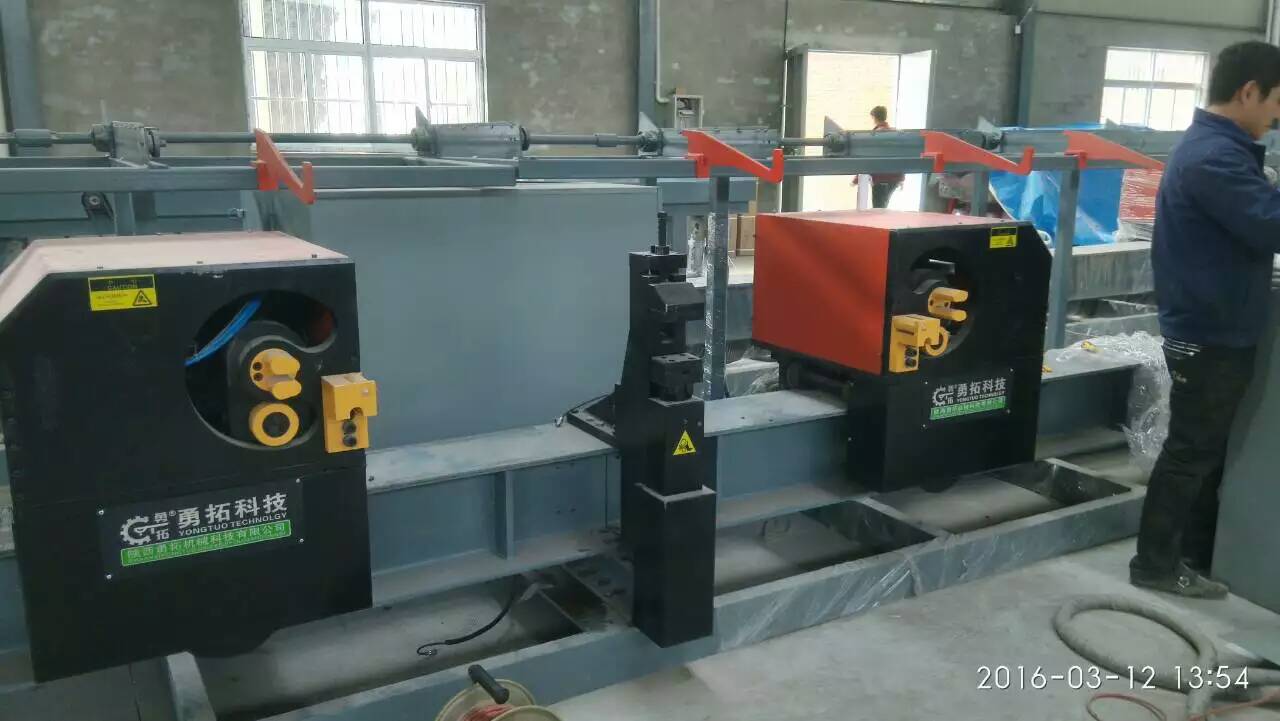

YT-20 CNC Rebar Bending Machine
Model#	YT-20	Reinforcement Length	1000-12000mm
Bending Bar Diameter	Φ12-Φ20mm	Length Tolerance	±1mm
Bending Angle	1°-180°	Angle Tolerance	±1°
Bending Direction	Bi-direction	Equipment Dimension(mm)	3300×1311×2080
Max Pulling Speed	60m/min	Rated Power	28KW
