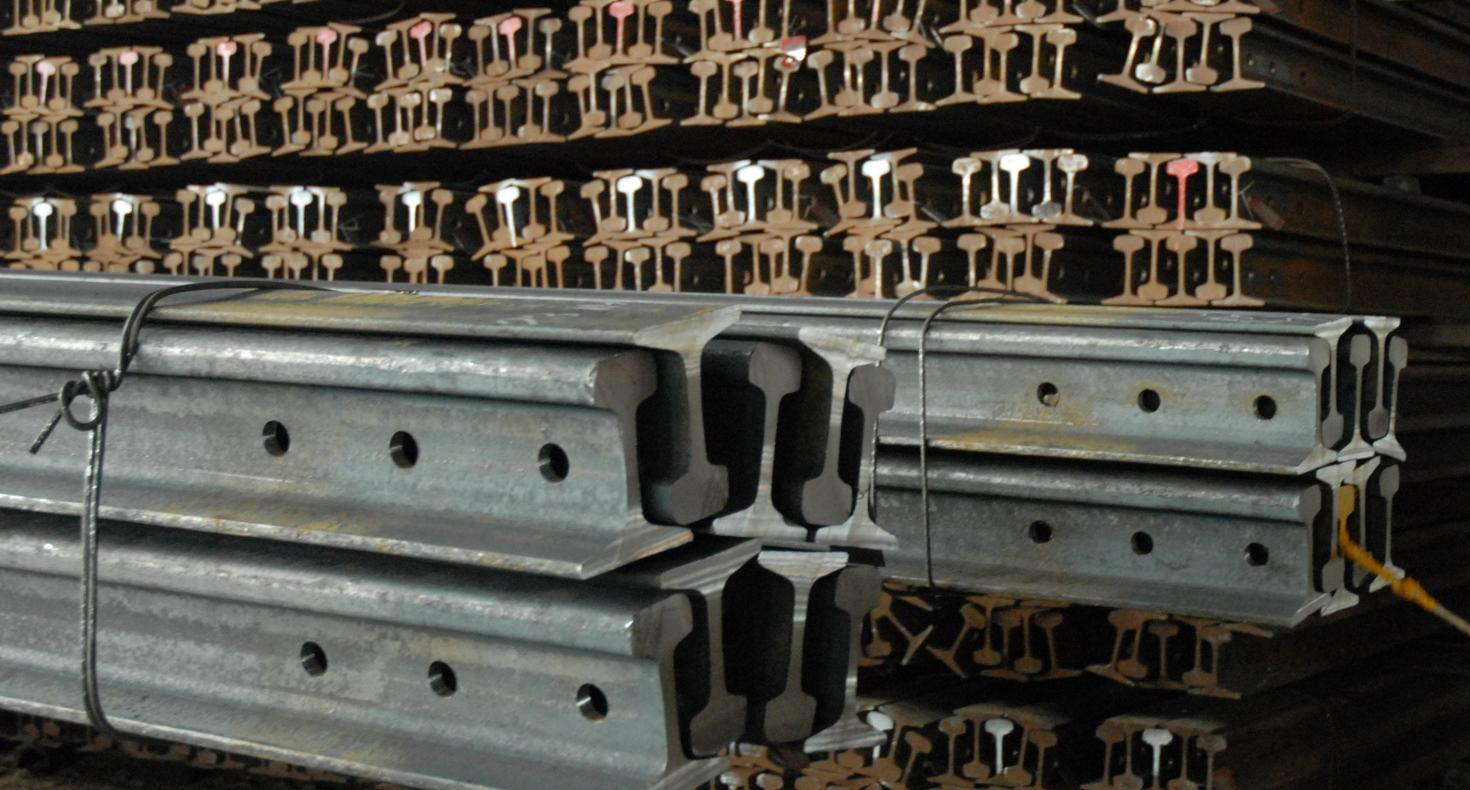

Light Steel | |||||
Model |

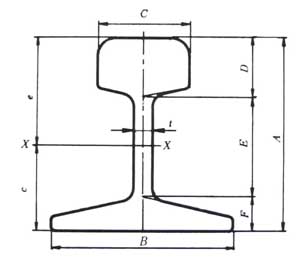

Section Size (mm) |
Theoretical Weight (kg/m) | |||
A |
B |
C |
t | ||
8.00 |
65.00 |
54.00 |
25.00 |
7.00 |
8.42 |
12.00 |
69.85 |
69.85 |
38.10 |
7.54 |
12.20 |
15.00 |
79.37 |
79.37 |
42.86 |
8.33 |
15.20 |
18.00 |
90.00 |
80.00 |
40.00 |
10.00 |
18.06 |
22.00 |
93.66 |
93.66 |
50.80 |
10.72 |
22.30 |
24.00 |
107.00 |
92.00 |
51.00 |
10.90 |
24.46 |
30.00 |
107.95 |
107.95 |
60.33 |
12.30 |
30.10 |
| Name of Commodity | Specificaton | Materials | Standard of Products | Theory Weight (kgs/set) | Length of Dimension (cm) | Packed in bundle with iron wire (set) |
| Fish Plate | 8kg | Q235B | GB11265-89 | 0.8 +0.8 =1.6 | 50 | |
| 1+1=2 | ||||||
| 12kg | GB11265-89 | 1.1+1.1=2.2 | 45.5 | 50 | ||
| 2.6-3.0 | ||||||
| 15-18kg | GB11265-89 | 3.6-4.0 | 53.54 | 25 | ||
| 4.6-5.0 | ||||||
| 5.6-6.0 | ||||||
| 22-24kg | GB11265-89 | 6.6-7.0 | 61.73 | 20 | ||
| 7.6-8.0 | ||||||
| 8.4-9.0 | ||||||
| 30kg | GB11265-89 | 14.4-15.0 | 71.48 | 10 | ||
| 16.4-17.0 | ||||||
| 43kg | GB185-63 | 57.0-58.0 | 79 | 1 | ||
