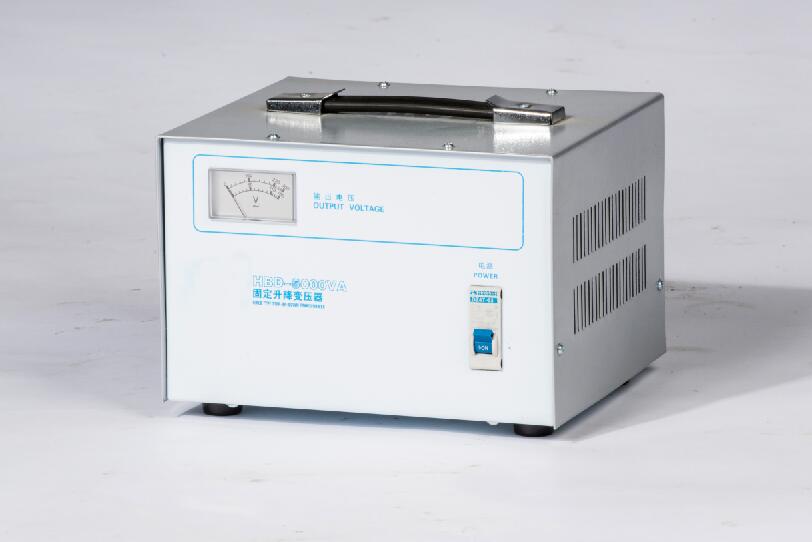

Product Main

Quick Details

Phase:	Single Phase
Usage:	SVC
Brand Name:	HOSSONI
Place of Origin:	China (Mainland)

Specifications

FEATURES Power Rating: 500VA-10KVA / 5KVA-45KVA Power Factor: 0.8 Reset Switch: Manual Reset Switch Bypass Switch: Manual Bypass Switch for 3 KVA - 60 KVA, OPTIONAL Indicator: Input/Output Voltage (OPTION: VOLTMETER, NIXIE TUBE, LED, LCD) Operating Temperature: 0 ~ 40 C Relative Humidity: 0 - 90% MAIN TECHNICAL INDEX: SERVO SYSTEM Voltage Regulatotion System: Servo Motor System Input Regulation System: 220V+15%/-25%(160-250V), 1 Phase (100V, 110V Option) Output Voltage Regulation: 220V+/-3%, 1 Phase (100V, 110V Option) Frequency: 50 Hz +/-5% Efficiency: Better than 95% at full load, 198-220V input voltage Electric Appliance: 1500v/min no flashing nor puncture Insulation Resistance: more than 2M Ohm Output Wave Form: Sine wave (Synchronize with input wave form) Output Wave Form Distortion: No additional distortion Harmonic Distortion: Less Than 0.5% Response Time: Less than 1 second (the input votlage changed 10%) PROTECTION SYSTEM (OPTIONAL) Surge Protection: Automatic shutdown Overlaod Protection: Circuit breaker or Fuse Time Delay: - Short time delay: 5 seconds ± 2 seconds - Long time delay: 5 minutes ± 2 minutes Automatic Shutdown: - Output voltage out of limits: 245±5V, Manual Reset - Output voltage out of limits: 185±5V, Automatic Reset - AC voltage flicker - Output Short Circuit - Phase fault - Power failure or Interruption - Power semiconductor failure OTHER Acoustic Noise: Less than 40dB Warranty period: One year (for free) from the date of B/L. Free product Accessories will be sent to you and save your maintain cost Application: Office equipment, test equipment, medical equipment, Industrial automation equipment, household appliance,lighting system, Communication system, etc CONTACT Nemo.Zheng at
