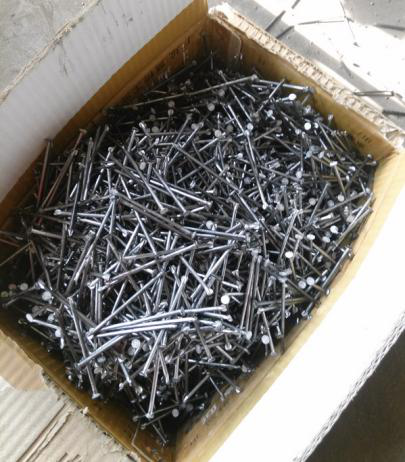

Concrete nails is one kind of nails made of carbon steel,in gerneal 45# or 60# steel wire.It has the characteristics of high hardness,thick and short,good penetration and stave ability.It belongs to special nails,and its function is to nail on hard goods that wire nails can not nail on.the technical process to make concrete nails is:Wire drawing—Low temperature annealing–Nails making—Quenching—Galvanzation—Packaging.

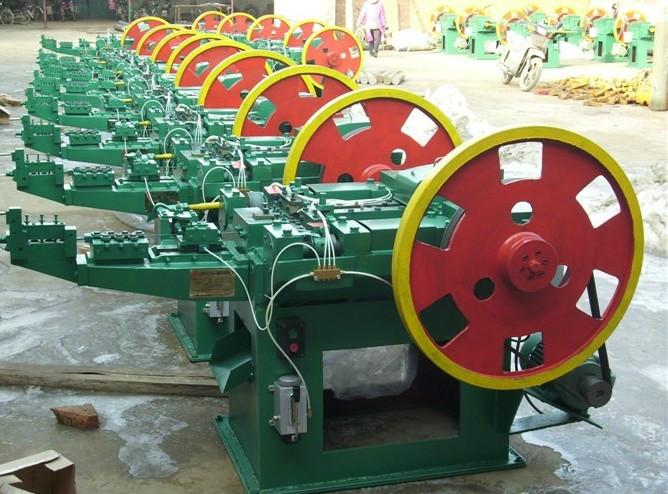

the concrete nails making machineand wire nail making machine is same machine,but the difference is the heat treatment equipment and galvanize equipment.A friction gear is installed between crankshaft and flywheel.It plays a protective role of safety when the nail machine breaks down or overloaded.this nail machine can feed the materials automatically.



Model	Unit	Z94-6C	Z94-5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C
Max. Dia. of Nail	mm	6	5.5	4.5	3.1	2.8	1.6
Min. Dia. of Nail	mm	4.1	2.8	2.8	1.8	1.2	0.9
Max. Length of Nail	mm	180	130	100	75	50	25
Min. Length of Nail	mm	100	50	50	30	16	9
Working Speed	Pcs/min	220	220	260	280	320	460
Working Speed	KW	10	5.5	4	3	2.2	1.5
Net Weight	KG	5500	2600	2000	1800	1450	1200
Demension	mm	3220x1838x1545	3200x2000x1700	2200x1600x1650	2000x1400x1400	1700x1300x1400	1500x1300x1200



Wire Nail Making Machine that we offer has the capacity to manufacture different types of nuts.We manufacture Wire Nail Making Machine using high grade cast iron, gum metal bushes and guiding plates to ensure high speed & longer functional life. We are named among the renowned Manufacturers, Exporters and Suppliers of Wire Nail Making Machine from Punjab,India.etc.We're all waiting for your early inquiry and feedback!
