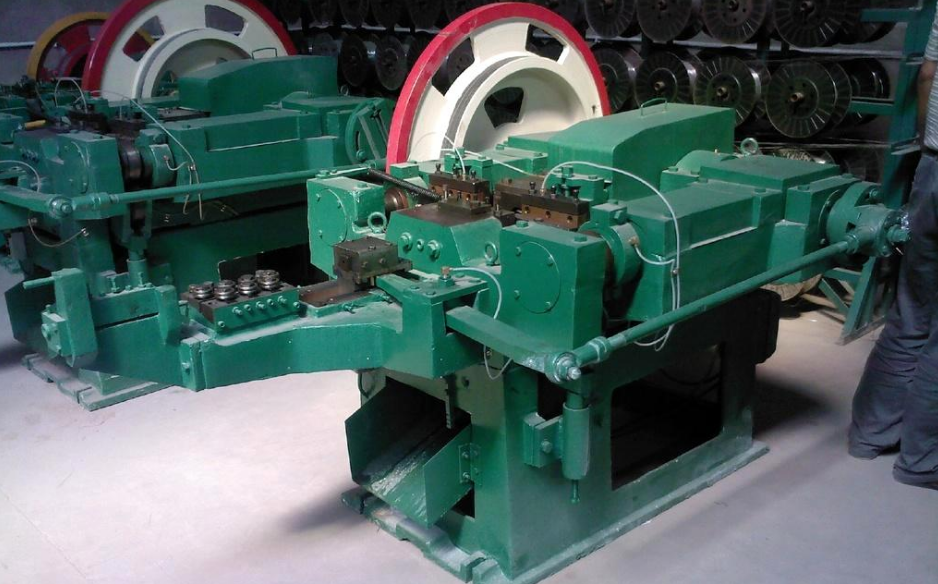

Automatic Wire Nail Making Machine is simple and sturdy in design, high output, easy to operate and long service life. All tools are easily accessible and can be quickly exchanged. Even an unskilled worker is able to easily operate this simple and highly efficient machine.



these machines have been tested under the most extreme conditions which has proved itself the utmost reliability even at its maximum capacity of 500 operations per minute.these machines can produce wooden nail concrete nail,roof nail and twist nail.these machines can produce nails from H.B. Brass,Copper,and Aluminum wire.Its main crank is directly driven by motor and the side shafts are driven by bevel gears to ensure correct and permanent adjustment of the cutting tools. The length and thickness of the nails is adjustable.

 Product parameters are as follows:

Model	Unit	Z94-6C	Z94-5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C
Max. Dia. of Nail	mm	6	5.5	4.5	3.1	2.8	1.6
Min. Dia. of Nail	mm	4.1	2.8	2.8	1.8	1.2	0.9
Max. Length of Nail	mm	180	130	100	75	50	25
Min. Length of Nail	mm	100	50	50	30	16	9
Working Speed	Pcs/min	220	220	260	280	320	460
Working Speed	KW	10	5.5	4	3	2.2	1.5
Net Weight	KG	5500	2600	2000	1800	1450	1200
Demension	mm	3220x1838x1545	3200x2000x1700	2200x1600x1650	2000x1400x1400	1700x1300x1400	1500x1300x1200

We offer our client an excellent quality range of Automatic Wire Nail Making Machines, which are manufactured from high grade quality raw materials. these Automatic Wire Nail Making Machines can be customized as per our precious customers specifications. these Automatic Wire Nail Making Machines are widely known for its durability and quality. Our Automatic Wire Nail Making Machines can be availed at industrial leading price.
