| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 Months |
| Certification: | ISO14009001 /SGS/CE/CCC |
| Weight: | 10T |
| Dimension(L*W*H): | 61m*4 m*5m |
| Voltage: | 380v 50Hz |
| Power(W): | 140kw |
| Model Number: | DN1850 |
| Brand Name: | DNUO |
| Place of Origin: | China (Mainland) |
| Production Capacity: | 1-10 m/min |
| Use: | Roof |
| Tile Type: | Colored |
| Type: | Tile Forming Machine |
| Condition: | New |
| Operation staff: | 3-6 people |
| Name: | High speed automatic FRP fiberglass roofing sheet making machine |
| Color: | Demand |
| Application: | Building Materials Machinery |
| Raw materials: | fiberglass+film+resin |
| Main process: | continous forming |
| Use: | automatic roofing panel making machine |
| Materials: | High Strength Steel |
| Features of machine: | Mutil-function |
| Product name: | frp sheet |
Quick Details
Specifications

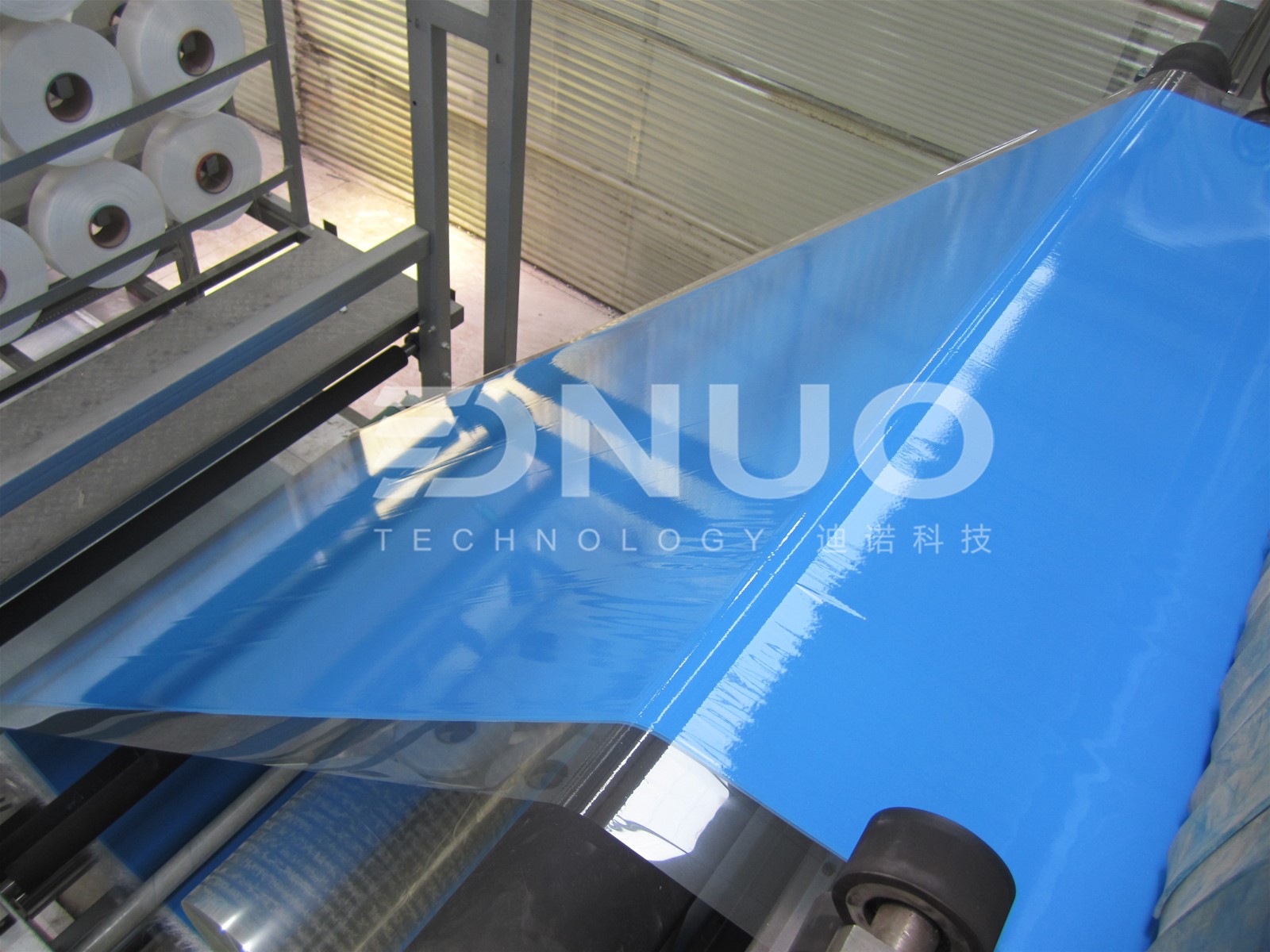

Machine function
this production line can Produce lighting sheet, color sheet, common flat sheet, gel coat sheet.
BASIC PARAMETERS | |||
Operation Staff |
4-7 People |
Speed of Production |
2-12 m/min |
Sheet width |
Maximum Effective width 1500 mm |
Thickness of Sheet |
0.2-4mm |
Main Dimension of equiment |
61m*4m*5m, |
Power Requirement |
140KVA |
Power Consumption |
Actual consumption is 50KVA/h | ||
Upper gel Coat |
61m(L)×4(W)×5m(H) | ||
Lower gel Coat |
71m(L)×1.85(W)×3.5m(H) | ||

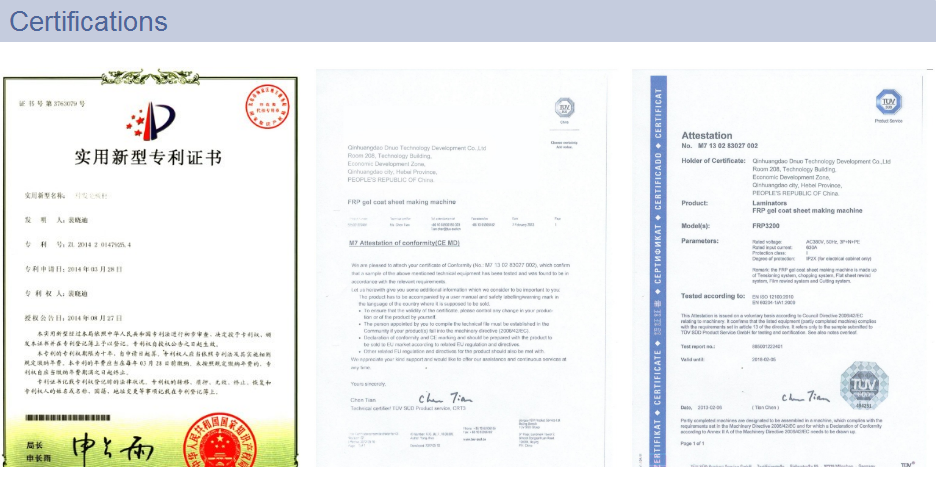

Certification |
EU Certification, certified model FRP3200 | ||
Number of Certificate |
No.M7, 1302, 8307, 002 | ||
Machine Characteristics
1, Apply high precision import forging doctor Blade, smaller error, Thin & even gel coat coating.
2, Gel coat curing area apply clip flatten Roller designed by Dnuo technology company, easy operation & good Tensioning effect.
3, the impregnation table can control Temperature independently & accurately. It can adapt to the outside Temperature fast, impregnation fast and improve the production speed Effectively.
4, Pulse free metering system, accurate metering, and Wide flow rate adjustment range. It can add powder filler.
5, Easy operation based on PLC intellectual Control system. Operate by two computers, the production task and equipment Operating data is faster and intuitional. Only short-term training can make Operators complete production independently.
6, Three separate ovens for temperature Control, Unique temperature control arithmetic makes oven heating fast, Temperature control precise. Which improve quality of products, reduce energy Consumption and shorten the preparing time effectively. this way makes sheets Curing better.
7, Metering control system and Roving chopper Speed can be synchronous with the production line.
8, Special cross cutting machine and good Synchronization performance make cutting accurately..
9, All the machine parts adopt international Standard steel make machine with high stability.
10, System failure can be automatically alarmed and show Fault point. Make maintenance easily.
11, Particular parts adopt special purpose wire, durable in use.
12, Size and layout of machine can be made according to Customer requirements
13, Electric system adopt siemens brand.
