| Type: | Filling Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Weight: | 2000KG |
| Dimension(L*W*H): | 1520*810*2000 |
| Brand Name: | DBS |
| Place of Origin: | China (Mainland) |
| Power: | AC 380V |
| Voltage: | AC 380V |
| Driven Type: | Hydraulic |
| Automatic Grade: | Automatic |
| Packaging Material: | Aluminum composite foil |
| Packaging Type: | Pouch |
| Application: | Chemical |
| Condition: | New |
| Application: | silicone,pu sealant sausage |
Quick Details
Specifications

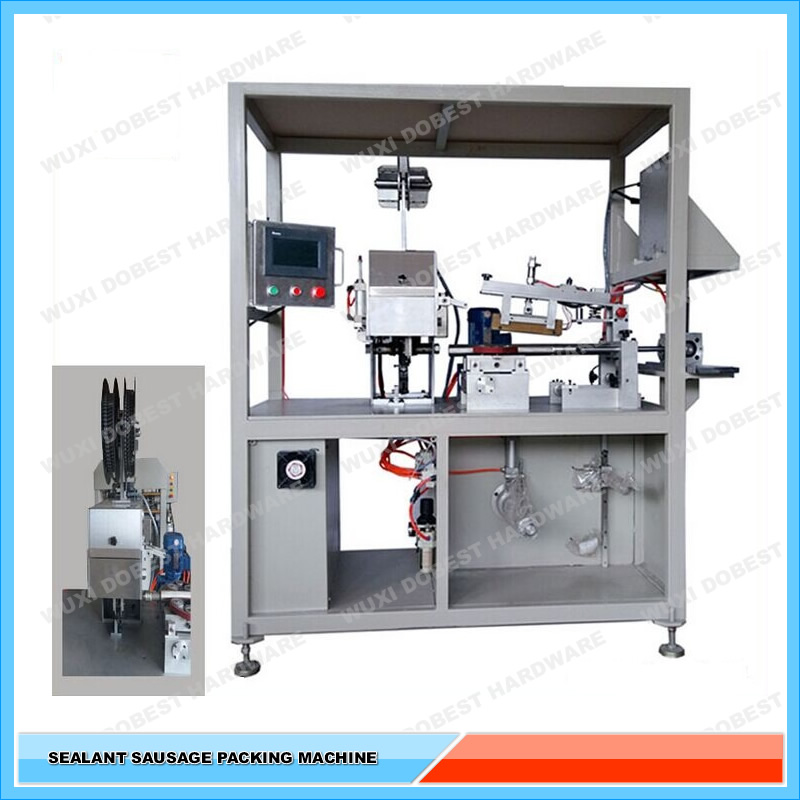

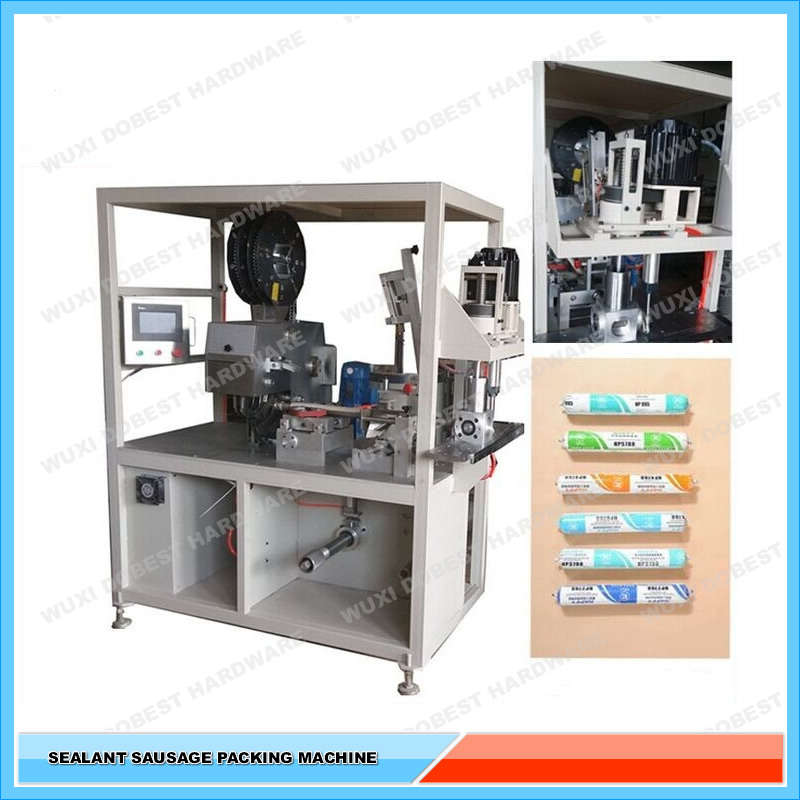

Automatic Filling Machine for 600ml Silicone Sausage Sealant:
Brief introduction of structure:
the double-card sealing machine is controlled by import PLC and mainly composed of a machine base, a machine body, a discharging device, a gas circuit system, an operation device, a silk plate support, etc.
Main technical parameters:
1. Boundary dimension: length*width*height=1520*810*2000 (mm);
2. Total weight: around 280kg;
3. Height from card punching centre to the ground: 1000-1020mm;
4. Card punching speed: 15-40t/min;
5. Power: three-phase AC 380V;
6. Gas source: working pressure: 0.40-0.8Mpa;
7. Gas consumption: 0.01m3/min;
8. Applicable card type: Great Wall Card
9. Applicable range: fold diameter: 25-50mm
