DW-C60

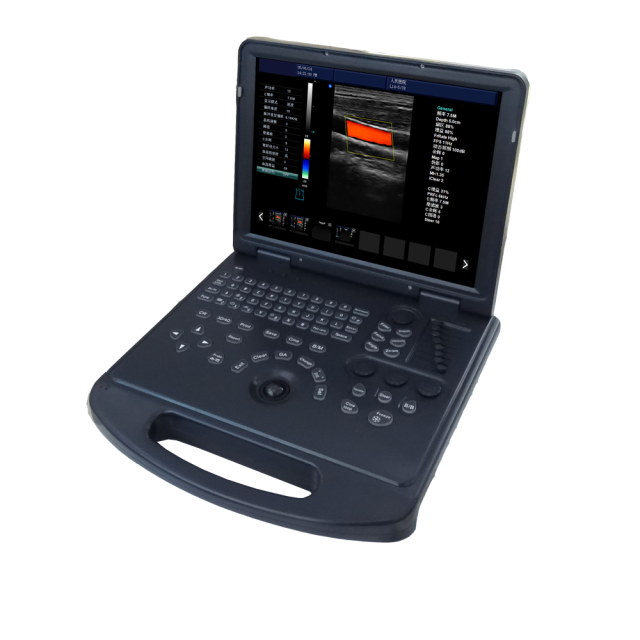

LAPTOP COLOR DOPPLER ULTRASONIC SYSTEM

Display Mode:

Black and white image: B, 2B, 4B, left B | M, B | D, PW, M, B partial enlarged mode

Bloodstream image: Spectrum: B / D, B / C / D CFM: B | C | D, B | C | M, B | C

Pairs in real time, PW, CFM, CPA

Color flow image adjustment parameters: a Doppler frequency, sampling frame

Position and size, baseline color gain, the deflection angle, the wall filter, the

Cumulative frequency.

Display depth:Continuously adjustable

Focus:

Electronic focus + Acoustic lens focus

Launch with a single focus, bifocal, trifocal and four focus work

Receiving continuous dynamic focusing

Signal processing / Doppler sound:

Dynamic Filtering

Quadrature demodulator

the total gain adjustment

Composite Gain Technology: 8-segment TGC and D-AGC

B -, C -, D-, respectively, the total gain is adjustable

Low pass filter

Subsample

Emitter voltage regulation

Doppler tone adjustable stereo output

Image processing:

Logarithmic conversion and dynamic range compression

Temporal filtering

Spatial filtering

Frame correlation

Edge Enhancement

Grayscale conversion

B | M or M -type scanning speed

Line density control

Scan angle / width control

Image optimization

Flip the image around

Image upside down

Flip the image in black and white

Multi-angle image rotation

Choose a color grayscale inversion Article

Tissue blood flow images and image processing complex

Black and white image resolution 1024 × 768 × 8bit (256 gray levels )

Color Image Resolution 1024 × 768 8bit × 8bit × 8bit color coding

Specialist image selection ( optional ):

Select the abdomen: liver, gall bladder, spleen, kidney, pancreas subjects

the basic measurement and calculation functions:

B -mode basic measurements: distance, angle, perimeter and area ( ellipse method,

Track method ), volume histograms, cross section

M -mode basic measurements: heart rate, time, distance, speed

Obstetric measurement and calculation functions:

Obstetric report

Measurement of amniotic fluid index calculation (AFI)

Calculated ratio (BPD / OFD, FL / AC, FL / BPD, HC / AC)

Estimation of fetal weight

by the LMP, BBT projections gestational age and expected date function

Fetal physiology score (Fetal Biophysical Score)

Fetal growth curve

Andrology measurement and calculation functions:

Prostate, testicular and other measurements to calculate

Prostate -specific antigen predicted PPSA, prostate specific antigen density calculated

PSAD

Gynecological measurement and calculation functions:

Uterus, left ovary, right ovary, left follicle, the follicle and other measurements to

Calculate the right

Urology measurement and calculation functions:

Left kidney, kidney, bladder, residual urine volume (Residual urine vol) and other

Measurements to calculate

Peripheral vascular measurement and calculation functions:

Area stenosis, diameter stenosis measurement and calculation

Small organ measurement and calculation functions:

Thyroid, breast, and other measurements to calculate mass

Orthopaedic measurement and calculation functions:

Left hip, right hip measurement

Cardiac function measurement and calculation:

Heart measurement software package - providing heart rate, speed, left ventricle,

Aortic, mitral, ventricular ( right / left ventricle ) and other analytical measurement

Methods

Area stenosis percentage (% Area Sten), percentage diameter stenosis (% Diam Sten)

Body surface area BSA

Display information:

Probe information, display mode, the depth of focus, the dynamic range of standard

Body, the probe position mark, sound power, patient information, medical institution

Name, the measurement value, time and date, the scale, the scanning direction,

Gamma curve, the probe current work

Frequency, frame rate, B mode overall gain, C mode overall gain, D model of the

Total gain, menus, comments, gray belt, puncture guide line, PRF, wall filter, blood

-related, cumulative frequency, TI heat index, MI machinery index

Storage function:

Probe parameter storage

Image Storage

Cine storage

Measurement results are stored

Report storage

Grayscale:256 gray

Interface Language:Optional English

Trackball function:

According to the working status and menu execution, completion of various

Operating functions

Control multiple electronic device, position the cursor, complete the measurement

Function

Options:

3.5Mhz convex probe, 6.5Mhz trans-vaginal probe, 7.5Mhz Linear

Probe, Phased array probe, Volume Probe, DICOM 3.0
