| After-sales Service Provided: | No overseas service provided |
|---|---|
| Certification: | ISO 9001 |
| Brand Name: | PULLNER |
| Condition: | New |
| Weight: | 3 kgs |
| Dimension(L*W*H): | 1.2m x 0.18m x 0.18m |
| Model Number: | PHFM |
| Place of Origin: | China (Mainland) |
| Micron: | 1um, 2um, 5um, 10um, 20um, 50um, 100um |
| Length: | 20", 40", 60" |
| OD: | 6.5" |
| Material: | PP, GF, PET |
| MOQ: | 1 piece |
| Sample: | Free |
| OEM: | YES |
| Factory: | Shanghai China |
Quick Details
Specifications

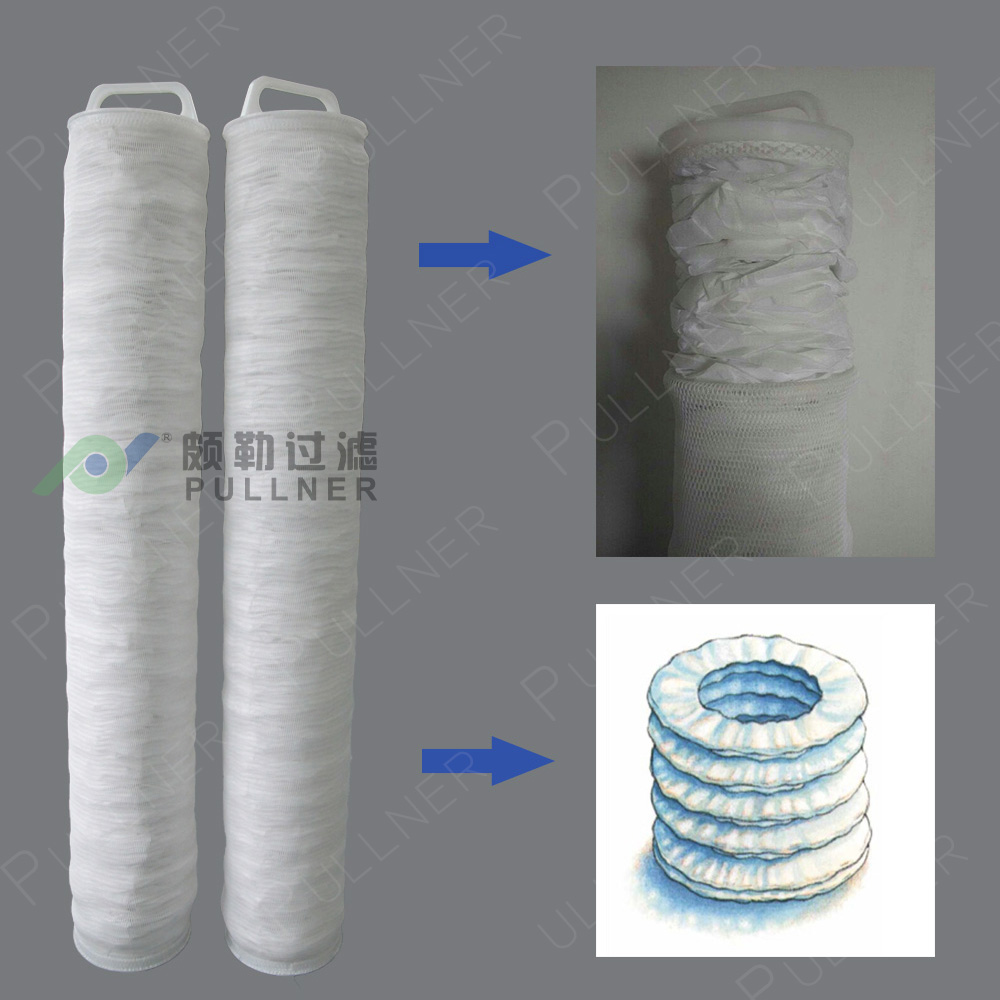

Factory sales Max Flow Filters for RO Pre-filtration
Application:
RO Pre-filtration, desalination pretreatment;
Power Plant condensation water filtration;
Biopharmaceutical Industry pharmaceutical raw materials, solvents, water filtration;
Food and Beverage process water treatment;
Performance Specifications
Dimensions(nominal)
OD |
6.5"(165mm) |
Length |
20",40", 60" |
Material of Construction:
Model |
Filter Media |
Support/Drainage |
End Caps |
Seals Material |
PP |
Deep pleated Polypropylene |
Polypropylene |
Glass Fiber Reinforced Polypropylene |
NBR, EPDM, Viton
|
GF |
Glass fiber/polyester |
Polyester |
Glass Fiber Reinforced Polypropylene |
Filter Performance
Micron |
1m, 3m, 5m, 10m, 15m, 20m, 50m, 70m |
Maximum Operating temperature |
82 |
Maximum Operating differential pressure |
3.44bar@82 |
Suggestion Pressure for filter replacement |
2.5Bar@20 |
Suggestion Max. Flow rate |
20": 35m3/h |
40": 70 m3/h | |
60": 110 m3/h |
