| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO9001 |
| Max Digging Radius: | 6600mm |
| Machine Weight: | 8.3 tons |
| Maximum Digging Depth: | 4060mm |
| Maximum Digging Height: | 7000mm |
| Bucket capacity: | 0.5m3 |
| Operating Weight: | 8.5 tons |
| Moving Type: | Crawler Excavator |
| Condition: | New |
| Model Number: | BD90-9 |
| Brand Name: | BAODING |
| Place of Origin: | China (Mainland) |
| Color: | yellow |
| high speed: | big bucket |
| lower oil consumption: | competitive price |
Quick Details
Specifications

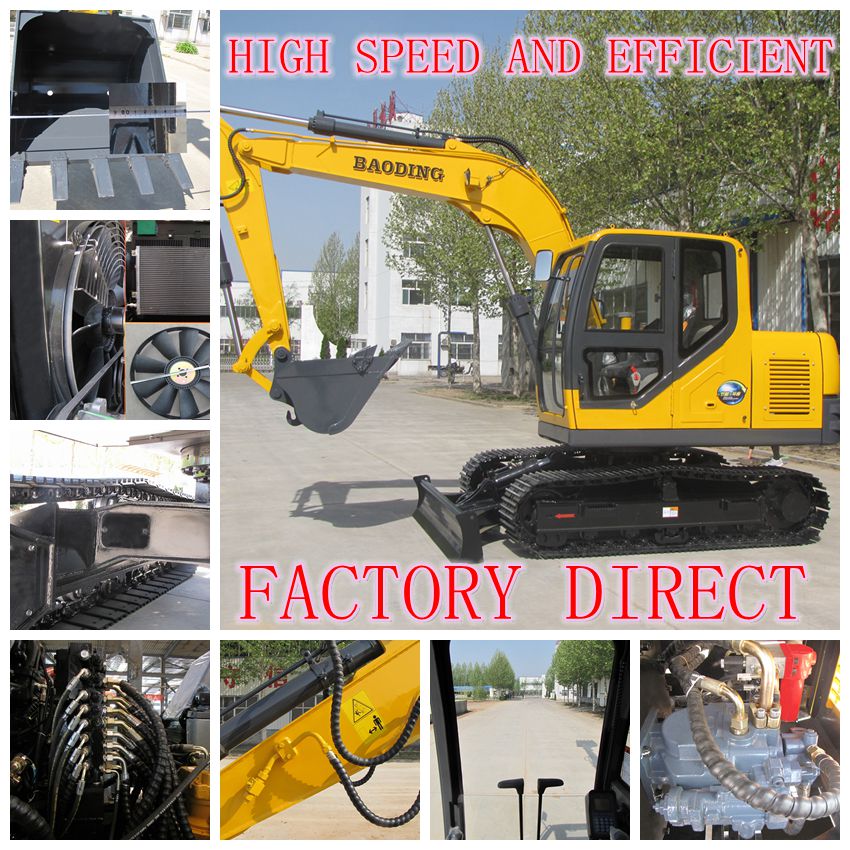

High speed small crawler excavator BD90 new excavator machine
Other excavators:
Overall dimensions | |
Overall Length |
6580mm |
Overall Height ( to top of cab) |
2650mm |
Overall Width |
2200mm |
450mm | |
Tail swing radius |
1955mm |
Grounding length of crawler |
2200mm |
2190mm | |
Min. Ground clearance |
355mm |
Length of movable arm |
3750mm |
Length of bucket arm |
1750mm |
Track gauge |
1750mm |
Working ranges | |
Digging force of bucket |
57.8kn |
Digging force of bucket arm |
42.8kn |
Max. Digging radius |
6600mm |
Max. Digging depth |
4060mm |
Max. Digging height |
7000mm |
Max. Dumping height |
5000mm |
Technical specifications | |
Operating weight |
8.5T |
Bucket capacity |
0.5m3 |
Engine model |
Yuchai/Cummins |
Type |
4 cylinders water cooling DI |
Capacity |
4.2L |
Power output |
60KW/2200rpm/82Hp |
Travel speed |
3.2-5.2km/h |
Grade ability |
350 |
Main pump type |
|
Max. Discharge flow |
198L/min |
Swing speed |
0-12r/min |
Fuel tank |
160L |
Hydraulic gasoline tank |
160L |
