Product Main

Quick Details

Place of Origin: China (Mainland)
Model Number: TS-CJ42-DR
Brand Name: Les Avedon
Processor Main Frequency: 1.8GHZ
Optical Drive Type: Blu-ray Combo
Display Type: LCD
Graphics Card Type: Integrated Card
Hard Drive Capacity: 500GB
Processor Brand: Intel
Screen Size: 42''
Type: All-In-One
Products Status: Stock
Resolution: 1920*1080
Touch points: 10 Points
Touch screen response time: 10ms
Color: White
OS: Window
Brightness: 450cd/m2
CPU: Intel i3
Hard disk: 120G solid state drives
RAM: Kingston 4GB
Display size: 937.2*533 mm

Specifications

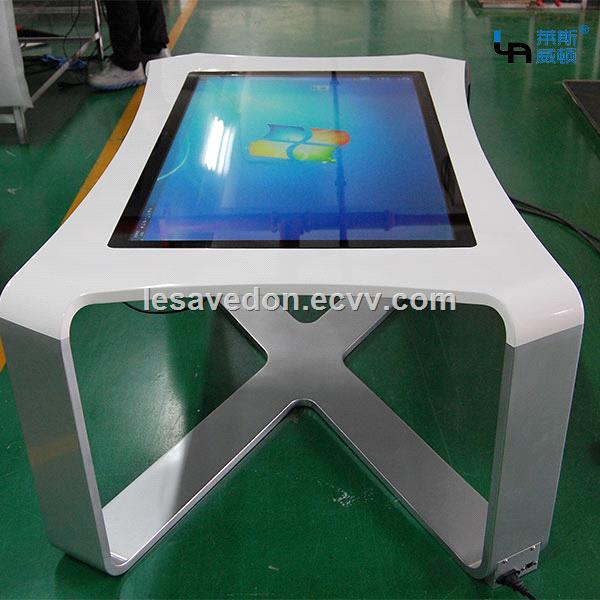

Products view of front.
LASVD 42 Interactive table with glass top Capacitive Touch Screen Allinone coffee table

below are product's main features and specs.
LED panel Parameters
LCD
Brand new original LCD screen
Screen Type
42 inch LCD
Ratio
16:09
Contrast Ratio
1400:1
Response Time
8ms
Physical resolution
1920x1080/60Hz
Display size
937.2(H)×533 (V) (mm)
Color
16.7M
Brightness
450cd/m2
Panel Life
>60,000(hrs)
Viewing Angle
H170°/V160°
Touch Screen Parameters
Touch Mode
Embedded capacitive touch technology
Touch Point
Ten points
Touch resolution
32767*32767
Light-resistant
≥100000LUX, under the fluorescent lamp working
Response time
≤10ms
Waterproofing grade
IP65
Error-tolerant rate
10%
Touch surface material
Black Tempered Glass
Write Method
Finger
Operating voltage
Input: AC110-220V
Power supply
USB
Software suport
TUIO protocol,Windows Multi-point control protocol
System Campatibility
Windows7/Windows8/Windows10/XP/Android4.4X
Measurement of drift
Drift does not change with the environment.
Service life
over 8 years
Number of touch
Single click touch life over than 60 million times
Repair rate
0.3 percent
Hardware Parameters
CPU
Intel i3
Mainboard
Industrial personal computer mainboard
Mainboard chip
Intel NM10 high-speed chipset
Hard disk
120GB SSD
RAM
Kingston 4GB
Graphics card
Intel graphics media accelerator nuclear
Audio card
Integrated 6.1 channels HD Realtek ALC622 audio card
Network card
100M Onboard NIC/WiFi wireless network card
Keyboard and mouse
USB
HDMI interface
the onboard 1080P HD interface
Loudspeaker
2*10W
Machine Parameters
Specialty
without external wiring, mode, three-dimensional surround with built-in, support a variety of sound patterns
Receiving formats: PAL/NTSC, small volume, low power consumption, strong function, support separately display and extension mode
Features
the stability of the height will not drift because of time and environment change.
the High degree of adaptability will not be disturbed by the current,voltage and also by the static electricity,can be suitable for some harsh environmental conditions.
High light penetration without intermediate medium and the high pervious to light can up to 100%.
the good features touch is used without efforts which has no special requirements. No matter touch things are hard, conductive or not, do not affect the normal use.
Other property
No drift touch screen (handwritten), support a variety of formats HD digital TV, bring their own picture in picture function. (TV can work independently, without start computer watch TV).
Input/Output interface
HDMI port* 1
VGA port* 1
Audio input/output port(for Sound Box)* 3
DVI port* 1
USB 2.0 port* 4
USB 3.0 port* 2
Ethernet port* 1
Audio input/output port(for computer)* 2
HDD interface* 1
Ramdon accessory
Manual*1 (including the warranty card), certificate of approval*1, the power cord*1,WiFi receiver*1,key*2
Shell material
Aluminum alloy wire drawing
