Type: | Filling Machine |
---|---|
After-sales Service Provided: | Engineers available to service machinery overseas |
Certification: | CE/ISO9001 |
Weight: | 450KG(only for main machine) |
Dimension(L*W*H): | (L)1458*(W)920*(H)1392mm (only for main machine) |
Model Number: | VP42 |
Brand Name: | Baopack |
Place of Origin: | China (Mainland) |
Power: | 5.459KW |
Voltage: | 380V,50HZ |
Driven Type: | Pneumatic |
Automatic Grade: | Automatic |
Packaging Material: | Paper,Plastic |
Packaging Type: | Bags,Pouch,Stand-up Pouch |
Application: | Beverage,Chemical,Commodity,Medical,Textiles |
Condition: | New |
Quick Details
Specifications
Factory Price Granule Packing Machine Pillow Bag for Potato Chip
the major performance and structural features:
1:Advanced design for complete machine, reasonable structure, convenient adjusting operation and maintenance;
2: standard positioning with servo film transporting system; stable for transporting film with two synchronous belts;
3: high automatization with auto correction function;* minimize the consumption with multiple kinds of auto warning protection function
4:supported by metric device, the machine can automatically complete all packing processes from measuring, feeding, filling.
Range of configuration:
the machine can be supported by auto weighing machine, meter glass dosing machine, manual batch conveyor and spiral dosing machine. It has an extensive range of package, suitable for packing of each kind of item such as grains,
Blocks, bars and powder, etc
the whole packing system technical specification:
Product name |
Factory outlets Bags packing machine for popcorn |
Item |
Content |
Capacity |
60 bag/min,it is according to quality of wrapping and supplies |
Accuracy |
≤±1.5% |
Bag size |
(L)60-300mm (W)60-200mm |
Film width |
420mm |
Bag type |
Pack with film, upper seal, lower seal and back seal by automatic bag making machine. |
Filling range |
150-1300ml |
Film thickness |
0.04-0.09mm |
Package material |
BOPP/CPP,PET/AL/PE thermal composite material., likeBOPP/CPP, PET/AL/PE etc |
Air consumption |
0.8Mpa 0.5m3/min |
Total powder |
5.495KW |
Voltage |
Four wire three phase 380V 50HZ |
Air compressor |
Not less than 1 CBM |
Total height |
3.358 m |
Technical parameter:
Items | Content |
Capacity | 50 bag/min |
Bag size | (L)60-300mm (W)60-200mm |
Bag type | Pillow-type bag,standing bag,punch |
Max packaging film width | 420mm |
Thickness of film | 0.04-0.09mm |
Air consumption | 0.8Mpa 0.5cmb/min |
Main power/voltage | 2.2KW/220V 50HZ |
Dimension | L1458*W920*H1392mm |
the weight of switchboard | 480kg |

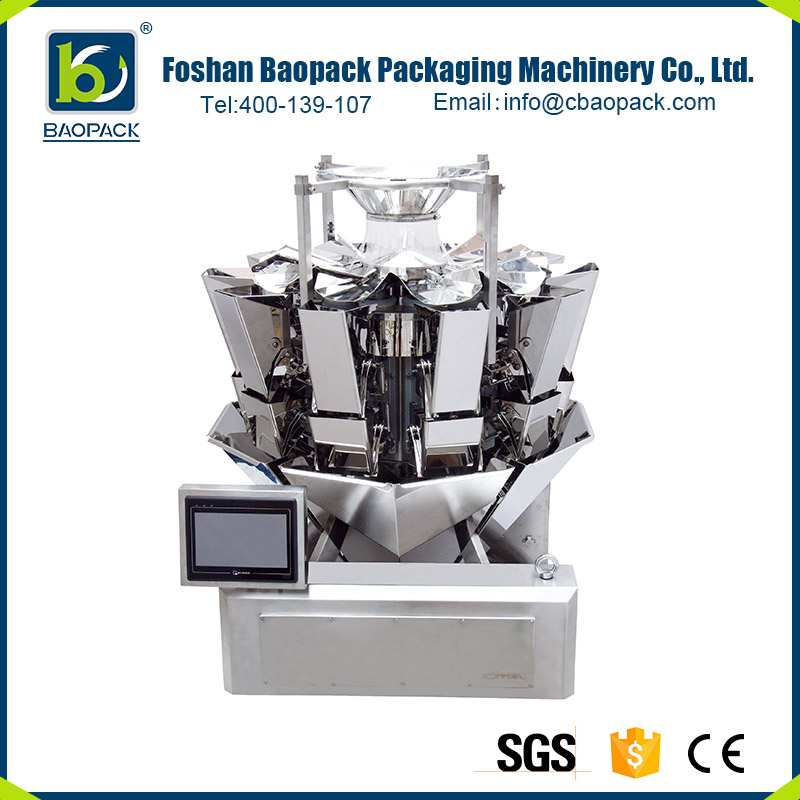

Main Features:
1: Original program can be restored.
2: Easy cleaning and maintenance with clean function, all hoppers can stay open
3: Piece counting function
4: IP65 certificate
5: Unqualified weight reject
6: Step motor angle can be set according to different product
7: 99 program can be preset
8: Stagger dump prevents products blockage
Special Features:
1:Modular electronic system makes function expanding and maintenance easier and at lowest cost
2: Professional A/D card with high accuracy and stability. Interchange is available
3: HMI program with different authority management more user-friendly
4: HMI program can be upgraded by U-disk
Specifications:
Model | M10L1.6 | M10L2.5 |
Max. Max.Cap.(g) | 10-1500g | 10-3000g |
Weighting Accuracy | ±0.1-1.5g | ±0.1-2g |
Weighting speed | 70WPM | 70WPM |
Hopper Capacity | 1.6L | 2.5L |
Control system | MCU |
Operation Panel | 7 inch touch screen |
Power Supply | AC220V ±10%, 50HZ(60HZ) 1.5KW |
Packing Dimension | 1100(L)x1100(W)x1780(H)mm |
Net weight | 388KG |
Packing weight | 420kg |

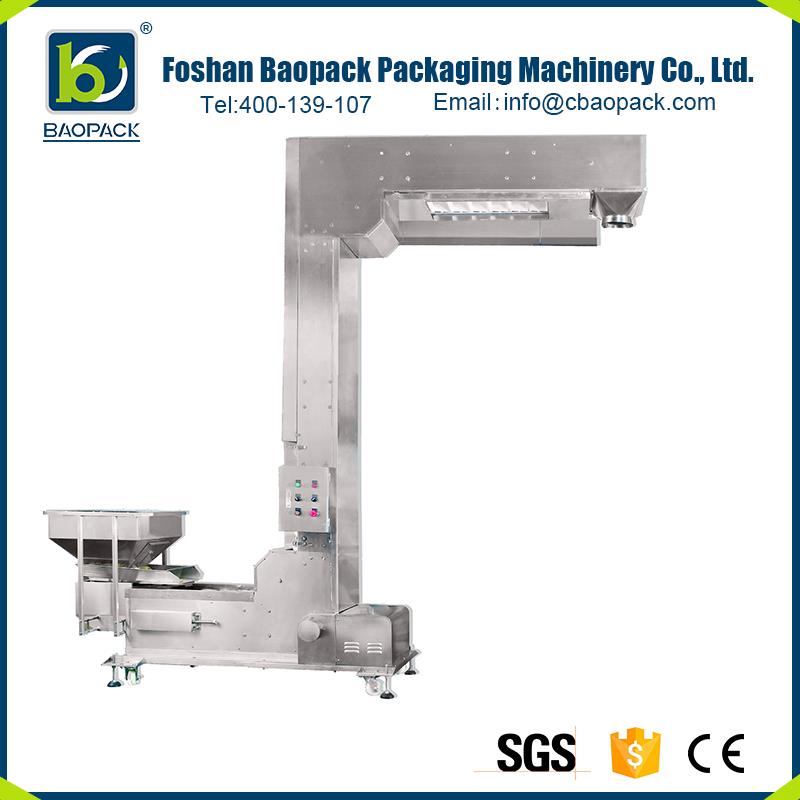

Features:
the conveyer is applicable for vertical lifting of grain material in departments such as corn, food,Fodder and chemical industry, etc.for the lifting machine, the hopper is driven by the chains to lift. It's used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.
Specification:
the highness of lifting | 3m-10m |
Speed of lifting | 0-17m/minute |
Lifting quantity | 5.5CBM/hour |
Power | 750W |
Voltage | 380V |
Specification customized; material: carbon steel plastic-spray or stainless steel; the part contacting with food is food grade plastic.

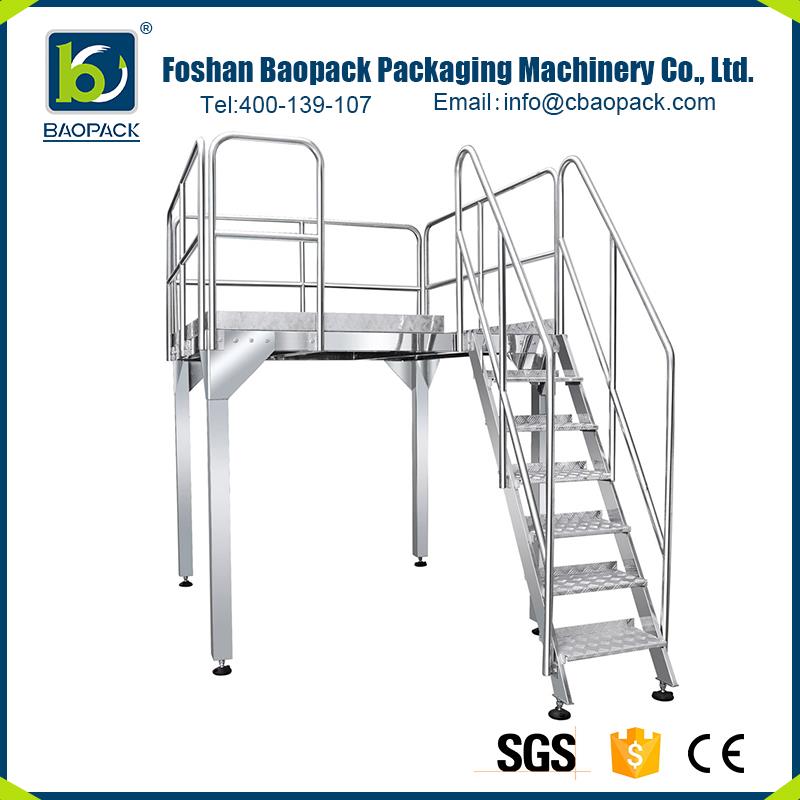

Feature:
the supporting platform is solid will not affect the measurement accuracy of the combination weigher.in addition, the table board is to use the dimple plate, it is more secure, and it can avoid slipping.
Specification:
the size of the supporting platform is according to the type of the machines.
Features:
the machine can send the packed finished bag to after-package detecting device or packing platform.
Specification:
Lifting height | 0.6m-0.8m |
Lifting capacity | 1cmb/hour |
Feeding speed | 30m/minute |
Dimension | 2110x340x500mm |
Voltage | 220V/45w |
