Warranty: | 1 Year |
---|---|
Certification: | ISO, CE |
Model Number: | STM-18-12 |
Brand Name: | Sante |
Place of Origin: | China (Mainland) |
Condition: | New |
Quick Details
Specifications
Specifications:
Main fearures:

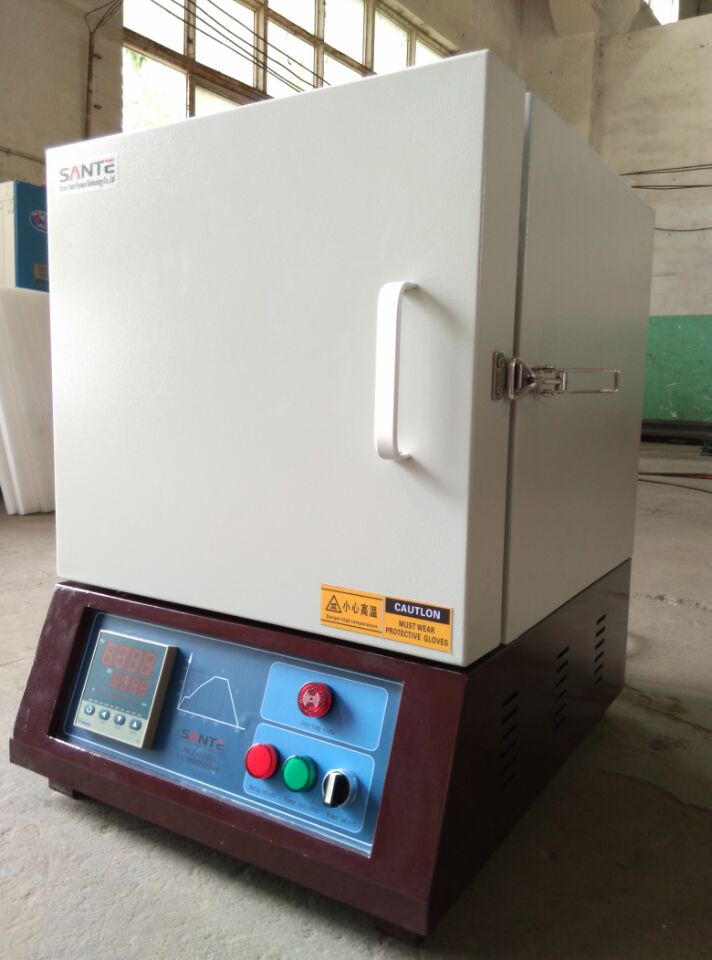

1. Furnace chamber is made of vacuum-formed Al2O3 ceramic fiber materials, no powder dropping off under high temperature, low heat capacity, and high efficiency of energy saving.
2. Dual-layer body structure, lower external temperature.
3. Microcomputer PID control module enables precise temperature control and constant temperature requirements.
4. SCR temperature contrOller with 2 groups/16 segments programmable, and is avaiable to set temperature curve.
5. with over-temperature alarm and electrical leakage protection
Inner Chamber Size |
250(W)*300(L)*250(H)mm Capacity: 18 liters (Available more customized sizes) |
Max. Temperature |
1200c |
Continuous Operating
Max. Temperature |
1150c |
Heating Rate | 0~30 c/min |
Heating Element |
Resistance wires |
Temperature Control |
SCR controller and PID parameter self-setting |
Display Accuracy | ±1 deg.C |
Voltage |
AC 380V, 50/60Hz |
Power |
5 kw |
Thermocouple | S type |
Standard Accessory |
High temperature gloves 1 pair, crucible tong 1pc |
Main fearures:
1. Furnace chamber is made of vacuum-formed Al2O3 ceramic fiber materials, no powder dropping off under high temperature, low heat capacity, and high efficiency of energy saving.
2. Dual-layer body structure, lower external temperature.
3. Microcomputer PID control module enables precise temperature control and constant temperature requirements.
4. SCR temperature contrOller with 2 groups/16 segments programmable, and is avaiable to set temperature curve.
5. with over-temperature alarm and electrical leakage protection
