After-sales Service Provided: | Engineers available to service machinery overseas |
---|---|
Warranty: | 1 Year |
Brand Name: | Sante |
Usage: | Heat Treatment Furnace |
Condition: | New |
Certification: | ISO, CE |
Dimension(L*W*H): | 600x800x600 mm |
Model Number: | STD-288-12 |
Place of Origin: | China (Mainland) |
Type: | Resistance Furnace |
Quick Details
Specifications
Main features:
1. Furnace chamber made of high purity alumina ceramic fiber materials, no powder dropping off under high temperature.
2. Insulation material with low heat capacity, and high efficiency of energy saving. Dual-layer housing structure. Low temperature in external environment.
3. High heating rate with15~30 c/min.
4. Microcomputer PID control module enables precise temperature control and constant temperature requirement.
5. Temperature controller is programmable with 2 groups/16 segments, and avaiable to set temperature curve.
6. over-temperature alarm: when temperature exceeds the limit value, machine will start an alarm with sound&light and stop heating.
7. with electricity leakage protection for safety and reliabity
OPtional furnace door designs:
1)Side opening door
2) Door moving parallelly to the front face
3) Door moving up
Models:

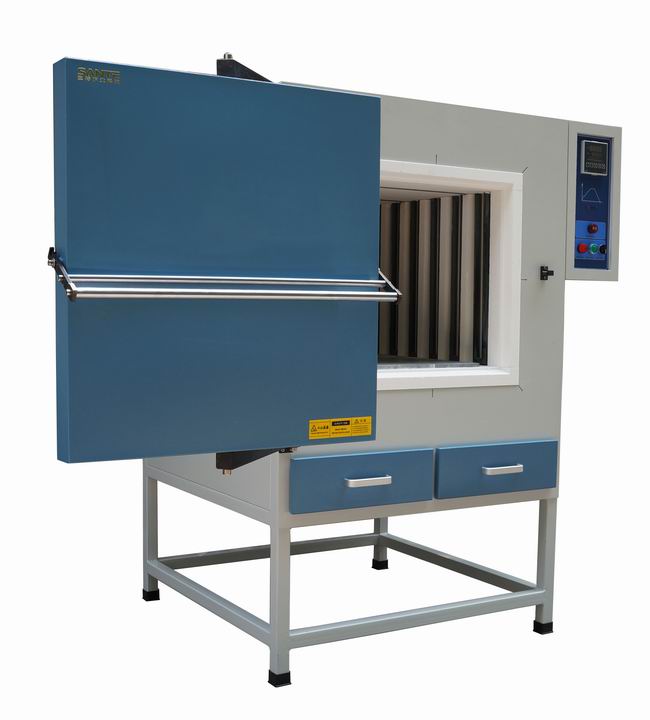

Reference picture:
1. Furnace chamber made of high purity alumina ceramic fiber materials, no powder dropping off under high temperature.
2. Insulation material with low heat capacity, and high efficiency of energy saving. Dual-layer housing structure. Low temperature in external environment.
3. High heating rate with15~30 c/min.
4. Microcomputer PID control module enables precise temperature control and constant temperature requirement.
5. Temperature controller is programmable with 2 groups/16 segments, and avaiable to set temperature curve.
6. over-temperature alarm: when temperature exceeds the limit value, machine will start an alarm with sound&light and stop heating.
7. with electricity leakage protection for safety and reliabity
OPtional furnace door designs:
1)Side opening door
2) Door moving parallelly to the front face
3) Door moving up
Models:
Model | Volume | Chamber size WLH |
Max. Temperature |
Operating temp. | Voltage | Heating element | Temp. Accuracy |
STD-96-12 | 96L | 400600400mm | 1200c | 1100c | 380V | Resistant wire | 1c |
STD-288-12 | 288L | 600800600mm | 1200c | 1100c | 380V | Resistant wire | 1c |
STD-640-12 | 640L | 8001000800mm | 1200c | 1100c | 380V | Resistant wire | 1c |
STD-1200-12 | 1200L | 100012001000mm | 1200c | 1100c | 380V | Resistant wire | 1c |
STD-2160-12 | 2160L | 120015001200mm | 1200c | 1100c | 380V | Resistant wire | 1c |

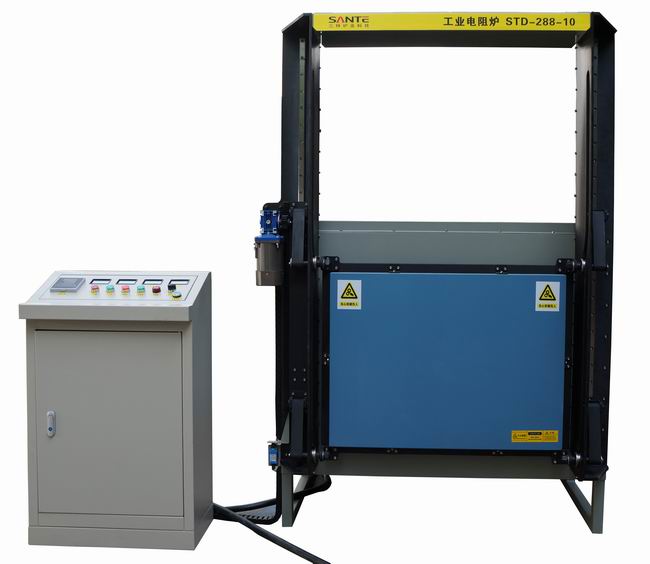

Reference picture:
