| Place of Origin: | China (Mainland) |
|---|---|
| Special Feature: | Portable |
| Channels: | powered speaker |
| Use: | Home Theatre,Stage |
| Type: | Active |
| Model Number: | PRX615M |
| Brand Name: | Skytone |
| Frequency Response: | 54Hz-100Hz |
| Power Rating: | 550W/1100W |
| Impedance: | 8ohms |
| Sensitivity: | 92dB |
| Maximum SPL: | 129dB |
| Dimension: | 660*429*414mm |
| Net weight: | 35kg |
Quick Details
Specifications
PRX615M 15inch speaker box and loudspeaker sound systems equipment
15inch speaker box
Speakers and loudspeaker
Sound systems equipment
Dj sound system
Overview of PRX615M 15inch speaker box sound systems equipment.
the 2-way 15inch is the most recognizable form of the portable PA loudspeakers and offers the perfect balance between size and performance. the PRX615M truly is an exception. It's small, light weight, versatile and powerful.

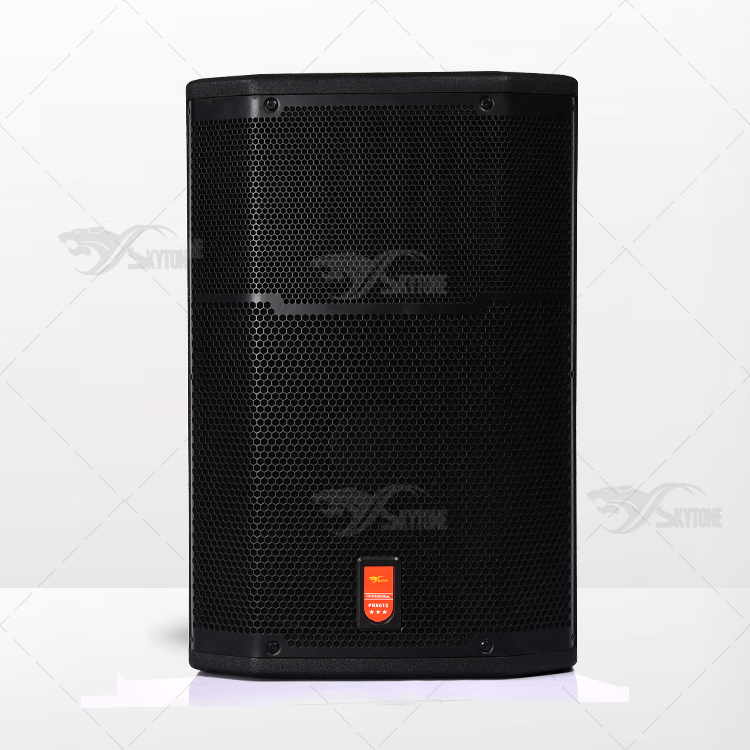

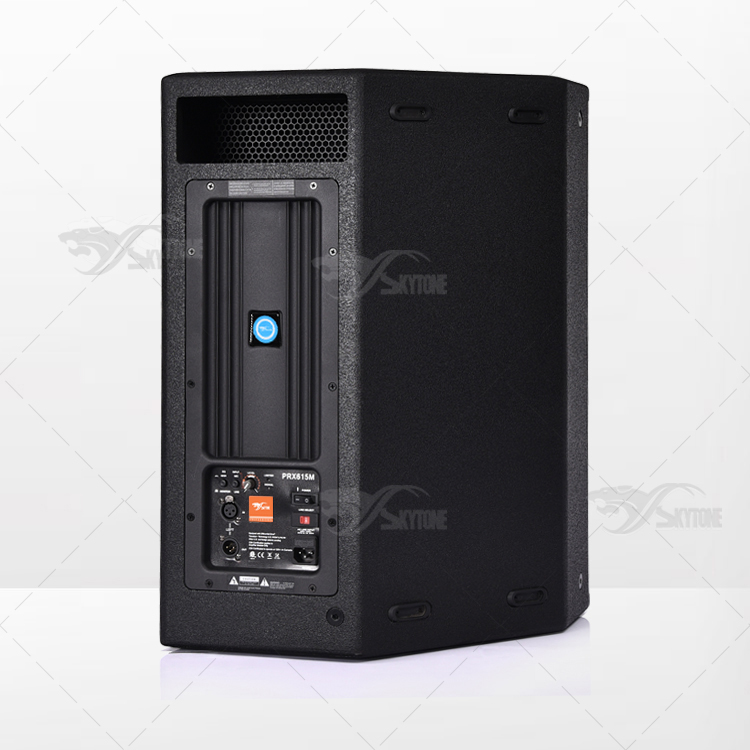

Real photos of the PRX615M 15inch speaker box sound systems equipment:
Advantage of the PRX615M 15inch speaker box and sound systems equipment:
1. Maximum SPL output 135dB peak
2. 380mm (15inch) top quality ferrite magnet aluminum frame woofer
3. 44mm (1.7inch) ferrite magnet compression driver
4. 650Watt class-D digital amplifier
5. DSP input section with limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
6. Professional XLR line and 1/4 in Mic/instrument inputs with loop through
7. Integrated 36mm dual-angle pole mount socket
8. America imported environmental polyurea coated plywood construction
9. Large glass filled nylon handlebar with a fine tuned ergonomic rubber grip for maximum comfort
10. 8M10 suspension points and 1 pullback point
Specification of PRX615M 15inch speaker box and loudspeaker sound systems equipment:
Hope we have honor to serve you in the near future.
15inch speaker box
Speakers and loudspeaker
Sound systems equipment
Dj sound system
Overview of PRX615M 15inch speaker box sound systems equipment.
the 2-way 15inch is the most recognizable form of the portable PA loudspeakers and offers the perfect balance between size and performance. the PRX615M truly is an exception. It's small, light weight, versatile and powerful.
Real photos of the PRX615M 15inch speaker box sound systems equipment:
Advantage of the PRX615M 15inch speaker box and sound systems equipment:
1. Maximum SPL output 135dB peak
2. 380mm (15inch) top quality ferrite magnet aluminum frame woofer
3. 44mm (1.7inch) ferrite magnet compression driver
4. 650Watt class-D digital amplifier
5. DSP input section with limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
6. Professional XLR line and 1/4 in Mic/instrument inputs with loop through
7. Integrated 36mm dual-angle pole mount socket
8. America imported environmental polyurea coated plywood construction
9. Large glass filled nylon handlebar with a fine tuned ergonomic rubber grip for maximum comfort
10. 8M10 suspension points and 1 pullback point
Specification of PRX615M 15inch speaker box and loudspeaker sound systems equipment:
| Model | PRX615M |
| System Type | Self powered 15", two-way, bass-reflex |
| Maximum SPL Output | 135 dB (Full Range) peak; 134 dB (Monitor) peak |
| Frequency Range (-10 dB) | Full Range: 45Hz-19 kHz Monitor (vertical orientation): 55Hz-19 kHz Monitor (monitor orientation):48Hz-20 kHz |
| Frequency Response (±3 dB) | Full Range: 54Hz-18 kHz Monitor (vertical orientation):75Hz-18.5 kHz Monitor (monitor orientation):60Hz-18kHz |
| Input Connectors | Balanced XLR / 1/4" combo jack with XLR loop through |
| Input Impedance | 20K ohms (balanced), 10K ohms (unbalanced) |
| Signal indicators | Limit: Red LED indicates limiter active condition Green LED indicates signal present |
| EQ | Presets for use in Main and Monitor position |
| Crossover Modes | DSP controlled. LF: 48 dB/Oct filter slope High & Low Pass; HF: 36 dB/Oct High Pass |
| Crossover Frequency | 1.8 kHz |
| Amplifier | Class D, DSP design |
| Power Rating | 650W |
| LF Driver | 1 x 15 inch top quality ferrite magnet woofer; 550Watts,8ohm |
| HF Driver | 44mm dia diaphragm tweeter |
| Coverage Pattern | 90° x 50° nominal |
| Directivity Index (DI) | 10.0 dB |
| Directivity Factor (Q): | 10 |
| Enclosure | 18 mm plywood |
| Suspension/ Mounting | Dual 36 mm pole socket 8 x M10 Suspension Points 1 x M10 Pull-Back Point |
| Transport | Integrated handle with backing cup |
| Finish | Polyurea Finish |
| Grille | Powder coated, black, 16-gauge perforated Steel with acoustically transparent foam |
| Dimensions | 660 mm x 429 mm x 414 mm |
| Net Weight | 35KG |
| Packing size (carton) | 53*55*75cm |
| Gross Weight (carton) | 41KG |
Hope we have honor to serve you in the near future.
