| Brand Name: | Coreray/Custom |
|---|---|
| Wavelength: | 650~1310,1260~1670 nm |
| Data Rate: | 500G |
| warranty: | One year |
| Connector: | FC SC LC ST |
| Model Number: | OSW -2X2B |
| Place of Origin: | China (Mainland) |
| Testing Wavelength: | 650/780/850/980/1064/1310 |
| Insertion Loss: | Typ:0.6,Max:1.0 ,Typ:0.5 ,Max:0.8 |
| Return Loss: | >=30dB,>=50dB |
| Crosstalk: | >=35dB,>=50dB |
| PDL: | <=0.05db |
| WDL: | <=0.25db |
| TDL: | <=0.25db |
| Repeatability: | 0.02 |
| Switch Time: | <=8ms |
| Lifetime: | >= 1 Million Cycles |
Quick Details
Specifications

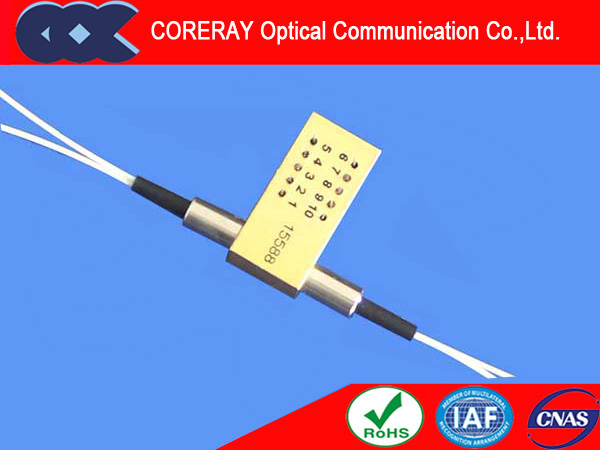

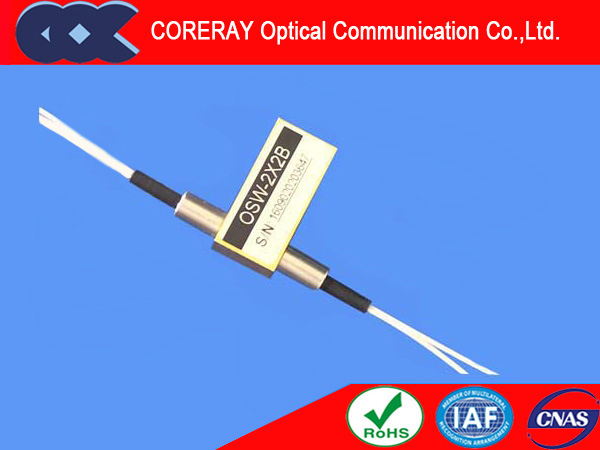

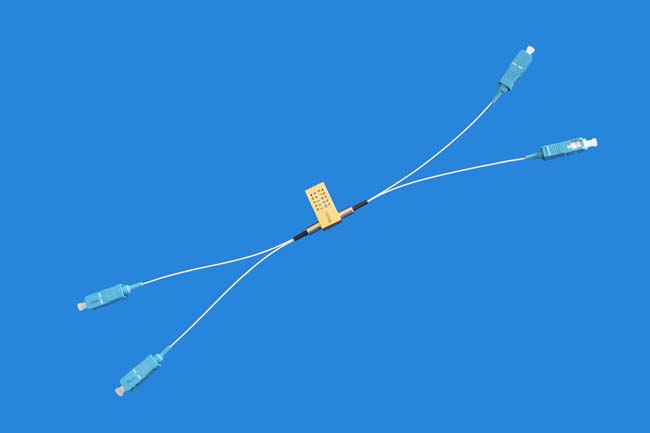

OSW - 2X2B FIBER OPTICAL SWITCH
Description
Parameters |
|
OSW-2x2B | ||
Wavelength Range |
nm |
6501310 |
12601670 |
|
Testing Wavelength |
nm |
650/780/850/980/1064/1310 |
1310/1490/1550/1625/1650 |
|
Insertion Loss |
dB |
Typ:0.6,Max:1.0 |
Typ:0.5,Max:0.8 |
|
Return Loss |
dB |
30 |
50 |
|
Crosstalk |
dB |
35 |
50 |
|
PDL |
dB |
0.05 | ||
WDL |
dB |
0.25 | ||
TDL |
dB |
0.25 | ||
Repeatability |
dB |
0.02 | ||
Power supply |
v |
3.3 or 5.0 | ||
Lifetime |
Cycle |
107 | ||
Switch Time |
ms |
8 | ||
Transmission Power |
mW |
500 | ||
Operation Temperature |
-40+85 | |||
Storage Temperature |
-40+85 | |||
Weight |
g |
16 | ||
Dimension |
mm |
(L)27(W)12.6(H)8.5(0.2) | ||
Route states
Pins
Optical Path |
|
Electric Drive |
|
Sensor Status | |||||||||||||
2x2B |
1 |
5 |
6 |
10 |
34,78 |
23,89 |
| ||||||||||
Latching |
P1--P3 |
N/A |
N/A |
GND |
+5V |
OPEN |
CLOSE |
| |||||||||
P1-P4/P2-P3 |
+5V |
GND |
N/A |
N/A |
CLOSE |
OPEN |
| ||||||||||
Non-Latching |
P1--P3 |
N/A |
N/A |
N/A |
N/A |
OPEN |
CLOSE |
| |||||||||
P1-P4/P2-P3 |
+5V |
N/A |
N/A |
GND |
CLOSE |
OPEN |
| ||||||||||
Electrical Parameters
|
|
Voltage |
Current |
Resistor |
5V |
Latching |
4.5~5.5 |
36~44mA |
125? |
5V |
Non-Latching |
4.5~5.5 |
26~32mA |
175? |
3V |
Latching |
2.7~3.3 |
54~66mA |
50? |
3V |
Non-Latching |
2.7~3.3 |
39~47mA |
70? |

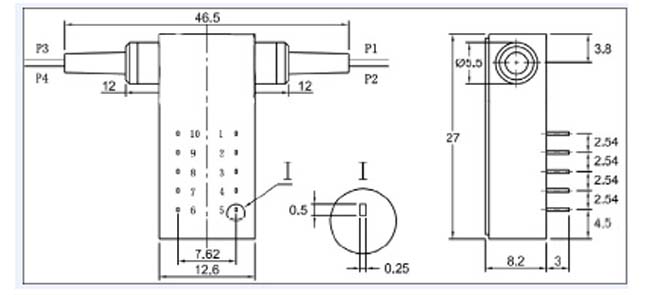

Dimensions
Ordering Information:OSW-2x2B-A-B-C-D-E-F-G
A |
B |
C |
D |
E |
F |
G |
Mode |
Wavelength |
Voltage |
Control Model |
Fiber Diameter |
Fiber Length |
Connector |
SM:9/125um M5:50/125um M6:62.5/125um |
85:850nm 13:1310nm 14:1490nm 15:1550nm 162:1625nm 165:1650nm 13/15:1310/1550nm |
3:3v 5:5v |
L:Latching N:Non-Latching |
25:250um 90:900um 20:2.0mm 30:3.0mm |
05: 0.5m 10: 1.0m 15: 1.5m |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC |
