| Standard: | DIN |
|---|---|
| Brand Name: | Rbo |
| Material: | Stainless Steel&Carbon Steel |
| Certificate: | ISO9001 |
| Size: | M1.6-M30 |
| Model Number: | M3-M20 |
| Place of Origin: | China (Mainland) |
| Material: | Spring Steel&Stainless Steel |
Quick Details
Specifications

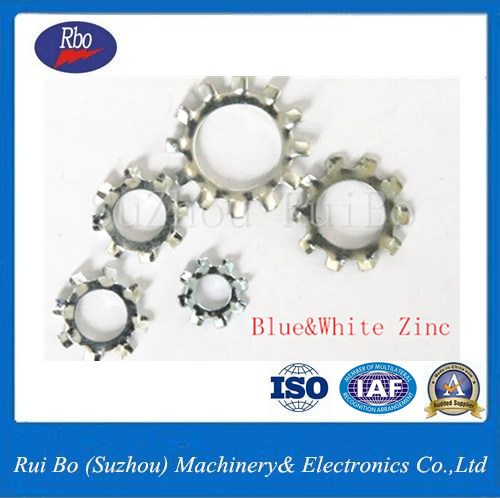

| DIN6797A External Teeth Washer | |||||
| Dimension | D H13 |
DC h14 |
H min |
h | Teeth |
| 1.6 | 1.7 | 3.6 | 2h |
0.3 | 6 |
| 1.8 | 2 | 4 | 0.3 | ||
| 2 | 2.2 | 4.5 | 0.3 | ||
| 2.2 | 2.4 | 5 | 0.4 | ||
| 2.5 | 2.7 | 5.5 | 0.4 | ||
| 3 | 3.2 | 6 | 0.4 | ||
| 3.5 | 3.7 | 7 | 0.5 | ||
| 4 | 4.3 | 8 | 0.5 | ||
| 5 | 5.3 | 10 | 0.6 | 8 | |
| 6 | 6.4 | 11 | 0.7 | ||
| 7 | 7.4 | 12.5 | 0.8 | ||
| 8 | 8.4 | 15 | 0.8 | ||
| 10 | 10.5 | 18 | 0.9 | 9 | |
| 12 | 13 | 20.5 | 1 | 10 | |
| 14 | 15 | 24 | 1 | ||
| 16 | 17 | 26 | 1.2 | 12 | |
| 18 | 19 | 30 | 1.4 | ||
| 20 | 21 | 33 | 1.4 | ||
| 22 | 23 | 36 | 1.5 | 14 | |
| 24 | 25 | 38 | 1.5 | ||
| 27 | 28 | 44 | 1.6 | ||
| 30 | 31 | 48 | 1.6 | ||
| Materials | Our Advice for You below: |
| Spring Steel: 65Mn | ≤200°C, under Normal Condition |
| Stainless Steel: SS304, SS316 | ≤300°C, under Corrosive Condition |
| Customized as Per Clients' Requirements |
Plated Zinc, Dacromet, Geomet, Black Finishing
Basic information
Model NO.: DIN6797A
Size: M1.6-M30
Item:DIN6797
Loading Port: Shanghai Port
Certificate: ISO9001
Trademark: Rbo
Spring Washer Type: Standard
Shipping Method: by Sea,by Air
Payment Term: T/T, Westunion, L/C
Production Ability: 5000000 PCS / Month
ODM&OEM:Supported
MOQ: 1000 PCS
Transport Package: Standard Export Packaging
Origin: China
