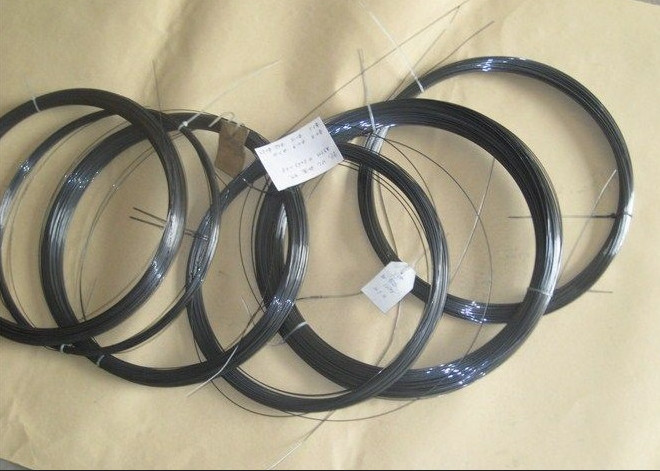

Molybdenum Wire or molybdenum wire for cutting

Specifications

Molybdenum Wire Types	Diameter (inch)	Tolerance (%)
Molybdenum Wire for EDM	0.0024" - 0.01"	±3% Wt
Molybdenum Spray Wire	1/16" - 1/8"	±1% to 3% wt
Molybdenum Wire	0.002" - 0.08"	±3% Wt
Molybdenum Wire(clean)	0.006" - 0.04"	±3% Wt



Grade	the Impurity content is not more than %
	Fe	Ni	Al	Si	Mg	C	N	O
Mo-1	0.01	0.005	0.002	0.01	0.005	0.01	0.003	0.008
Mo-2	0.01	0.005	0.005	0.01	0.005	0.01	0.003	0.02

Package: in spool or in coil, then packed with box or plastic bags.

Application: Molybdenum wire can withstand high Temperature and corrosion, it is used as heating materials of high-temperature Resistance furnace, heating elements, automotive, aerospace, wire cutting Machine; With good electrical conductivity, molybdenum wire also can be applied To electronic tube socket, stent filament incandescent lamp, halogen lamps, Discharge tube sealing material, lead-wire, tungsten filament with the mandrel, the grid. There are some other common uses for molybdenum wire such as cathode, Spray material.
