| Warranty: | 1 Year |
|---|---|
| Certification: | ISO, CE |
Quick Details
Specifications
Main fearures:
1. Furnace chamber consists of vacuum-formed Al2O3 ceramic fiber materials, no powder dropping off under high temperature, low heat capacity, and high efficiency of energy saving.
2. Double-layer case structure, Outer case with Lower temperature.
3. Heating element is good-quality Silicon Carbide rod, properties of which are stable and can bear large load.
4. Microcomputer PID control module enables precise temperature control and constant temperature requirements.
5. Temperature contrOl with 2 groups/16 segments programmable, and avaiable to set temperature curve.
6. over-temperature alarm: wheN temperature exceeds the limit value, machine will send out a light-soundAlarm and stop heating.
Specifications:
Optional accessory:
A large screen paperless recorder, to achieve real-time temperature curve recorded with a memory card of experimental data analysis and printing.
1300c atmosphere furnace models:

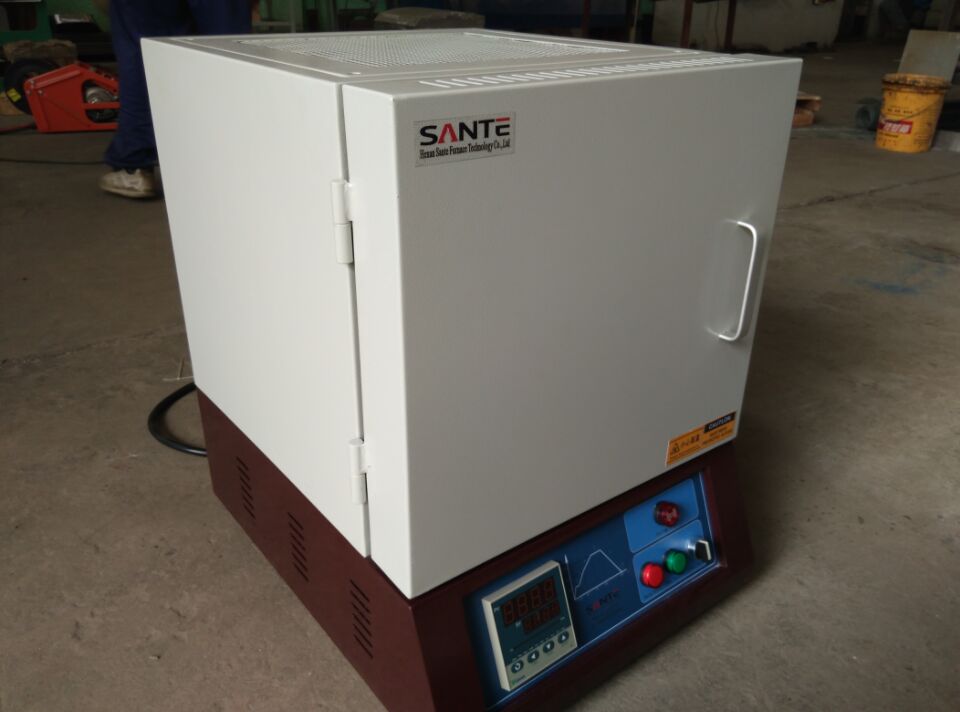

Reference photos:
1. Furnace chamber consists of vacuum-formed Al2O3 ceramic fiber materials, no powder dropping off under high temperature, low heat capacity, and high efficiency of energy saving.
2. Double-layer case structure, Outer case with Lower temperature.
3. Heating element is good-quality Silicon Carbide rod, properties of which are stable and can bear large load.
4. Microcomputer PID control module enables precise temperature control and constant temperature requirements.
5. Temperature contrOl with 2 groups/16 segments programmable, and avaiable to set temperature curve.
6. over-temperature alarm: wheN temperature exceeds the limit value, machine will send out a light-soundAlarm and stop heating.
Specifications:
| Chamber Size |
250(W)*300(L)*250(H)mm Capacity: 18 liters |
| Max. Temperature |
1300c |
| Continuous Operating Max. Temp. | 1250c |
| Heating Rate | 0~30c/min |
| Heating Element |
SiC rod |
| Temperature Control |
SCR power controller and PID parameter self-setting |
| Display Accuracy | ±1 deg.C |
| Voltage |
AC 208~240V, 50/60Hz |
| Power |
6 kw |
| Thermocouple | S type |
Atmosphere |
Installation of iNlet and outlet to introduce in&Out gas |
| Standard Accessory | High temperature gloves 1 pair, crucible tong 1pc, Al2O3 sample block 1pc, power line 1pc |
| Warranty | One year (not including the consuming parts like heating element) |
Optional accessory:
A large screen paperless recorder, to achieve real-time temperature curve recorded with a memory card of experimental data analysis and printing.
1300c atmosphere furnace models:
| Model | Capacity(L) | Chambe Size W*L*H(mm) |
Max.Temperature (deg.C) |
Voltage (V) |
Power (KW) |
Heating Element | Display Accuracy |
| STM-3-13 | 3 | 150*150*150 | 1300 | 220 | 2 | SiC rod | ±1 deg.C |
| STM-8-13 | 8 | 200*200*200 | 1300 | 220 | 5 | SiC rod | ±1 deg.C |
| STM-18-13 | 18 | 250*300*250 | 1300 | 220 | 6 | SiC rod | ±1 deg.C |
| STM-36-13 | 36 | 300*400*300 | 1300 | 380 | 10 | SiC rod | ±1 deg.C |
| STM-45-13 | 45 | 300*500*300 | 1300 | 380 | 12 | SiC rod | ±1 deg.C |
