| Place of Origin: | China (Mainland) |
|---|---|
| AC Voltage: | 208-230 / 240 V |
| Certification: | CCC,CE,ROHS |
| Phase: | Single-phase |
| Protect Feature: | Drip-proof |
| Output Power: | 40W |
| Frequency: | 50Hz |
| Type: | Asynchronous Motor |
| Model Number: | 135YYJ6D4-26a |
| Brand Name: | K |
| Product: | Boom gate motor |
| Frequency: | 50Hz |
| Reduction ratio: | 35.1:1 |
| Input current: | 180W |
| Output power: | 40W |
| Speed: | 26RPM |
| Output torque: | 16 N.m |
| Insulation class: | F |
| Capacitor: | 8.0uF/500V |
| N.W.: | 7.8kg |
Quick Details
Specifications
DEscription of Boom Gate Motor for Car Park Barrier Gate
the Asynchronous gearmotor consists of a single phase capacitor-run motor which high quality aluminum-alloy extruded housing,and well-designed gear box. this kind of motor has the following features: high starting torque, low vibrations&noise, it can start, stop, reverse continually and stall for long time. It can also run under expansive fluctuation of working voltage.
Typical application of boom gate motor car parking barrier gate gear motor
1.Temperature:-25℃~ +40℃;
2.Relative humidity:90%~ 95%;
3.Atmospheric pressure:74.8KPa(2500m);
Dimension of Boom gate motor for Car Park Barrier Gate

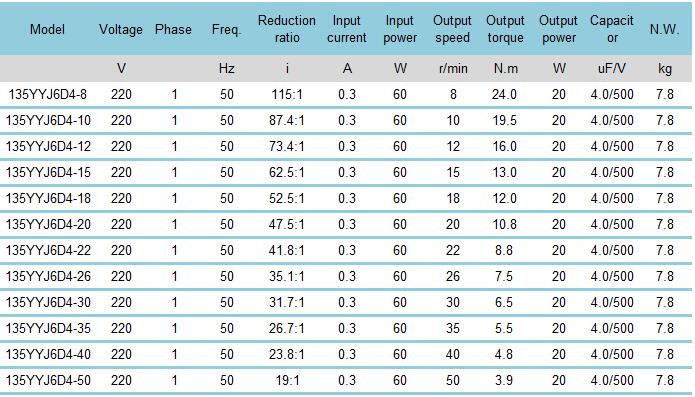

Parameter of Boom Gate Motor for Car Park Barrier Gate
Our Company
Contact us:
the Asynchronous gearmotor consists of a single phase capacitor-run motor which high quality aluminum-alloy extruded housing,and well-designed gear box. this kind of motor has the following features: high starting torque, low vibrations&noise, it can start, stop, reverse continually and stall for long time. It can also run under expansive fluctuation of working voltage.
Typical application of boom gate motor car parking barrier gate gear motor
the Asynchronous gearmotors are mainly used as driving devices for barrier gate in toll gate, hospitals, hotels, parks, resident area, troop and mining enterprises.
Ambient condition of Boom Gate Motor for Car Park Barrier Gate
1.Temperature:-25℃~ +40℃;
2.Relative humidity:90%~ 95%;
3.Atmospheric pressure:74.8KPa(2500m);
Dimension of Boom gate motor for Car Park Barrier Gate
Parameter of Boom Gate Motor for Car Park Barrier Gate
