| Model Number: | BD-FE1-V35 |
|---|---|
| Brand Name: | Baudcom |
Quick Details
Specifications
Features:

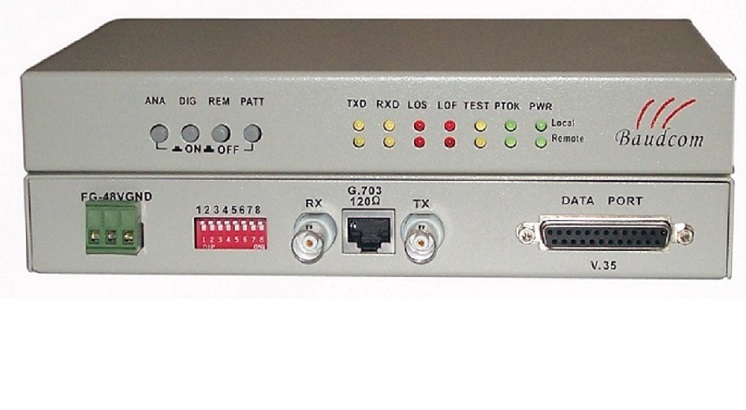

- Monitoring remote device from local device (having 2 row indicator LED, upper indicates local, lower indicates remote)
- E1 port can randomly choose time slots from 31 slots with hardware.
- Provides many kinds of clock ways: E1 master clock, and E1 line clock, V.35 master clock, V.35 external clock.
- Having 3 loop back functions: E1 local loop, V.35 local loop, and let remote V.35 loop.
- Having pseudo random code test function, can used as a 2M Protocol Analyzer
- Support 120Ω/balance and 75Ω/unbalance impedance.
- V.35 port supports hot plug, can connect with DTE or DCE.
Specifications
E1 interface
Standard: compatible with G.703 standard.
Rate: N x 64Kbps, N= 1-32
Coding: HDB3
Impedance: 75Ω (unbalance), 120Ω (balance)
Connector: BNC (75Ω), RJ45 (120Ω)
Jitter Performance: Meet G.742 and G.823
Clock: internal clock, Recovery clock.
V.35 interface
Rate: N x 64Kbps, N= 1-32
Interface: compatible with V.35 standard.
Connector: DB25 socket
Connect mode: DCE
Clock: G.703 recovery clock, internal clock, V.35 external clock.
Dimension
Desk top type: 210(W)*140(D)*30(H)
Operating Environment
Voltage: AC90V-260V
Power Consumption: <=3 Watts
Working temperature: 0°C~50°C
Storage temperature: -40°C~+70°C
Humidity: 95%
