| Loder Weight: | 2000kg |
|---|---|
| Dimension(L*W*H): | 3.2*1.5*2.25m |
| Max Lifting Height: | 250m |
| Hoisting Speed: | 0-34m per minute |
| Brand Name: | Changlong Century |
| Place of Origin: | China (Mainland) |
| Condition: | New |
Quick Details
Specifications

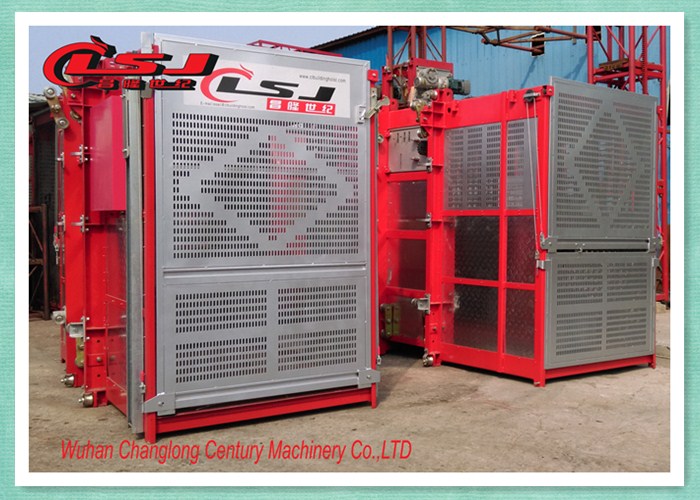

Changlong Century Brand 0-34m/min 2000kg capacity construction material lift
- Frequency conversional construction material lift is safe, stable and comfortable. Starting electricity is smaller than working electricity, energy-saving and high efficient.
- (the high quality seamless steel pipe is good verticality, anti-pressure, anti-aging, thickness and so on)
- Aluminum plate. the suspension cage is lightweight and artistic in appearance.
- Transmission mechanism supplied by the professional manufacturer has high efficiency, long service life and stability in performance.
- the Mast section(color is variable) is made of high frequency welding pipe. Complete set of overload protection devices, variety of limiters and mechanical chain devices
- Suspension cage of the construction material lift guarding board adopts figured aluminum plate punched.
- Ensure its reliability. Anti-falling safety device adopts SAJ40-1.2, which restricts the excessive
- Downward movement of the cage, preventing and eliminating accidents.
Technical Data
| Item | Construction material lift |
| Model | SC200/200 |
| Rated capacity/per cage | 2000kg |
| Lifting speed | 0-34m/min |
| Cage size | 3.2*1.5*2.25m |
| Motor power | 2*12kw |
| Speed ratio | 1:18 |
| Invertor Power | 37 kw |
| Safety device | SAJ40-1.2 |
| Mast section size | 0.65*0.65*1.508m |
| Max. Installation height | 250m |
| Cable type | Cable basket/cable trolley |
Completed safety measures
- Equiping with Anti-falling govenor
- Electrical an Mechanical interlock: Door safety switches, Slack rope switch
- Safety hook and Bottom Buffer.
- PLC Control system can be choose
- Upper and bottom limit swithes, trap door limit switch.
- Overload protector.
- Frequecy Conversion (Inverter) can be choose
- Level Calling system and Auto leveling device to be choose.
| Characteristic | Model | Rated Loading | Lifting Speed | Motor Power | Inverter Power |
| Double cage | SC100/100 | 2×1000kg | 0-34m/min | 2×7.5Kw | 15kw |
| SC150/150 | 2×1500 | 0-34m/min | 2×9Kw | 22Kw | |
| SC200/200 | 2×2000kg | 0-45m/min | 3×12Kw | 37 Kw | |
| SC200/200 | 2×2000kg | 0-34m/min | 2×12Kw | 37 Kw | |
| SC200/200 | 2×2000kg | 0-63m/min | 3×15 Kw | 45 Kw | |
| SC200/200 | 2×2000kg | 0-96m/min | 3×18.5 Kw | 75 Kw | |
| Single cage | SC100 | 1000kg | 0-34m/min | 2×7.5Kw | 15kw |
| SC150 | 1500Kg | 0-34m/min | 2×9Kw | 22Kw | |
| SC200 | 2000kg | 0-45m/min | 3×12Kw | 37 Kw | |
| SC200 | 2000kg | 0-34m/min | 2×12Kw | 37 Kw | |
| SC200 | 2000kg | 0-63m/min | 3×15 Kw | 45 Kw | |
| SC200 | 2000kg | 0-96m/min | 3×18.5 Kw | 75 Kw |
