| Model Number: | TDW 11A AUTOMATIC FUEL NOZZLE |
|---|---|
| Brand Name: | OPW 11A automatic nozzles are designed with today's consumers in mind. |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

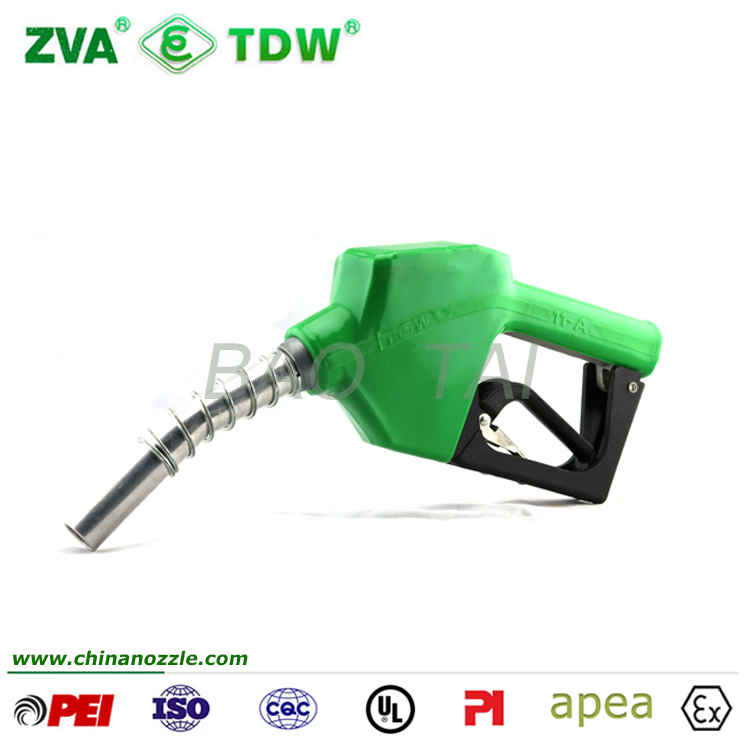

TDW 11A Gas Station Dispenser Pump Automatic Fuel Oil Filling Injection Nozzle Gun
OPW 11A automatic nozzles are designed with today's consumers in mind. Small, trim, light weight, easy and convenient to use, It is a rugged performer that offers long life and reliable service. "Accu-stop " flow control-allows your customers to top off their tank to the exact amount they want and easy to stop gasoline flow precisely.
Features and Benefits:
? Low profile aluminum body-light weight, easier to handle, provides an attractive, image enhancing appearance.
? Full hand insulator-protects both nozzle and vehicle, and insulates user's hands.
? Hold-open rack is available for full service application-the one hand control means easy setting to flow rate for customer convenience.
? Easily replaced spout-simply remove the spout retaining screw. Replacement provides and entirely new outlet check valve. Kits are available from TDW.
? Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
? 100% Factory Tested.
| Material | |
| Body | Aluminum |
| Lever and lever guard | Duratuff |
| Main stem | Extra hard stainless steel |
| Seals | Buna-N, Viton |
| Technical Specifical | |
| Working Pressure | 0.2 Mpa |
| Auto Shut-off sensibility | 0.1 second |
| Thread | NPT/BSP |
| Spout Outlet Diameter | 15/16", 13/16" (20mm or 16mm) |
| Inlet Size | 3/4" |
| Flow Rate | 18-60 L/m(15/16"), 15-40 L/m(13/16") |
| Net Weight | 1.15 KG |
| Order Specifications | ||
| Item No. | Inlet Thread | Spout O.D. |
| TDW-11A01 | 3/4" NPT | 13/16" |
| TDW-11A02 | 3/4" NPT | 15/16" |
| TDW-11A03 | 3/4" BSP | 13/16" |
| TDW-11A04 | 3/4" BSP | 15/16" |
| Package Data | |
| Size | Weight |
| 1pcs = 43*17*6.5 cm (box) | 1.3 kg |
| 20pcs = 0.1 club (carton) | 26.3 kg |
| Color Options | |
| Red, Green, Blue, Yellow, Orange, Black |
