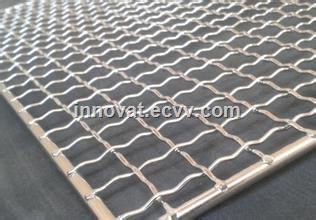

Stainless Steel Crimped Wire Mesh



Material: Stainless steel wire 301,302,304,316,316L,320,2520 ECT.



Process: after first rolling,two-way wavebending,locked bending,flat-topped cured,two-way bending,on-way wave bending,rectangular mesh weaving,mesh has woven solid,durable,mesh uniform characteristics.



Mesh count:1mesh-24mesh



Width: 1m/1.05m/1.2m/1.6m/2.0m/3.0m(as request)



Wire Diameter: 0.3mm~2.25mm



Hole size: 1.5mm~50mm



Roll size:25m/30m/50m



Hook: 60-180 degree, C hook available.



Hook Covered edge: galvanized metal or others



Crimped wire mesh features:



Solid structure

Strong impact resistance

Abrasion resistance,low cost

Uniform mesh to keep for a long time, and beautiful

Have very strong palsticity and toughness at room temperature and low temperature,non magnetic,has good resistance to intergranular corrosion.



Crimped wire mesh Application:



Stainless steel crimped wire mesh can be widely used in mining,sand stone,screening of raw coal and constructon,civil,aquaculture intustry,such as isolation and prodection.the stianless steel crimped wire mesh can also be used in acid,alkai conditions of pertoleum,Chemical,marine industries such as filtrantion,screen and protection,Make continuous glass reinforced,all kinds of industrial use basket,crafts,Kitchen,storage basket in the refrigerator.





Crimped wire mesh specification:



Wire Guage SWG	Wire Dia.(mm)	Mesh	Hole Size(mm)	Weight:kg/m2
14	2.0	21	1	4.2
8	4.05	18	1	15
25	0.50	20	0.61	2.6
23	0.61	18	0.8	3.4
24	0.55	16	0.1	2.5
24	0.55	14	0.12	4
22	0.71	12	0.14	2.94
19	1	2.3	0.18	1.45
6	4.8	1.2	2	20
6	4.8	1	2	20
6	4.8	0.7	3	14
14	2.0	5.08	0.3	12
14	2.0	2.1	1	2.5
14	2.0	3.6	1.5	1.9
