| Type: | Inkjet Printer |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE certification |
| Weight: | 1700kg |
| Dimensions(L*W*H): | 4780*2860*1560mm |
| Gross Power: | 50/60HZ 220V>30A |
| Voltage: | 220V |
| Color & Page: | Multicolor |
| Automatic Grade: | Automatic |
| Usage: | rigid and roll to roll printer |
| Model Number: | WT-XF2508 |
| Brand Name: | Wute |
| Place of Origin: | China (Mainland) |
| Plate Type: | Flatbed Printer |
| Condition: | New |
| Printhead: | Epson DX7 or Ricoh Gen5 |
| Ink: | UV ink |
| Color: | CMYK+W/dual CMYK |
Quick Details
Specifications

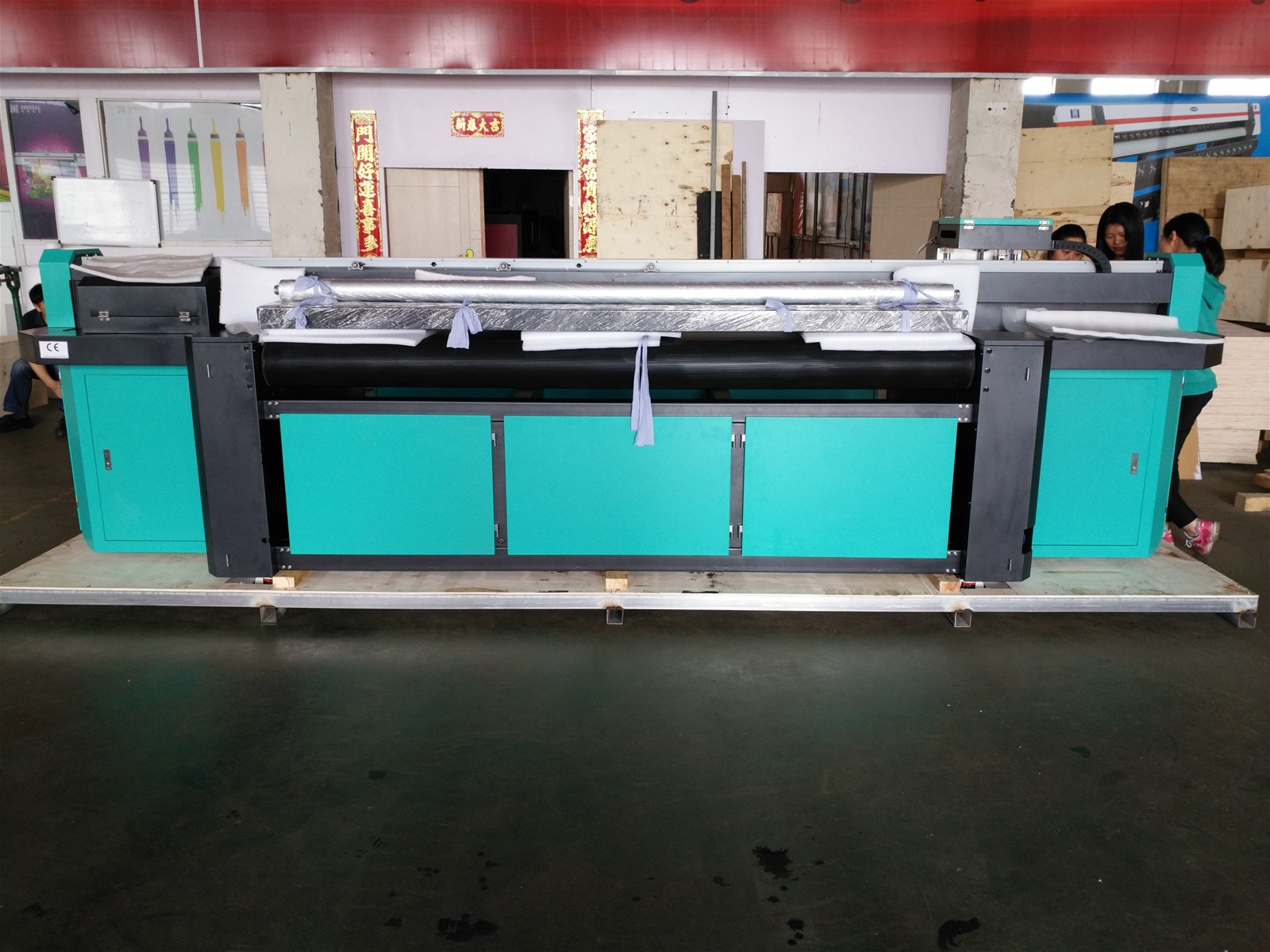

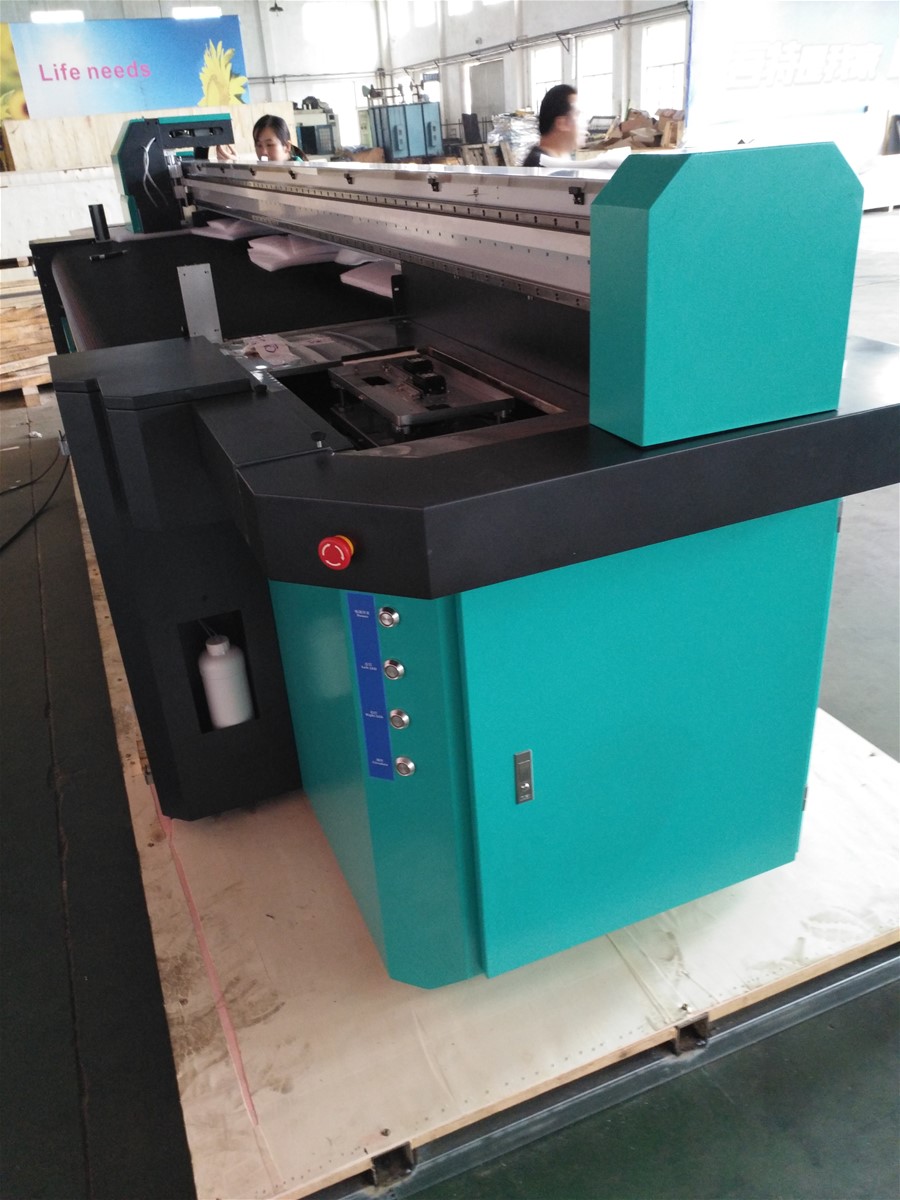

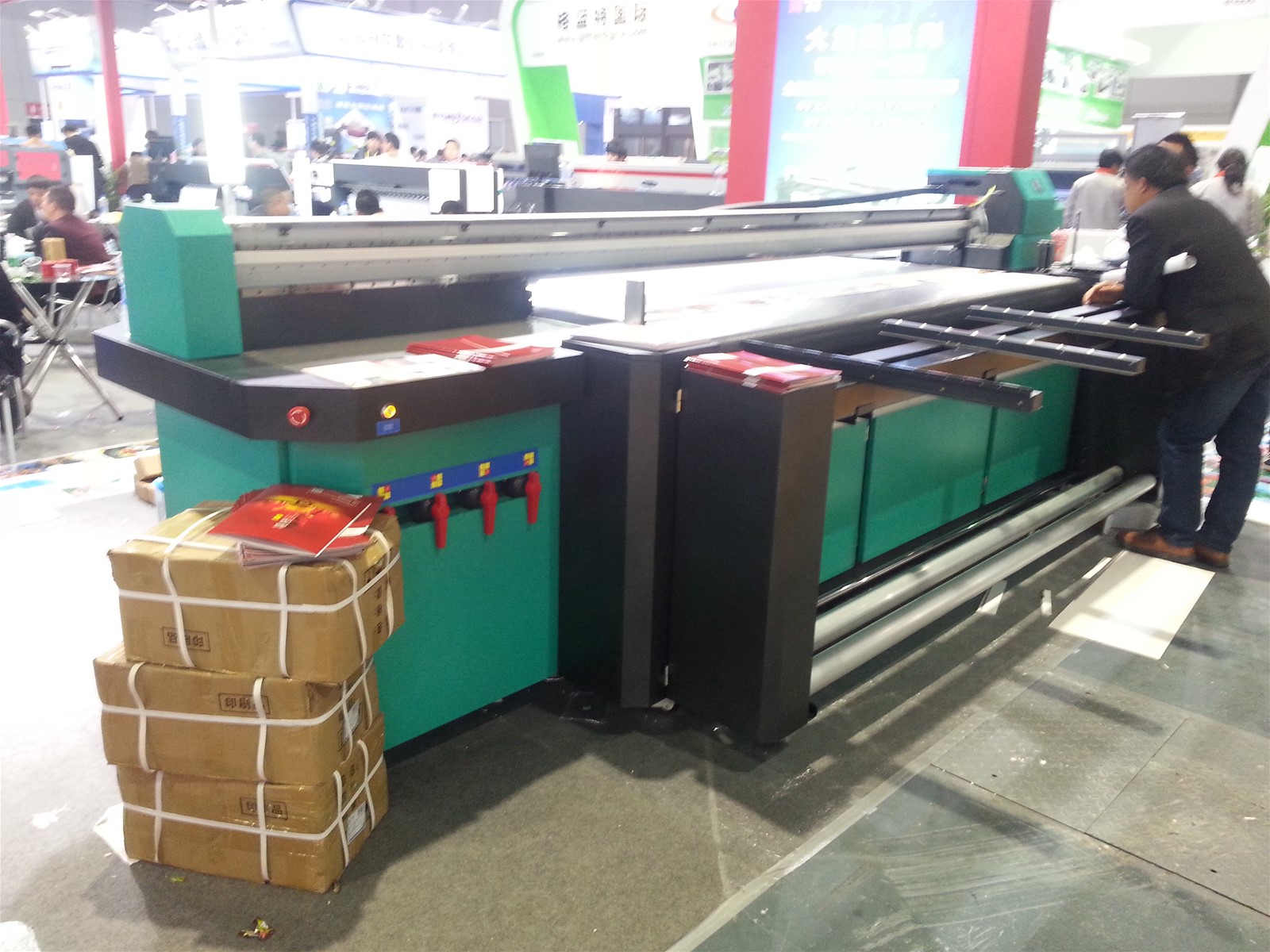

2.5m Large Format Hybrid UV Printer for both rigid and roll to roll material
1.Brief Introduction:
Use high quality parts for the machine like Fuji motors,German UV lamp wick,good power boxes,strong structure.
Suitable for both rigid and flexible roll to roll material
2.Techincal parameters: Model WT-XF2580//WT-XF3208 Printheads RICOH GEN5 (2/3/4/5/6/7/8PCS) Epson DX7(2PCS) Printhead height 1.5-100mm optional Ink Type UV ink Color CMYK+(White,Varnish) Cartridge capacity 1000ml Ink supply system Automatic ink supply Color Management ICC or density curve Print Media All rigid flat media such as glass,aluminum panels, Acrylic,wood,wall panel,ceiling,organic board,ceramics, PVC board,corrugated board,foam board,metal plates, Plastic,brick,stone… Drying System 2 UV lamps Print Width 2500mm//3200mm Print Speed Prodution Mode Ricoh GEN5(2heads) 17m2/h(low speed) 29m2/h(medium speed) 37m2/h(high speed) Epson DX7(1head) 15m2/h Qualtiy Mode Ricoh GEN5(2heads) 9m2/h (low speed) 16m2/h(medium speed) 20m2/h (high speed) Epson DX7(1head) 9m2/h Software Ultraprint Maintop5.3 Photoprint(optional) Operating System Windows XP Windows 7 Media Process Auto Feeding and Roll up. Data interface USB2.0 Power supply 50/60Hz 220V(30%)>30A File Format BMP TIF JPG Temperature 15-28℃ Humidity 40%-60% Machine Size L*W*H(4780*2860*1560//5410*2860*1560)mm Packing Size L*W*H(5000*1600*1550//5600*1600*1550)mm
3.Performance features:
