| Type: | Inkjet Printer |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE certification |
| Weight: | 1800kg |
| Dimensions(L*W*H): | 5580*1050*1540mm |
| Gross Power: | 50/60HZ 220V>30A |
| Voltage: | 220V |
| Color & Page: | Multicolor |
| Automatic Grade: | Automatic |
| Usage: | UV roll to roll printer |
| Model Number: | WT-DS3208 |
| Brand Name: | Wute |
| Place of Origin: | China (Mainland) |
| Plate Type: | Flatbed Printer |
| Condition: | New |
| Printhead: | Epson DX7 or Ricoh Gen5 |
| Ink: | UV ink |
| Printing size: | 3.2m |
| Color: | CMYK |
Quick Details
Specifications

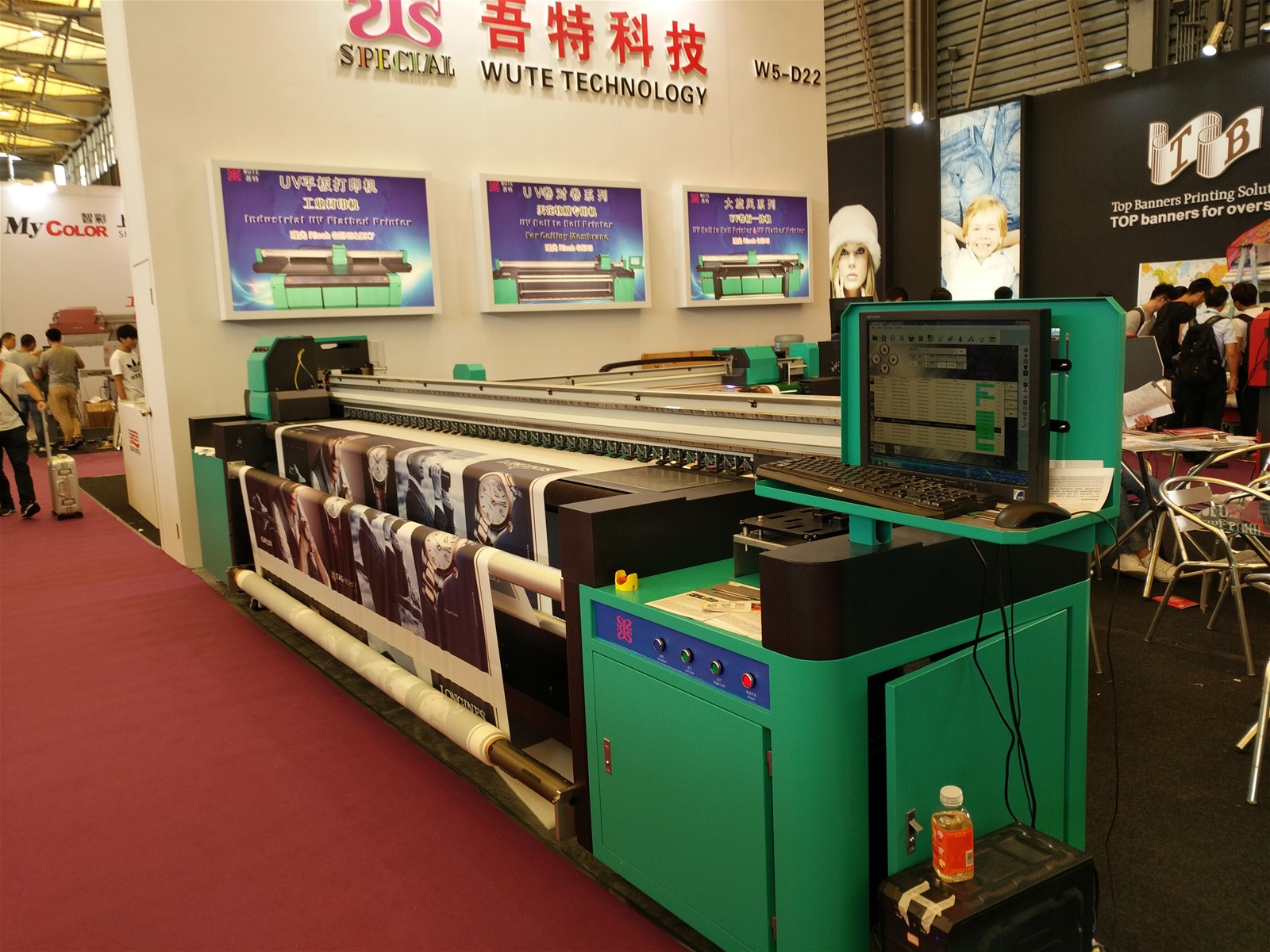

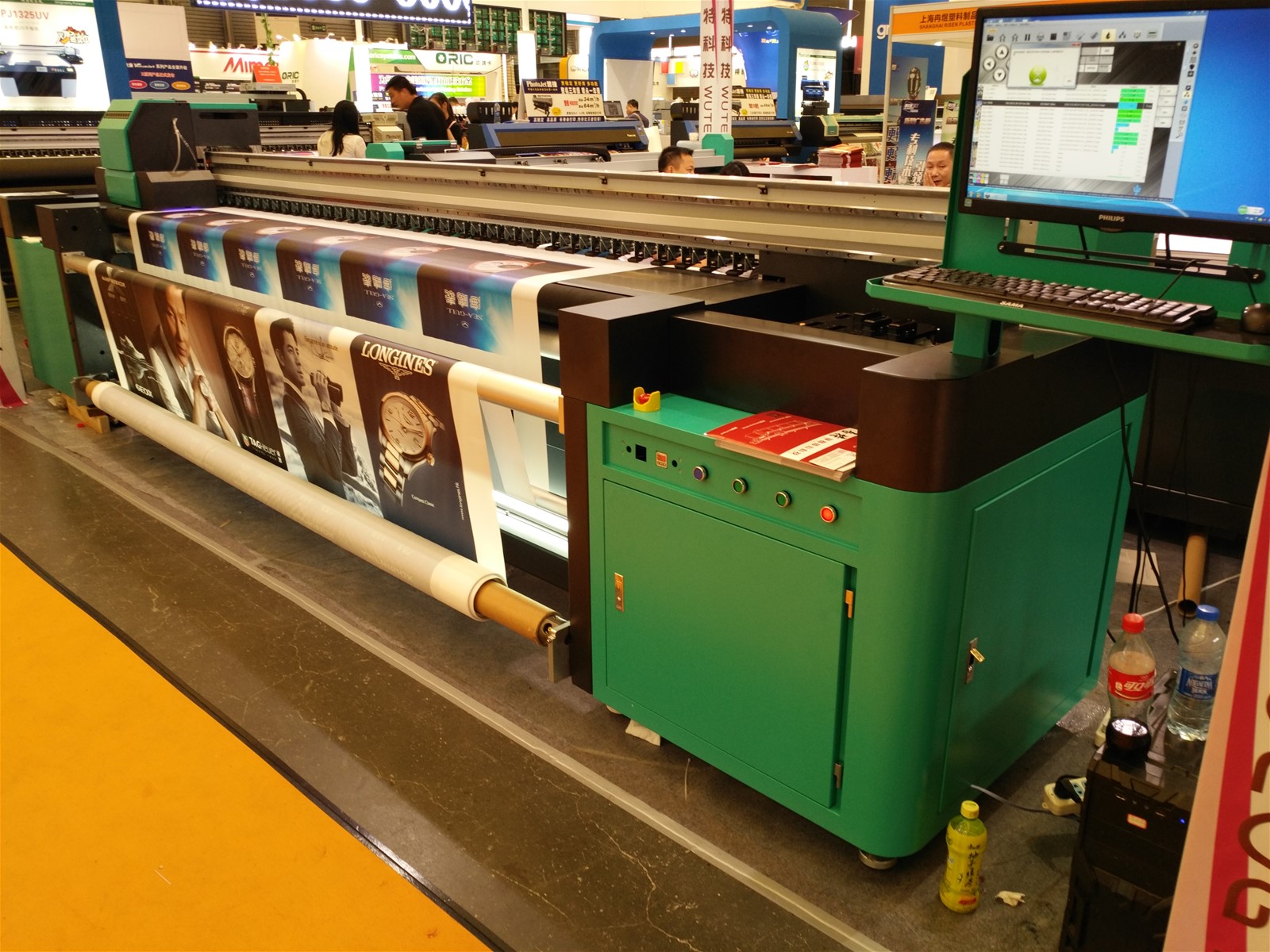

3.2m High-end UV roll to roll printer for Ceiling Film,PVC Film Leather and various indoor&outdoor material
1.Brief Introduction:
High-end machine body,stable printing,good Fuji motors and power boxes,Hiwin guide rail.
Suitable for roll to roll material
Good feeding and take up system,insure the printing quality
2.Techincal parameters:
| Model | WT-DS3208 | |
| Printhead | RICOH GEN5/DX7 | |
| Printhead Quantity | RICOH (2-8PCS) DX7(2-4PCS) | |
| Printhead Control | Software automatically adjusts the nozzle and voltage | |
| Printhead height | 1.5-2.5mm optional | |
| Ink | Type | UV ink |
| Color | CMYK | |
| Cartridge capacity | 1000ml | |
| Ink supply system | Automatic ink supply | |
| Color Management | ICC or density curve | |
| Print Media | Glossy banner,UV light sheet,soft film,wall paper,leather,one way vison,photo paper,PP paper various indoor and outdoor material | |
| Drying System | 2 UV lamps | |
| Print Size | 3200mm | |
| Resolution | RICOH Gen5 | 360dpi*900dpi,720dpi*600dp,720dpi*900dpi |
| 720dpi*1200dpi,720dpi*1500dpi,720dpi*1800dpi | ||
| DX7 | 720dpi*360dpi,360dpi*1080dpi,720dpi*720dpi | |
| Speed | RICOH GEN5 Outside light |
(Slow):64m2/h (Medium):112m2/h (Fast):144m2/h |
| RICOH GEN5 Inside light |
(Slow):32m2/h(Medium):64m2/h (Fast):76m2/h | |
| DX7 | 4pass:15m2/h 6pass:9m2/h 8pass:6m2/h | |
| Software | Ultraprint Maintop5.3 Photoprint(optional) | |
| Operating System | Windows XP Windows 7 | |
| Power supply | 50/60Hz 220V(30%)>30A | |
| File Format | TIF JPG(best is TIF) | |
| Temperature | 20-28oC | |
| Humidity | 40%-60% | |
| Machine Size | L*W*H(5580*1050*1540mm) | |
3.Performance features:
