| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Type: | Drying Machine |
| Application: | Powder |
| Model Number: | GZF |
| Brand Name: | JXX |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Working Principle
It is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying. the drying speed will be faster if using vacuum to pump air and humidity out.

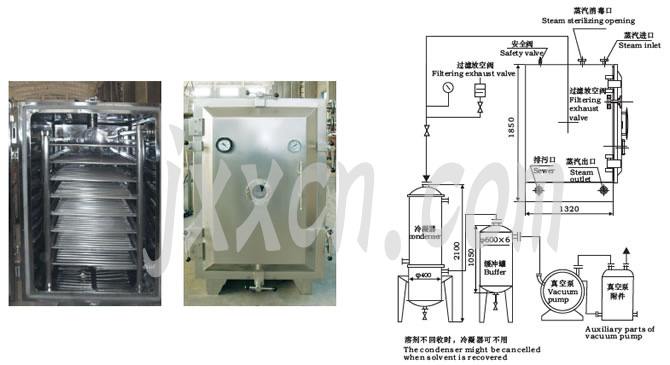

Note: If using condenser, the solvent in raw material can be recovered. If the solvent is water, condenser might be removed and the budget could be saved.
Characteristics
◎under the condition of vacuum, the boiling point of raw material will decrease and make the evaporation efficiency higher. for a certain amount of heat transfer, the conducting area of dryer can be saved.
◎the heating source for evaporation may be steam, hot water, or heat conducting oil.
◎the heat loss is low.
◎Before drying, the treatment of disinfection may be carried out so that no impurity material mixed.
It belongs to static drying so the shape of raw material should not be destroyed.
Material to be dried
It is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high temperature. It is widely used in pharmaceutical,chemical,foodstuff and electronic industries.
Technical Parameter
| Model name |
YZG-600 | YZG-800 | YZG-1000 | YZG-1400A | FZG-10 | FZG-15 | FZG-20 |
| Inter size of Drying chamber,mm |
Φ600×976 | Φ800×1247 | Φ1000×1527 | Φ1400×2054 | 1500×1060 ×1220 |
1500×1400 ×1220 |
1500×1800 ×1220 |
| Outer size of Drying chamber,mm |
1135×810 ×1024 |
1700×1045 ×1335 |
1693×1190 ×150 |
2386×1675 ×1920 |
1513×1924 ×1720 |
1513×1924 ×2060 |
1513×1924 ×2500 |
| Layers of Baking support |
4 | 4 | 6 | 8 | 5 | 8 | 12 |
| Interval,mm | 82 | 82 | 102 | 102 | 122 | 122 | 122 |
| Size of barking Tray,mm |
310×600 ×45 |
520×410 ×45 |
520×410 ×45 |
460×640 ×45 |
460×640 ×45 |
460×640 ×45 |
460×640 ×45 |
| Quantity of Baking tray |
4 | 8 | 12 | 32 | 20 | 32 | 48 |
| Working pressure Inside the pipe of Baking support,Mpa |
≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 |
| Operation temperature of baking support, oC |
35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 |
| Degree of vacuum inside the chamber when Operation in the,Mpa |
-0.09～0.096 | ||||||
| under the condition of -0.1Mpa and 110oC,evaporation Rate of water,kg/m2.Hr |
7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| When condensor is Used,Model,and power of vacuum pump,kw |
2X-15A 2KW |
2X-30A 3KW |
2X-30A 3KW |
2X-70A 5.5KW |
2X-70A 5.5KW |
2X-70A 5.5KW |
2X-90A 2KW |
| When condensor is not Used,Model,and power of vacuum pump,kw |
SK-0.8 2.2KW |
SK-2.7 4KW |
SK-3 5.5KW |
SK-6 11KW |
SK-3 5.5KW |
SK-6 11KW |
SK-6 11KW |
| Weight of drying Chamber,kg |
250 | 600 | 800 | 1400 | 1400 | 2100 | 3200 |
Note: Water ring vacuum pump can be used together with mechanical pressure increasing pump in order to increase vacuum.
Instruction to ordering
◎When ordering, please choose suitable vacuum drier in accordance with the physical property,primary moisture and final moistureof raw materiallo be dried and factors such as temperature, vacuum drying amount and time and so on. Vacuum drier with same model has four heating ways i.E steam,hot water,heat conduction oil and electric heat. for example, in orde r to increase the output of the product, the drying layer can be increased suitably, please tell us in time. the auxiliary parts of vacuum drying system indicated in user's manual can be supplied and installed.
◎by our company, please indicstelhem when order If having speciaI requirements our company can also design manufacture and lnstal as request.
◎for the equipment our factory will carry out guarantee of repair, replacement and refund of substandard spare parts.
◎ All subassembly can be supplied in a short time.
