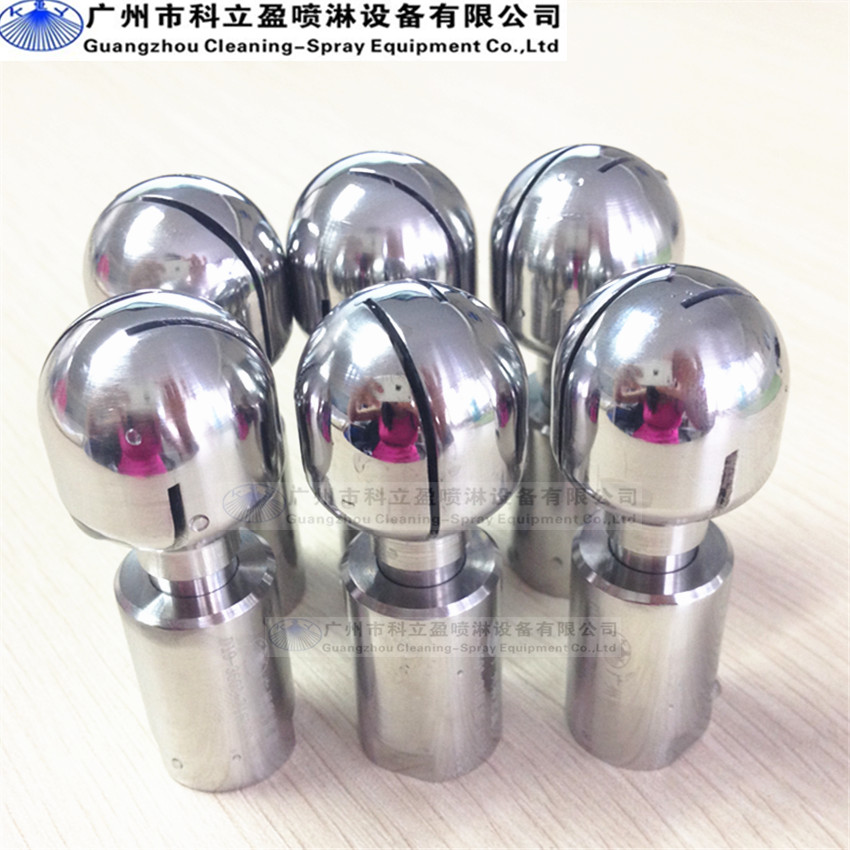

3/8"BSPP Sanitary tank rotary spray ball



Model:	D20 rotary spray ball
Material:	316L ss
Connection:	3/8" BSPP, 16mm slip-on, or 3/4" welding
Bearing:	Double ball bearing

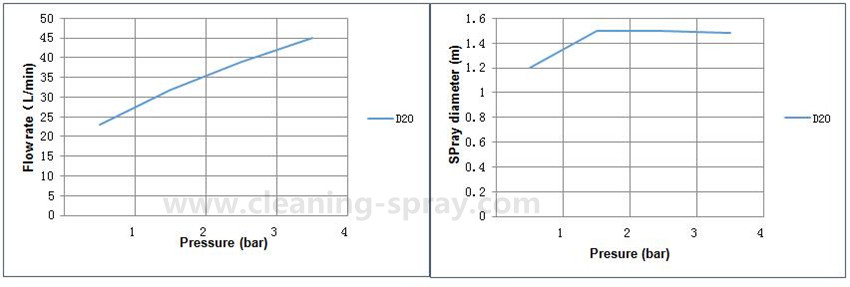

Pressure:	1.5-3 bar

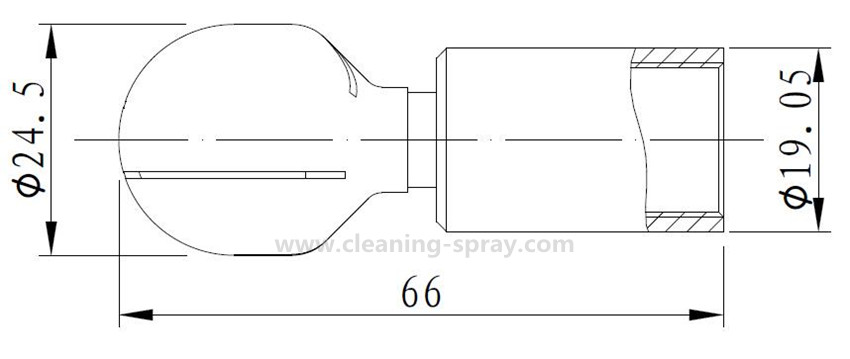

Diameter:	24.5mm
Spray diameter:	1.5m
Temperature:	130°
Installation:	Operation in every direction is possible
Filtration:	Line strainer with a mesh size of 50 Mesh
Application:	Rinsing and cleaning of tank or equipment





Design features:



1. Double bearing design with excellent rotation effects, and better stability and longer service life

2. Self-cleaning self-lubricating design

3. 360 degree self-rotating cleaning nozzle

4. Low consumption of liquid, operating under low pressure

5. Driven and lubricated by the cleaning fluid

6. the compact and hygienic design meets requirements for use in CIP system







Common application:

•  Soup kettles
•  Yeast propagation tanks
•  Batch processing vessels
•  Fluid bed dryers
•  Ink and paint mixing vats
•  Brew kettles
• Storage tanks
• Spray dryers
• Commercial ovens









Company information







Guangzhou Cleaning-spray Equipment Co., Ltd is one of leading company in China specialized in manufacturing and selling tank cleaning nozzles, industrial spray nozzles and other spray product which are widely used in Pharmaceutical, Chemical, Food and Beverage and other industry. We can provide you with optimal solution according to your requirement.





Our Services

1. Reply your inquiry within 24 hours.
4. Best after-sale service. We accept return if the products is not right specification or damaged when arrived.
5. Payment Term:T/T, Western Union,Paypal
6. Delivery Term: China Post/ TOLL/ DHL/ UPS/FEDEX Express; Air/ Sea Transportation
7. All products can be customised.







FAQ

1,Can the products be customized?
Yes, we accept OEM, just send us your layout or actual sample, we can arrange production according your design.
2,Is the MOQ fixed?
for mass production orders,the MOQ cannot be lowered according to production requirements.for stock items,order quantity can be negotible.
3,how to order?
Please send one RFQ to us, our sales will confirm with you about the specification or other required things, then will send an official invoice to you via mail, which will be included the details of your order and bank information of our company.
4,how to pay?
We accept the payment via ESCROW, T/T (bank transfer) and Western Union, please inquire us about the details in advance.
5,how long about the production leadtime?
Different products and quantities have different procedures and different timing,normally it needs about 7-14 working days.
6, how to Deliver?
by air, by sea or by express(Fedex, DHL, UPS, TNT etc)
7,how to return?
Acceptable to the returns when you receive the products because of the following reasons.
1. Product was damaged, lost or missed
2. Different specification from required one.
Before ordering, please select a suitable product for you. As you know, all of us don't expect the return. If your return is the result of our error (you received an incorrect or defective item, etc.) we will cover the cost of return shipping. Please note that you are responsible for the cost of shipping for returns not due to our error.
