| Type: | Gate Operators |
|---|---|
| Model Number: | Plu-KM202 |
| Brand Name: | SolarPlus |
| Place of Origin: | China (Mainland) |
| Weight: | 23.7kg |
| Dimensions: | 89 x 45 x 23 cm |
Quick Details
Specifications

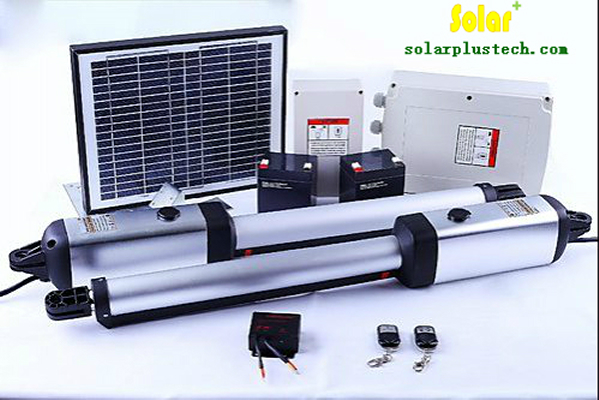

SolarPlus Double Swing Gate Opener is a terrific choice for energy-conscious homeowners and business owners.
this product comes with two 24V DC motors constructed with heavy-duty stainless steel. these tough yet silent motors can power two gates each up to 350kg in weight and 3.5m wide. that's a lot of power in a little package.
Many features of this opener are customisable to ensure you have just the functionality you need. There's a manual release function in case of power outage, independent master and slave gate operation, and an auto-close function with adjustable time.
on the important topic of safety, this opener also delivers. There is overcurrent protection, a stop and reverse function (with customisable sensitivity) to keep people and vehicles safe, and a door alarm for gate openings and closings. Also included is a cutting-edge digital control board which makes setting and monitoring gate functions hassle-free.
You'll receive 2 remote controls with your purchase, which can operate at up to a 30m range. Full hardware and easy-to-follow DIY instructions are also included.
Features of SolarPlus Double Swing Gate Opener:
- Two powerful 24V DC motors constructed with stainless steel
- 20W 24V solar panel with mounting brackets
- 24V 7Ah batteries
- Intelligent solar controller prevents battery overcharge
- Soft, smooth and silent openings and closings
- Stop and reverse mode in case of obstruction (customisable sensitivity)
- Can operate in dual gate or single gate modes
- Customisable interval between opening of master gate and slave gate
- Auto-close is fully adjustable between 0 and 99 seconds
- Overcurrent protection
- Alarm for openings and closings
- Manual operation in case of power failure
- 2 x remote controls (433.92 Mhz); operation at up to 30m
- 2-button operation: close, open, stop
- Easy-to-use digital control board with status and menu settings
- Waterproof and dust-proof battery box
- Full user manual and all installation hardware included
- Gates are NOT included
Specifications:
- Voltage: 24V DC
- Gate limit type: Intelligent Positioning System
- Max length of motor: 1220mm
- Max piston travel: 385mm
- Maximum weight of each gate: 350kg
- Width range for gates: 1.5m-3.5m
- Maximum opening angle: 0 to 110 degrees
- Operating temperature: -25°C to +55°C
- Protection class: IP44
- CE/EMC approval model
- Carton dimensions: 89 x 45 x 23 cm
- Gross weight: 23.7kg (carton)
