Product Main

Quick Details

Place of Origin: China (Mainland)
Model Number: TS-DNT65
Brand Name: Les Avedon
Processor Main Frequency: 1.4Ghz
Optical Drive Type: USB
Widescreen: Yes
Display Type: LCD
Graphics Card Type: Integrated Card
Hard Drive Capacity: 120GB
Processor Brand: Intel
Screen Size: 65''
Type: All-In-One
Products Status: Stock
Type: Infrared, TFT
Touch points: 10 Points
Color: Black
Brightness: 400cd/m2
CPU: Intel i3
Hard disk: 120GB SSD
RAM: Kingston 4GB
OS: Windows
Display size: 1435*809 mm
Response time: 5ms

Specifications

Products view of front

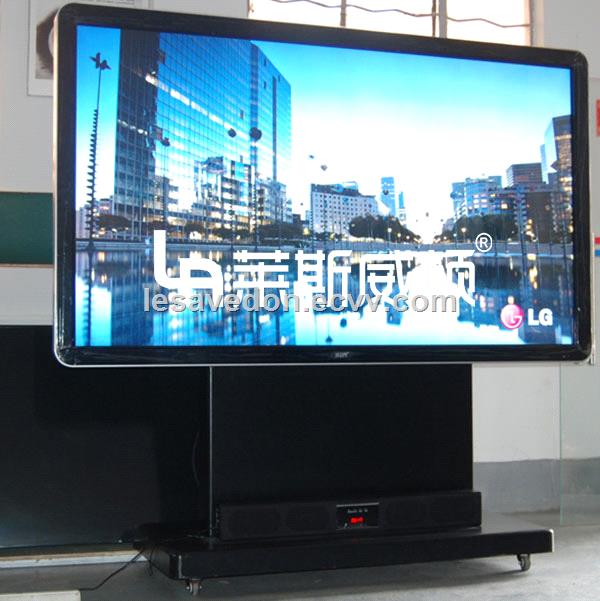

LASVD 65 inch Ttype multi function infrared touch screen query all in one pc

below are product's main features and specs.

LED panel parameters
LCD
Brand new original LCD screen
Screen Type
65 inch LCD
Ratio
16:09
Contrast Ratio
1400:1
Response Time
8ms
Physical resolution
1920x1080/60Hz
Display size
1435(H)×809 (V) (mm)
Color
16.7M
Brightness
400cd/m2
Panel Life
>60,000(hrs)
Viewing Angle
H170°/V160°
Touch Screen Parameters
Touch Mode
Embedded infrared touch technology
Touch Point
Ten points
Touch resolution
4096 * 4096
Light-resistant
88K LUX working
Refresh Rate
172HZ
Response time
<5.81mS
Working current
255ma
Power
1.28W
Positioning accuracy
<1.5mm
Write Method
Finger or Non-transparent material
Transmittance
>98%,up to 100%(no glass)
Supply voltage
+5V DC allowable range +4.75V~+5.25V
Operating voltage
USB* 2, monitor switch, computer switch
Interface mode
USB2.0(slave)at full speed
System Campatibility
Windows7/Windows8/Windows10/Android 4.4X/XP
Measurement of drift
Drift does not change with the environment.
Service life
over 8 years
Number of touch
Unlimited
Repair rate
0.3 percent
Hardware Parameters
CPU
Intel i3
Mainboard
Industrial personal computer mainboard
Hard disk
120GB SSD
RAM
Kingston 4GB
Graphics card
Intel graphics media accelerator nuclear
Audio card
Integrated 6.1 channels HD Realtek ALC622 audio card
Network card
100M Onboard NIC/WiFi wireless network card
Loudspeaker
2*10W
Compatible video format
PAL/NTSC
OS
WindowXP/window7/window8/Windows10
