Specifications
this plate bending machine is used to bend the large plate for the shipbuilding industry.
1. this Machine is developed and designed under the guide of our Germany expert,we have the whole independent intellectualproperty.
2. the machine is composed of the top roller assembly, bottom roller assembly, bed, left frame, right frame, support roller assembly, balance assembly, main drive assembly, oil cylinders, hydraulic system and electric system.
3. Adopt double main motors driving system which has the advantage of compact in structure, good in performance, low in energy consumption and environment protection.
4.We have exported the machine WE11N-35X13500 to vietnam (Thickness 35mm,length 13500mm)
5.WE11N-35X21000 is the largest bending machine shipbuilding in the world..
We are the largest producer for plate bending machine and plate straightening machine, the max thickness for the bending machine is 260mm and the max width is more than23m. Our max staightening thickness is more than 100mm for our plate straightening machine, we are the drafters of this China Nation Standardand for the plate bending machine and plate straightening machine.

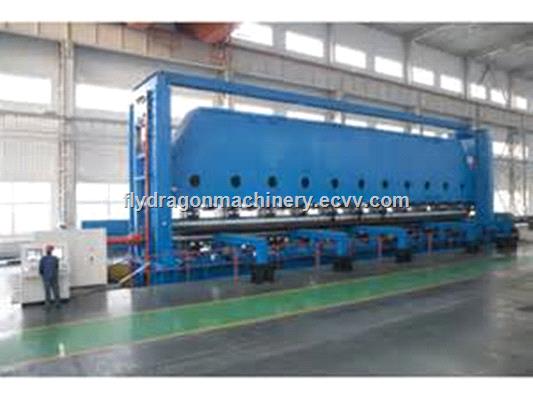

We are the biggest producer in China for plate bending machine, especially the machine for shipyard,and the biggest ship plate bending machine in Asia have been finished in our company recently, it is 35X23000mm ship plate bending machine as the picture shown.Welcome everyone come here to guide and visit.
this plate bending machine is used to bend the large plate for the shipbuilding industry.
1. this Machine is developed and designed under the guide of our Germany expert,we have the whole independent intellectualproperty.
2. the machine is composed of the top roller assembly, bottom roller assembly, bed, left frame, right frame, support roller assembly, balance assembly, main drive assembly, oil cylinders, hydraulic system and electric system.
3. Adopt double main motors driving system which has the advantage of compact in structure, good in performance, low in energy consumption and environment protection.
4.We have exported the machine WE11N-35X13500 to vietnam (Thickness 35mm,length 13500mm)
5.WE11N-35X21000 is the largest bending machine shipbuilding in the world..
| WE11N SERIES CNC SHIPBUILDING PLATE BENDING MACHINE | |||||
| Specifications | Max Length(mm) | Max thickness (mm) | Yield limit (MPa) | Rolling speed (m/min) | Main Motor (Kw) |
| 20×8500 | 8500 | 20 | 345 | 4 | 15x2 |
| 20×12500 | 12500 | 20 | 345 | 4 | 15x2 |
| 25×8500 | 8500 | 25 | 345 | 4 | 15x2 |
| 25×12500 | 12500 | 25 | 345 | 4 | 20x2 |
| 25×16000 | 16000 | 25 | 345 | 4 | 33x2 |
| 30×12500 | 12500 | 30 | 345 | 4 | 33x2 |
| 30×13500 | 13500 | 30 | 345 | 4 | 33x2 |
| 30×17000 | 17000 | 30 | 345 | 4 | 40x2 |
| 32×16500 | 16500 | 32 | 345 | 4 | 40x2 |
| 35×13500 | 13500 | 35 | 345 | 4 | 40x2 |
| 35×21000 | 21000 | 35 | 345 | 4 | 50x2 |
We are the largest producer for plate bending machine and plate straightening machine, the max thickness for the bending machine is 260mm and the max width is more than23m. Our max staightening thickness is more than 100mm for our plate straightening machine, we are the drafters of this China Nation Standardand for the plate bending machine and plate straightening machine.
We are the biggest producer in China for plate bending machine, especially the machine for shipyard,and the biggest ship plate bending machine in Asia have been finished in our company recently, it is 35X23000mm ship plate bending machine as the picture shown.Welcome everyone come here to guide and visit.
