| Application: | Laser Engraving |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 1300*900 |

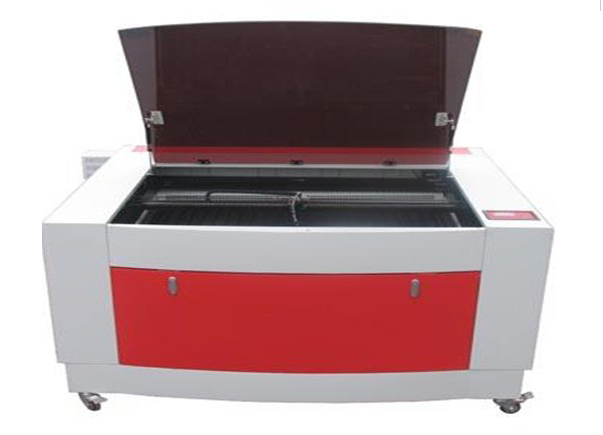

| Model Number: | JY1390 Laser Engraving |
| Brand Name: | ZhongQiangJiaYe |
| Place of Origin: | China (Mainland) |
| Graphic Format Supported: | BMP,PLT |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Engraving Speed: | 1200mm/ s |
| Engraving Area: | 1300mm x 900mm |
| Laser Type: | CO2 |
| Condition: | New |
| Laser Marker: | JY1390 |
Quick Details
Specifications
Description:
Materials that can be cut: Non-metal materials, such as bamboo, plexiglass, acrylic, rubber, paper, and so on. with the improved linear guide, this machine has a perfectly cutting or engraving precision.
Feature:
? Professional design for client in different industry, reasonable structure, pleased appearance & practical.
? High strength & high stable mechanical structure composed of high precision mould, machine moved stable, in high speed & precision, back - open design convenient for material process & no limit for material length.
? Adopt flight path design, special structure, little path deviation, high performance & easy adjustment.
? Update USB offline control system & large memory capacity to improve work speed & efficiency.
Advantage:
? Avoid polishing, processing high speed, and high precision;
? Glass viewing windows creating a safe enclosure for laser processing;
? Original Singapore imported lens can greatly improve working efficiency and reduce cost;
? Exhausting, absorbing and assistant blowing systems extend the life of the laser tube;
? Aluminum strip shape platform can bear heavier materials, such as acrylic, wood and much more non - metal materials;
? Large internal memory capacity improves the working speed with greater efficiency;
? with a fine cutting effect and price advantage.
Used for:
? Advertising Industry: Acrylic, double color board & other advertising material engraving & cutting.
? Leather Industry: Engraving & through - carving on leather & cloth.
? Craft Industry: Engrave and cut on paper, wooden material, bamboo, leather, seashell & ivory material.
? Model Industry: Cutting for architectural model, Aviation and navigation model, wooden toy.
? Packaging Industry: Engrave & cut on rubber, composite board & Laser die board.
? Engrave & cut in decoration industry & electronic appliance industry materials.
Details:
Maximum Working Area: 51" x 35" (1300mm x 900mm)
Maximum Cutting Speed: 24" (600mm) / s
Maximum Engraving Speed: 48" (1200mm) / s
Laser Type: Sealed - off Glass , Wavelength: 10.6um
Max. Cutting Thickness (Acrylic): ≤ 1" (25mm)
Location Precision: < 0.01mm
: AC 110 or 220V ± 10%, 50Hz or 60Hz
Control System and Driver: High Speed DSP control system, stepper motor, High subdivision driver
Supported Format and Software: PLT, DST, DXF, BMP, AI, Support AutoCAD, Corel Draw output directly
