| Type: | Labeling Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | ce |
| Weight: | 200kg |
| Dimension(L*W*H): | 2*0.4*1.5m |
| Model Number: | HF-2000M |
| Brand Name: | howfond |
| Place of Origin: | China (Mainland) |
| Power: | 0.25kw |
| Voltage: | 220v |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Packaging Material: | Plastic |
| Packaging Type: | Bottles |
| Application: | Beverage,Chemical,Commodity,Food |
| Condition: | New |
Quick Details
Specifications
1. Advantage of HF series steam shrink tunnel machine for sleeve labeling bottles
(1) the blower motor's holder is made of SS304 stainless steel.
(2) the elbow which connects blower motor is Made of SS304 steel, no shape changing shape by steam.
(3) the frame is made of SS201 or SS304 Stainless steel.
(4) the steam spray tubes are made of SS304 Stainless steel.
(5) the steam transmission tubes are made of SS304 stainless steel.
(6) the sizes of entrance/exits suit most Bottles.
(7) Available special design and
Manufacturing for special sizes of bottles. Item
Models HF-1200M HF-1500M HF-2000M HF-2300M Length of tunnel 1.2meters 1.5meters 2.0meters 2.3meters Blower powder ?12, 0.25KW ?12, 0.25KW ?12, 0.25KW ?12, 0.25KW Powder supply of blower 220V 3P 60Hz /220V 1P 50Hz Entrance /exit height Max 350mm Entrance /exit width 130~185mm (fixed size once
Confirmed) Running pressure Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa Weight 180kg 200Kg 220kg 230kg Steam consumption 18kg/h 21kg/h 24kg/h 24kg/h Outline size (m) L1.2*W0.4*H1.5 L1.5*W0.4*H1.5 L2.0*W0.4*H1.5 L2.3*W0.4*H1.5
2. Parameters
3. Application bottles sample

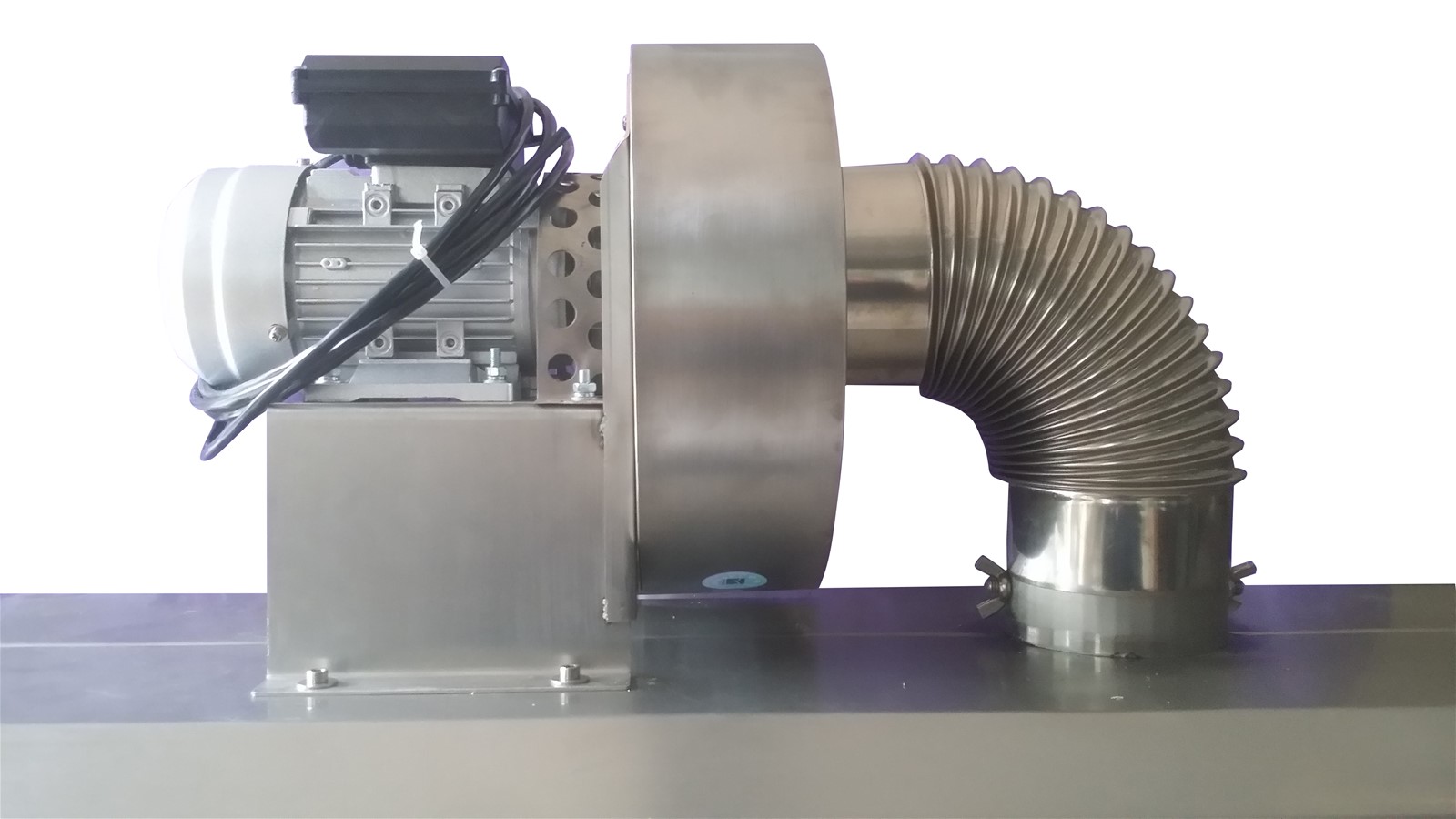

4. Some details of Steam shrink tunnel machine for sleeve labeling bottles
