1.    Brief Introduction

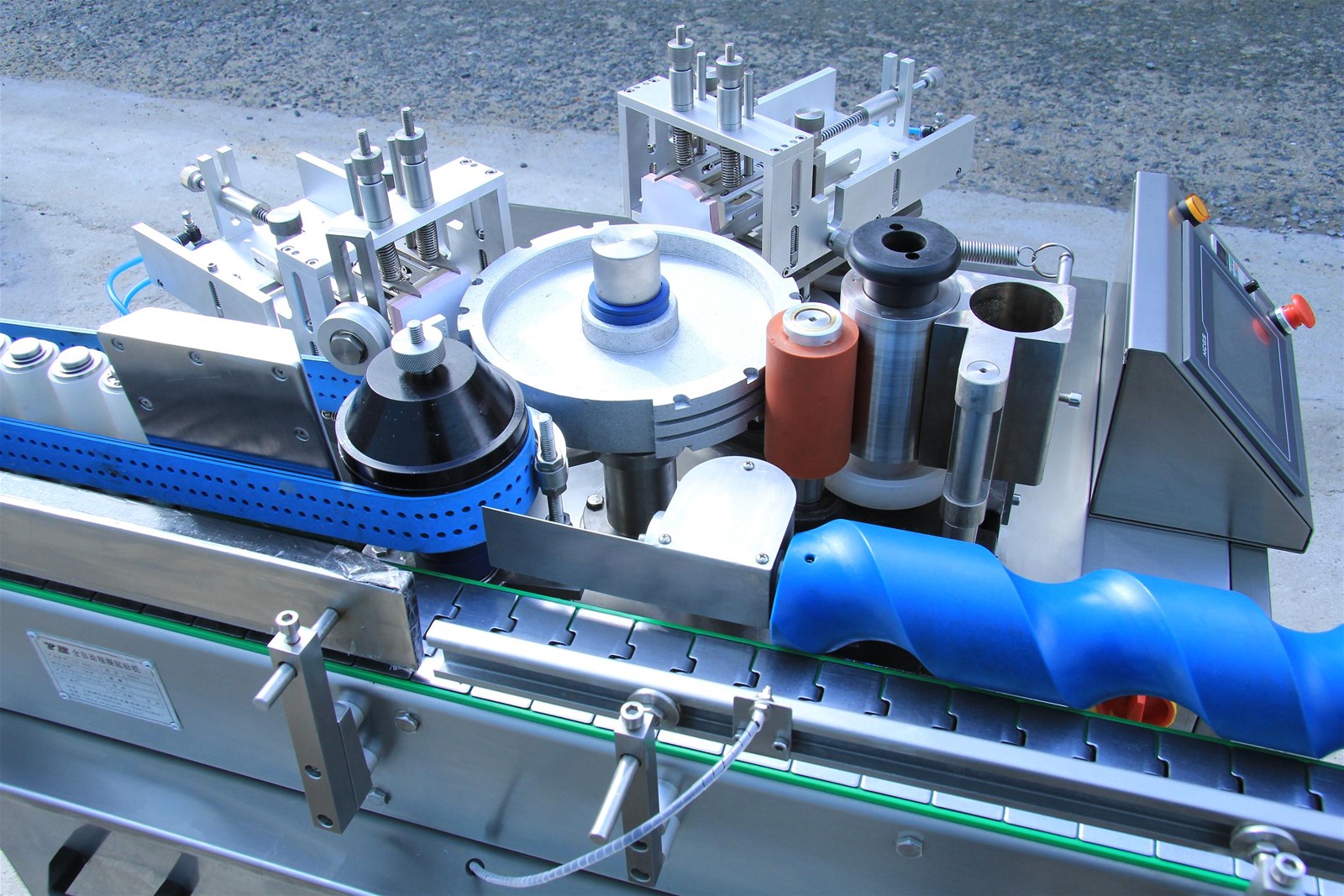

Liquid glue labeling machine is also called cold Glue labeling machine. the machines coat the liquid labels to paper labels' Back', and paste the paper labels to glass or metal rounds bottles and jars.

this machine is widely used for the labeling of the Round objects in such industries as food, medicine, daily chemical and so on. Mostly, the bottles are around and glass; the glue is water soluble resin glue.

this machine costs much less than others types Labelers, it is competitive for some application, our inline cold glue labeling Machine's max speed is 120bpm.



2. Advantage of HF Liquid glue labeling machine

(1) Unique Internal structure design

(2) Use touch screen control system

(3) the use of high-quality electrical components

(4) Economical labeling cost little.

(5) Reliable and steady machine.

(6) Max speed can reach 120bph

(8) Scientific design and attractive appearance

3.    Parameters

Name	Inline Cold Glue Labeling Machine
Model	HF-120M
Power supply	380V/480V±10％3P, 50/60HZ
Total power	2KW
Labeling type	Part of the round
Bottles	Glass, Round ∮30-105mm
Glue coating	Full coating on the back of Labels
Label sizes	Length 35-300mm, height 30-98mm
Labels type	Paper, pieces in stock
Capacity	50~100bpm(Normal 500ML)
Glue	Water soluble resin glue
Compressed air	5.0bar, 4-6kgs×18liter/H Consumption
Total weight	550kg
Machine sizes	L=3000 W=850 H=750 mm
