| Place of Origin: | China (Mainland) |
|---|---|
| Model Number: | HKH6-320 |
| Brand Name: | PUYI |
| Material: | Rubber and Steel |
| Width: | 320mm |
| Height: | 810mm |
| Length: | 1110mm |
| Application: | Off-road vehicles/pickup truck... |
| Weight: | 100kg/pc |
| Net Weight: | 3T |
Quick Details
Specifications
1, Undercarriage parts: track roller,carrier roller,sprocket,idler wheel,track link assy.
2, Recoil Spring and tension cylinder ,u yoke ,excavator track adjuster.
3, H-Link (bucket link) and I-link(link rod), track guard.
4, GET :bucket, Cutting edge, End bit, Bucket teeth, Bucket adapter, Side cutter.
5, Pin and bushing: track pin and bushing, Bucket bushing and pin, Bucket ear,Shaft sleeve, bolts and nuts.
6, Hydraulic part: Boom cylinder, Arm cylinder, Bucket cylinder.

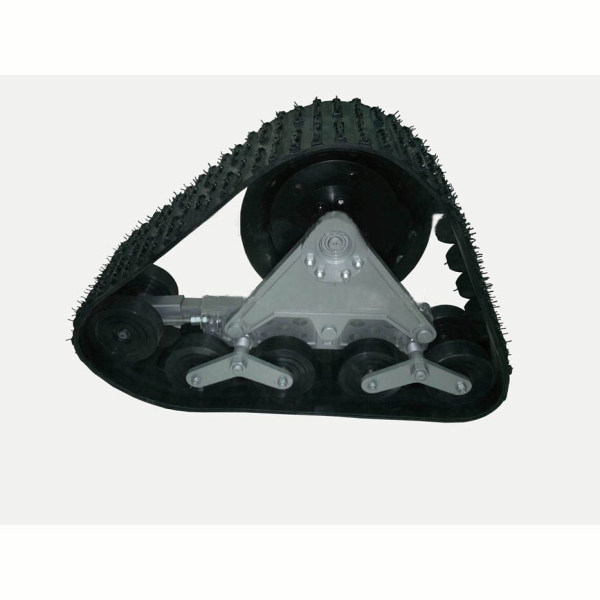

Rubber tracks conversion system for trucks
Specification:
- CNC Machined Billet Aluminum
- Full bearing setup
- All terrain rubber track conversion system
- Adjustable track tension
- Larger drive wheel for more speed
- Double arms for more realistic setup
- Better scale design
- Engineered by RC4WD UK
- Manufactured by RC4WD
- Hex:12mm
Notes:
- this is enough to prep one axle. in order to do a 2 axle truck, you will need two of this item.
- these require a fitting kit to be used for proper mounting and use.
- with only one pair installed on a truck, you will have a gearing change between the normal wheels and the Tracks. If mounting the tracks on the front it will cause push / under steer.
- We recommend the use of these tracks on all corners of the truck for best results.
- Brushless system and higher gearing is suggested, but not required.
- Threadlock is requires on all screws on the tracks before use.
Capable
- Greatly improved traction
- Exceptional floatation with very low ground pressure
- Matches or exceeds wheeled hauling capability
- Maximum performance when pulling implements
- Exclusive technologies for superior performance
Reliable
- Outstanding durability
- Ten years of ATV track system innovation, engineering, and marketing
- Half-century heritage of molded track manufacturing
- Warranty coverage
Versatile
- Systems for virtually all 4WD ATVs 300cc and up including side-by-sides and 6-wheelers.
Safe
- Greater vehicle stability
- Remarkable operational control
Easy
- Easy switch from wheels to track systems
- Easy maintenance
 |
Model: | HKH6-320 | Length: | 1110mm |
| Packing: | Simple/Cardboard Box/Iron Frame | Width: | 320mm | |
| Height: | 810mm | |||
| Material: | Alufer | Net Weight: | 100KG | |
| Ground Contact Length: | 850mm | Load bearing: | 3T | |
| Sprocket Center Distance to the Ground: | 555mm | |||
| Links for Rubber Track: | 33 | |||
| Applicable Type of Vehicles: | off-road vehicles/pickup truck/3.0 tons of the following vehicles | |||
| the highest speed limit requirements: | 50km/H | |||
| Remarks: a set of includes four separate assembly;the size of the form of three high for a single assembly. | for off-road product, but do not represent can pass any terrain, you like take care of your car, please take care of this product | |||
