We Provide:

1X2 FIBER OPTICAL SWITCH, 1X2 MECHANICAL OPTICAL SWITCH,

1X2 MEMS OPTICAL SWITCH, 1X2 SM MM OPTICAL SWITCH

1X2 MINI OPTICAL SWITCH, 1X2 MAGNETO-OPTICAL SWITCH



1X2 Optical Switch Features



Low Insertion Loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching



1x2 Optical Switch Applications



Optical Signal Switching and Routing

Optical Network Protection and Restoration

Optical Network Monitoring

Video Distribution

Instrumentation Resource Sharing

Military Communications

1x2 Optical Switch Specifications

Parameters		OSW-1×2
Wavelength Range	nm	650～1310	1260～1670
Testing Wavelength	nm	650/780/850/980/1064/1310	1310/1490/1550/1625/1650
Insertion Loss	dB	Typ:0.6,Max:1.0	Typ:0.5,Max:0.8
Return Loss	dB	≥30	≥50
Crosstalk	dB	≥35	≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power supply	v	3.0 or 5.0
Lifetime	Cycle	≥ 107
Switch Time	ms	≤8
Transmission Power	mW	≤500
Operation Temperature	℃	-40～+85
Storage Temperature	℃	-40～+85
Weight	g	16
Dimension	mm	(L)27×(W)12.6×(H)8.5(±0.2)



 Route states









Pins

Optical Path

Electric Drive

Sensor Status

1×2

1

5

6

10

3－4,7－8

2－3,8－9

Latching

P1---P2

N/A

N/A

GND

+5V

OPEN

CLOSE

P1---P3

+5V

GND

N/A

N/A

CLOSE

OPEN

Non-Latching

P1---P2

N/A

N/A

N/A

N/A

OPEN

CLOSE

P1---P3

+5V

N/A

N/A

GND

CLOSE

OPEN



Electrical parameters



		Voltage	Current	Resistor
5V	Latching	4.5~5.5	36~44mA	125?
5V	Non-Latching	4.5~5.5	26~32mA	175?
3V	Latching	2.7~3.3	54~66mA	50?
3V	Non-Latching	2.7~3.3	39~47mA	70?

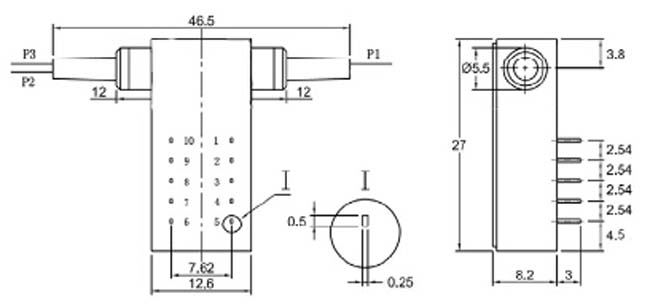

Dimensions





Ordering Information:OSW-1x2-A-B-C-D-E-F-G



A	B	C	D	E	F	G
Mode	Wavelength	Voltage	Control Model	Fiber Diameter	Fiber Length	Connector
SM:9/125um M5:50/125um M6:62.5/125um	85:850nm 13:1310nm 14:1490nm 15:1550nm 162:1625nm 165:1650nm 13/15:1310/1550nm	3:3v 5:5v	L:Latching N:Non-Latching	25:250um 90:900um 20:2.0mm 30:3.0mm	05: 0.5m 10: 1.0m 15: 1.5m	OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC





We Provide:

1x2 FIBER OPTICAL SWITCH, 1x2 MECHANICAL OPTICAL SWITCH,

2x2 MEMS OPTICAL SWITCH, 2x2B SM MM OPTICAL SWITCH

D2x2B MINI OPTICAL SWITCH, D1x2 MAGNETO-OPTICAL SWITCH



CORERAY Optical Communication Co., Ltd. is a highly professional and fast-developing company for optic components and systems. Our factory is located in beautiful green city, Nanning of China. these years, CORERAY is always devoted to achieve No.1 Service, No.1 Quality and Competitive price for the clients. All CORERAY's products are designed and tested to meet the Standards of Telcordia Compliance. by this time, we have a perfect service system and quality assurance system All components enjoy extremely High stability and reliability.

CORERAY products include Mechanical Optical Switch, PLC Splitter, Coupler, WDM, etc.



Please contact us to get the actual unit price, and also welcome to visit our website.
