| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Weight: | 5.4T |
| Dimension(L*W*H): | 5900*4500*3200mm |
| Power(W): | 15~18.5k |
| Voltage: | 380v |
| Model Number: | BC40I |
| Brand Name: | FOREVER |
| Place of Origin: | China (Mainland) |
| Production Capacity: | 33~50sq.m./hr() |
| Use: | Granite |
| Type: | Stone Cutting Machine |
| Condition: | New |
Quick Details
Specifications
the following example is for you reference.
1.Brief Introductc
the machine is invided into two types:split and integral.Table positioning angle is divided into a single 90° and 0° 45° 90° 180° 270°twokind. Customers can choose according to need.Also with head chamfer function.
2.Techincal parameters:

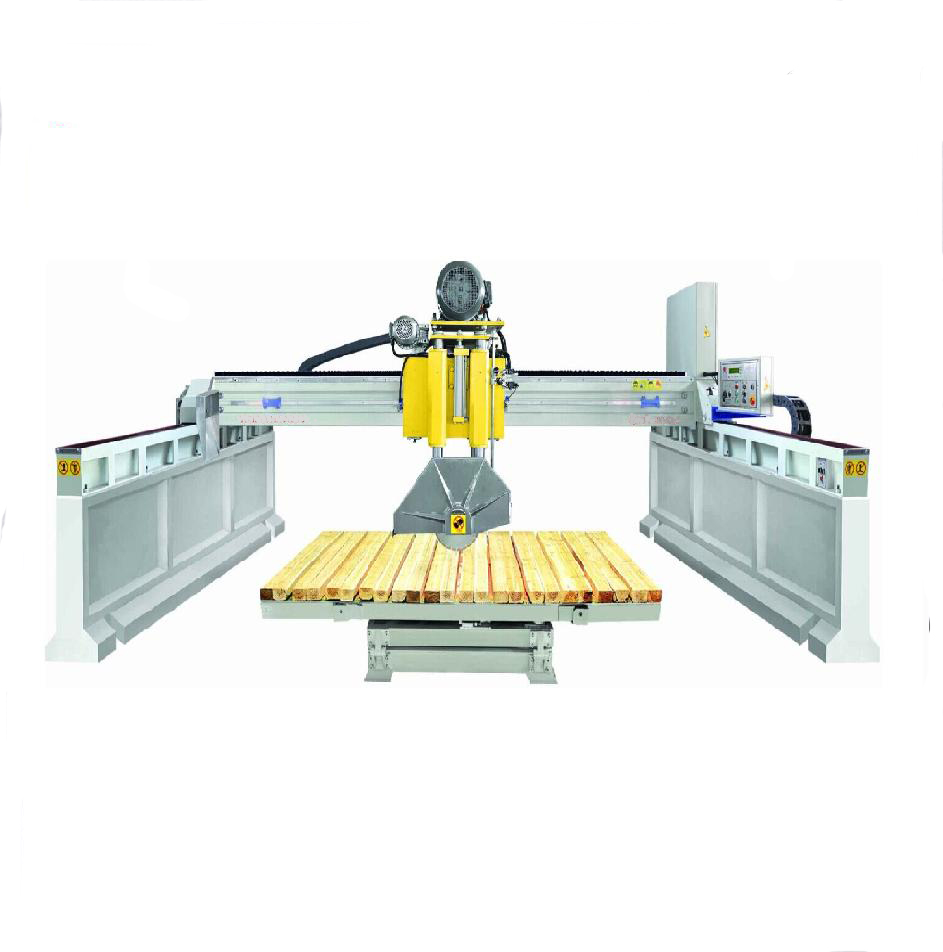

BC40I Infrared Bridge Cutting Machine:Blade diameter Φ400~Φ700mm Transverse travel3300mm Longitudinaltravel3200mm Lift stroke300~380mm Maximum titing angle of worktable80°
Model
Side beam guide
Blade diameter
Lift stroke
Transverse travel
Longitudinal travel
Effective depth
Table rotation
Main motor power
Equipment dimensions
Mass
Table tilting angle
Table positioning angle
Workiing table size
BS40I
Linear motion guide
Φ400Φ700
380mm
3300mm
3200mm
220mm
360°
18.5kwe/4
5800*4500*3200mm
5500kg
0°~80°
0° 45° 90° 180° 270°
3250*2200mm
BS40I-A
Linear motion guide
Φ400Φ600
300mm
3300mm
3200mm
170mm
90°
15kw/4
5800*4200*3000mm
4700kg
0°~80°
0° 90°
3250*2200mm
3.Performance features:
