Description

" or,is made from base materials of polyisocyanate and polyol,catalyst,fire retardant additive and environmentally friendly foam agent.

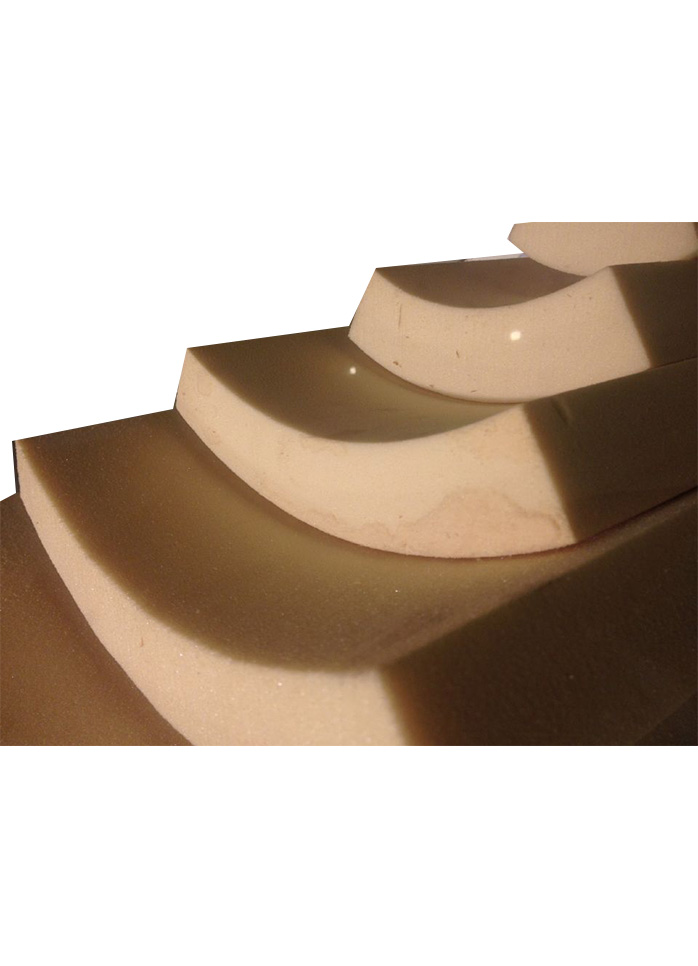

Polyisocyanurate () foam is a closed cell regid foam that combines light weight and strengh with exceptional thermal insulating qualities.The material is available as sectional pipe covering,complete with a vapor barrier jacket,as well as sections for fittings and board segments for equipment and tanks."

Uses

for use on piping,fittings,equipment and tanks operating in the temperature range of -196℃ to 110℃,Typical applicatons include: Commercial and industrial pipe and fitting insulation on chilled water,tank insulation and core material for panel construction (not used in commercial building return air plenums).

Advantages

1. High temperature capability: polyisocyanurate foam does not soften or lose its strentgh at elevated temperatures within the recommended use limits.

2. Excellent chemical resistant: most commercial solvents have no effect on polyisocyanurate,therefore a wide range of adhesives and coatings are suitable for bonding and finishing this insulation material.

3. Low thermal conductivity: factory pre-curing provides consistent physcial properties.

4. Easy insulation:light weight and easy to install on a variety of surfaces.

5. Good moisture resistance: for both liquid and water vapor.

6. Excellent dimension stability.

Packing

Packing: Carton

Storage

Store in a cool,dry,frost-free place. Normal storage conditions in up to 25℃ should provide indefinite shelf life.

Dimension:

Size: all kinds of  plates and shells;

Physical properties of  PIR foam

Parameters	Unit	Technical Data	Testing Method
Density (at room temperature)	Kg/m3	≧45	ASTM D1622, GB6343
Thermal conductivity	W/m.K	≦0.020	ASTM C518, GB10294
Damp permeability coefficient	Ng/PA.m.S	≦3.34	GB/T17146
Water absorption	G/100cm2	≦0.5	GB/Z228
Closed cell rate	％	≧90	GB10799
Compressive strength	Kpa	≧220	GB8813
Flexural strength	Kpa	≧370	GB/T8812
Continuous working temperature	℃	-196 to 110℃
Oxygen index	％	≧32	GB2406
Burning rate		B1	GB8624
the max flame spread rate		≦25	ASTM E84
