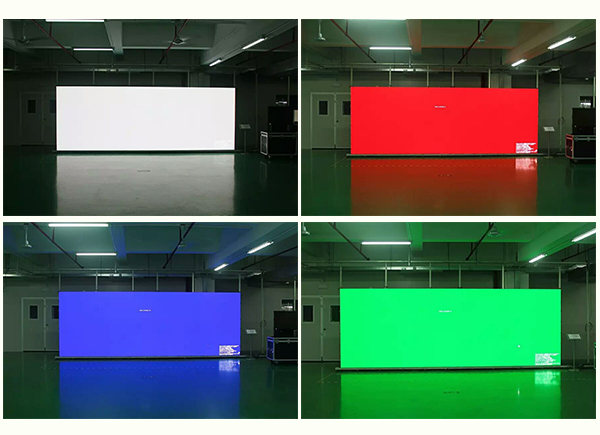

Showcomplex SC-AIF P3.9 Indoor Rental LED Display Aluminum Sheet Metal Cabinet with Good Uniformity and High Refresh
Features:
High Precision Aluminum Sheet Metal panel achieves high flatness and seamless matching of the whole display
Color uniformity, high contrast, clear picture
Ultra thin body, easy to transport and loading and unloading
High stability, high reliability, long service life
Support for both front and back maintenance, easy installation
1.High quality LED chip and high anti-static electricity capacity.
2.Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3.the integration of lamp and driving IC,together with the multi-circuit structure achievs evenly-distributed current, low power consumption and fast heat dissipation.
4.Ultra high brightness,low attenuation,high reliability and weatherability.
5.High contrast,black lamps can improve the contrast ratio by 50%.
6.High refresh rate,high gray scale,ghost-canceling,low power consumption,and support dot-by-dot-calibration.
7.Widely applied to traffic information distribution in station, quay and airport, conference, shopping mall, brand presentation,TV station, stage show, concert and so on.
Parameters:
Features:
High Precision Aluminum Sheet Metal panel achieves high flatness and seamless matching of the whole display
Color uniformity, high contrast, clear picture
Ultra thin body, easy to transport and loading and unloading
High stability, high reliability, long service life
Support for both front and back maintenance, easy installation
1.High quality LED chip and high anti-static electricity capacity.
2.Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3.the integration of lamp and driving IC,together with the multi-circuit structure achievs evenly-distributed current, low power consumption and fast heat dissipation.
4.Ultra high brightness,low attenuation,high reliability and weatherability.
5.High contrast,black lamps can improve the contrast ratio by 50%.
6.High refresh rate,high gray scale,ghost-canceling,low power consumption,and support dot-by-dot-calibration.
7.Widely applied to traffic information distribution in station, quay and airport, conference, shopping mall, brand presentation,TV station, stage show, concert and so on.
Parameters:
| Pixel pitch | 2.5mm | 3.91mm | 4.81mm | 5.21mm | 6.25mm |
| Module size | 160mm*160mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
| Resolution of module | 64*64 dots | 64*64 dots | 52*52 dots | 48*48 dots | 40*40 dots |
| Density of pixel | 160,000 dits/m2 | 65,536 dots/m2 | 43,264 dots/m2 | 36,840 dots/m2 | 25,600 dots/m2 |
| LED Packing | SMD2121 | SMD2121 | SMD3528 | SMD3528 | SMD3528 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Gray scale | 16bits per color | 16bits per color | 16bits per color | 16bits per color | 16bits per color |
| Color capability | 16,777,216 | 16,777,216 | 16,777,216 | 16,777,216 | 16,777,216 |
| Color temperature | 3500~9500K | 3500~9500K | 3500~9500K | 3500~9500K | 3500~9500K |
| Best viewing distance | ≥2m | ≥4m | ≥5m | ≥5m | ≥6m |
| Horizontal viewing angle | 160o | 160o | 160o | 140o | 160o |
| Vertical Viewing angle | 140o | 140o | 140o | 140o | 140o |
| Driving method | 1/32 scan | 1/16 scan | 1/13 scan | 1/8 scan | 1/8 scan |
| Brightness | ≥1000cd/m2 | ≥1000cd/m2 | ≥1200cd/m2 | ≥1500cd/m2 | ≥1200cd/m2 |
| Frame frequency | 50~60HZ | 50~60HZ | 50~60HZ | 50~60HZ | 50~60HZ |
| Refresh rate | ≥2000HZ | ≥2000HZ | ≥2000HZ | ≥2000HZ | ≥2000HZ |
| IP grade | IP32 | IP32 | IP32 | IP32 | IP32 |
| Cabinet size | 480mm*480mm | 500mm*500mm | 500*500mm | 500*500mm | 500*500mm |
| Cabinet resolution | 192*192 dots | 128*128 dots | 104*104 dots | 96*96 dots | 80*80 dots |
| Gross weight of cabinet | 7kg | 7kg | 7kg | 7kg | 7kg |
| Max power consumption | 200W/cabinet | 200W/cabinet | 200W/cabinet | 200W/cabinet | 200W/cabinet |
| Avg power consumption | 80W/cabinet | 80W/cabinet | 80W/cabinet | 80W/cabinet | 80W/cabinet |
| Operating voltage | AC110V/220V±10% | ||||
| Storage temperature | -40°C~65°C | ||||
| Working temperature | -30°C~55°C | ||||
| Earth leakage current | ≤20mA(single LED) | ||||
| Storage working RH | 10%-90%RH | ||||
| Defects rate | ≤0.00001(LED display line standard<0.0001) | ||||
| Flatness | Tolerance of inter pixel ≤0.3mm,Tolerance of modules clearance ≤0.6mm | ||||
| MTBF | ≥10,000 hours | ||||
| Life span | ≥50,000hours | ||||
| Signal Input -with video processor | Composite ,S-video,Component,VGA,DVI,HDMI,SDI,HD_SDI,etc | ||||
| Communication distance | CAT5 Cable(L≤140m ),Multi-mode fiber (L≤500m ),single mode fiber( L≤20km ) | ||||
| Control method | Asynchronization/Synchronization | ||||
| CPU of PC | Pentium4 or above | ||||
| PC system | WinXP,Win2000,Vista, Win7 etc. | ||||
| Control system | Nova/Linsn/Colorlight/DBstar etc | ||||
