Application

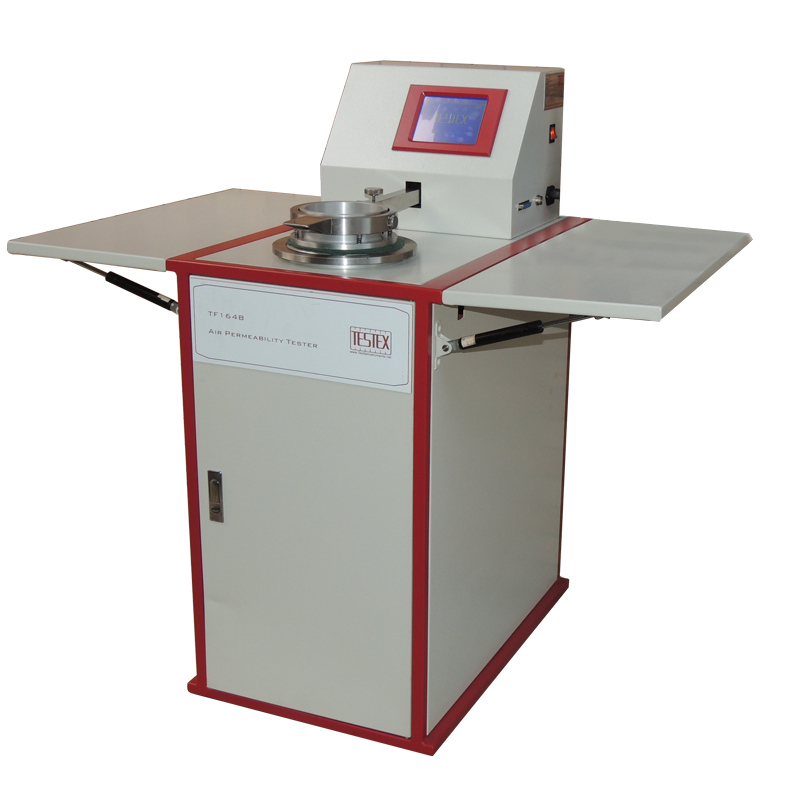

Air Permeability Tester, to determine the resistance of fabrics (woven, knitted and non woven textile materials) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head/area.



the specimen is loaded to the test area of the instrument easily by means of a pneumatic holder. by pressing down the holder to start the test. Air permeability tester equipped with a vacuum pump to draw air through an automatic interchangeable test head with a circular opening. the pre-selected test pressure is automatically maintained, and after a few seconds the air permeability of the test specimen is digitally displayed in the pre-selected unit of measure on the touch panel. after test the holder is released and the vacuum pump is shut off.



Specifications

Can be controlled by the touch panel

Test result is displayed on touch panel, units can be shifted

Equipped with printing function

Equipped with anaysle software.

11 nozzles are included

Standard Test Heads: 20cm2 and 38cm2

Measuring Range: 0.1~12000mm/s (L/m2.S)

Test pressure: 1~4000Pa

Max thickness of specimen: ≤8mm

Measuring accuracy: <+/-2%



Optional Test Heads

5cm2, 25cm2, 50cm2, 100cm2



Standards: ASTM D737, ISO 9237/7231, BS 5636, JIS L 1096A, DIN 53887, EDANA 140.1, AFNOR G07-111, TAPPI T251, GB/T 5453 / 13764, GB/T13764

Power: 220/110V   50/60Hz   400W

Weight: 120 Kg

Dimensions: 600x700x1100mm (LxWxH)
