| After-sales Service Provided: | No overseas service provided |
|---|---|
| Certification: | ISO9001: 2008 |
| Rated Speed: | 30km/h |
| Max Digging Radius: | 6393mm |
| Machine Weight: | 6.3ton |
| Maximum Digging Depth: | 3368mm |
| Maximum Digging Height: | 6685mm |
| Bucket capacity: | 0.3m3 |
| Operating Weight: | 6.5 ton |
| Moving Type: | Wheel Excavator |
| Condition: | New |
| Model Number: | BD80-8 |
| Brand Name: | Baoding |
| Place of Origin: | China (Mainland) |
| Product name: | New Small Wheel Excavator for digging earth with 8 wheel |
| Color: | red |
| Engine: | Xinchai supercharged engine |
| Power output: | 42KW |
| Warranty: | 1 year / 1500 hours |
| Overall length: | 6000mm |
| Overall width: | 2030mm |
| Overall height: | 2700mm |
| Max. dumping height: | 5057mm |
| Wheel: | 825-16, 8 wheel |
Quick Details
Specifications
NewSmall Wheel Excavatorfor digging earth with 8 wheel
BD80 Wheel Excavator
1. Parameters:
Overall Length |
6000mm |
Overall Height ( to top of cab) |
2700mm |
Overall Width |
2030mm |
Wheel base |
1575mm |
Working ranges | |
Min. Swing radius |
2045mm |
Max. Digging radius |
6393mm |
Max. Digging depth |
3368mm |
Max. Digging height |
6685mm |
Max. Dumping height |
5057mm |
Technical specifications | |
Operating weight |
6.5T |
Bucket capacity |
0.3m3 |
Engine model |
Xinchai Supercharged engine |
Type |
4 cylinders water cooling DI |
Certified capacity |
2*25ml/r |
Power output |
42kw |
Travel speed |
0-30km/h |
Grade ability |
300 |
Main pump type |
Import gear pump/plunger pump |
Wheel type |
8 wheel, type 825-16 |
Swing speed |
11.5r/min |
Remark: as for the products improvements, all of design and technical parameters, please in kind prevail.

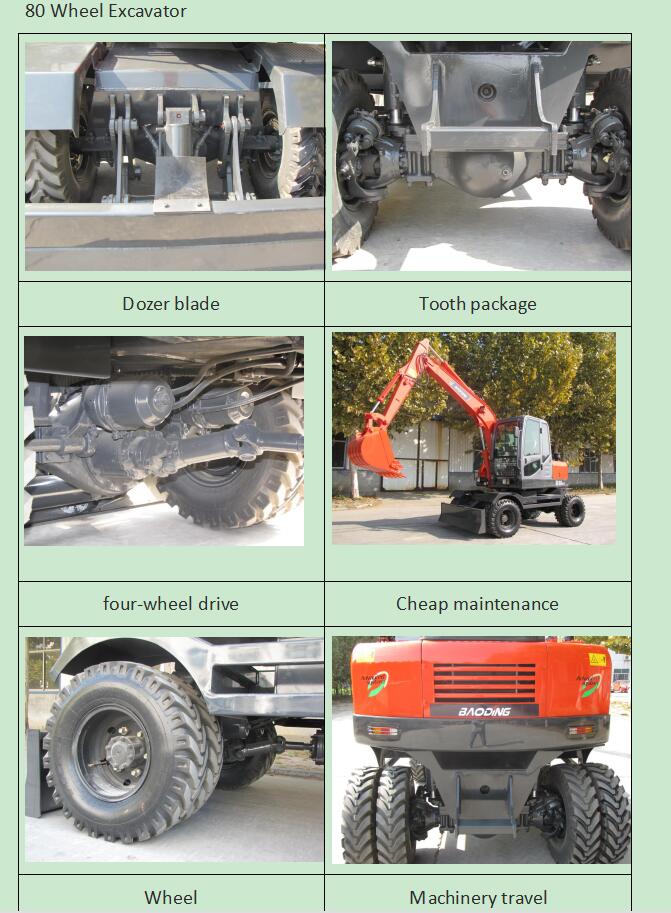

2. Special advantages:
FAQ
Q: I want to transport theExcavator by container, is it ok?
A: Yes, it is ok.but we need take apart theExcavator.You should reinstall in your country.
Q:how about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:I want to be your agent in my country, is that ok?
A:It's ok, If your quantity is big, we will consider. for the first time 50 units is ok.
