P2.5mm P3MM P1.914MM Small Spacing Indoor Full Color Led Displays

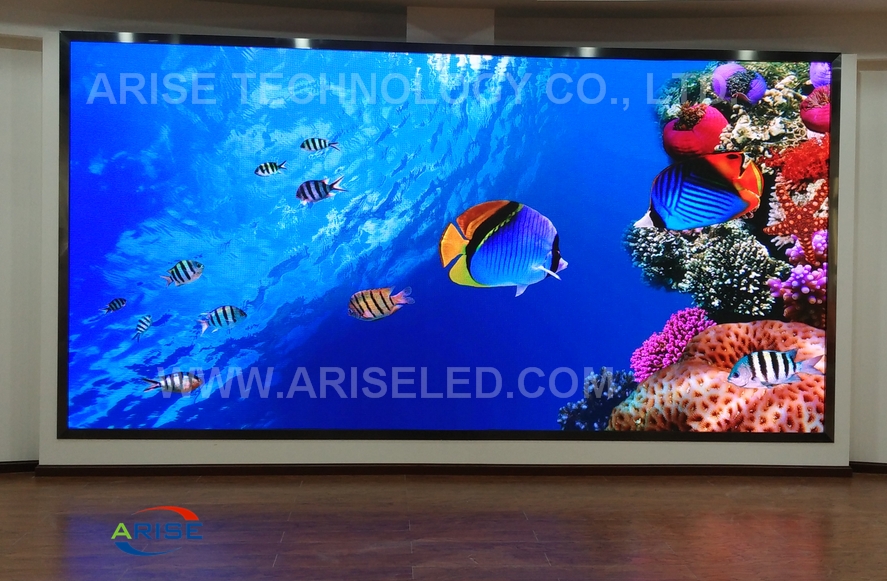

P2.5mm Small Spacing Indoor Full Color LED Displays Ariseled


Arise Technology Co., Ltd

Specifications
1.Indoor P2.5 video display LED Display Screen;
2.Epistar chip,pure color,meanwell 16026, MBI5020IC;
3.Class-A material for chip mask;



Indoor P2.5 video display  LED Display Screen  price
Module Specification   Item No. P2.5  SMD2121
Classification       Full color
Pixel pitch     2.5mm
Size of module (mm*mm)   160*80mm
Pixel density  160000dots/m2
Pixel composition 1R1G1B
LED encapsulation     SMD 2121
Resolution of module  64*32
Best viewing distance >1m
Best viewing angle (Horizontal/Vertical)  140°/140°
Max power consumption    2600W/m2
AVG power consumption    1300W/m2
Certificate    CE,ROHS,CCC,ISO9001
Driving method    1/16 Scan
Refresh rate ≥600HZ
White balance brightness  ≥1400cd/m2
Working  temp    —20°C~60°C
Operating  humidity   10%--95%
IP grade IP43
Working voltage   AC 220±10% or 110±10%
Grey scale    14 bits per color
Contrast Ratio     4000:1
Blind Spot Rate    <0.000001
Brightness adjustment       256 levels of each color (RGB) can be adjusted manually
Control system     Control system: Linsn / Zdec
 Source compatibility:CVBS,YC, YUV,RGB, DVI, SDI, HD-SDI, HDMI
Communication distance: Internet cable: ≤120m / Fiber cable: 1000m
Signal transfer mode: Pixels to pixels display synchronized

Delivery By ship   Based on customer requires or situations:
By air.By Express EMS; UPS; DHL; FEDEX; TNT etc.

Applications:
1. Comercial advertising LED display screen,
2.Stadium perimeter LED display screen,
3.Mobile trailer LED display screen for mobile media,
4.Shopping mall LED display screen for logo showing,
5.Bank&stock exchange LED display screen for rates showing,
6.Train & bus station LED display screen,air port LED display screen,
7.Telecommunication LED display screen system for information showing and instruction.
