Application

Spray Rating Tester, to determine the surface wetting resistance of fabrics, which may or may not have been given a water-resistant or water-repellent finish.

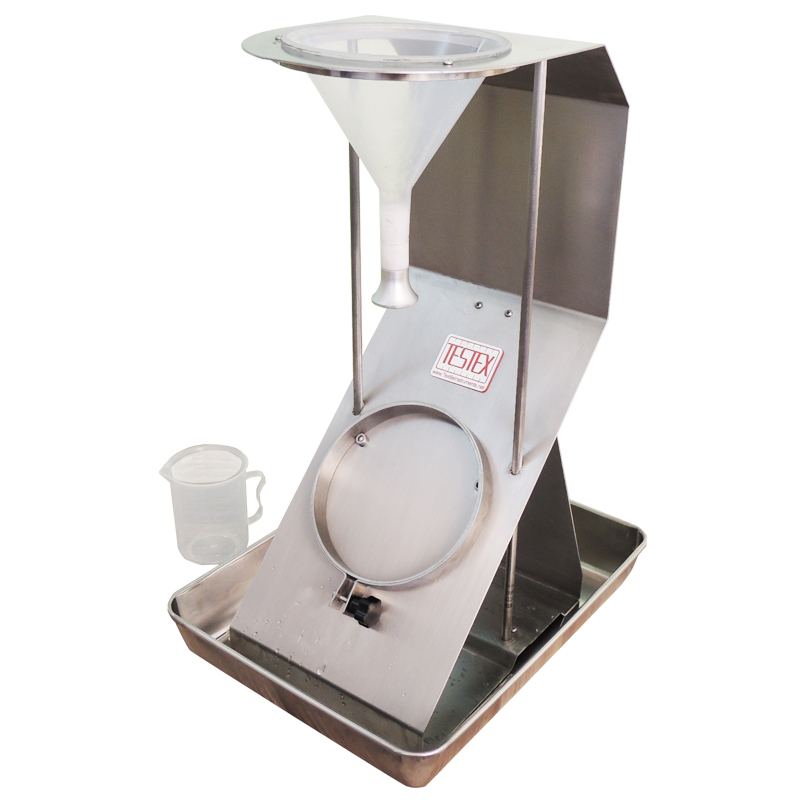

Spray rating tester consists of a metal framework allowing distilled water to be sprayed through a nozzle onto a test specimen at 45° and 150mm below the nozzle.

Specifications

Nozzle: 19 holes of 0.9mm diameter

Angle of holder: 45°

Holder: 150 mm Dia. 150mm below the nozzle

Measuring Cup: 250ml

Standards: ISO 4920, AATCC 22, BS EN 24920, BS 3702,M/S P23/P133, next 23

Weight: 12 Kg

Dimensions: 220x260x550mm (LxWxH)
