| Screen Dimension: | P1.2 P1.25 P1.5 P1.56 P1.667 P1.8 P1.923 |
|---|---|
| Pixels: | P1.2 P1.25 P1.5 P1.56 P1.667 P1.8 P1.923 |
| Display Function: | Video |
| Tube Chip Color: | Full Color |
| Usage: | Indoor |
| Model Number: | P1.2 P1.25 P1.5 P1.56 P1.667 P1.8 P1.923 |
| Brand Name: | ARISELED |
| Place of Origin: | China (Mainland) |
| Pixel Pitch(mm): | P1.2 P1.25 P1.5 P1.56 P1.667 P1.8 P1.923 |
Quick Details
Specifications

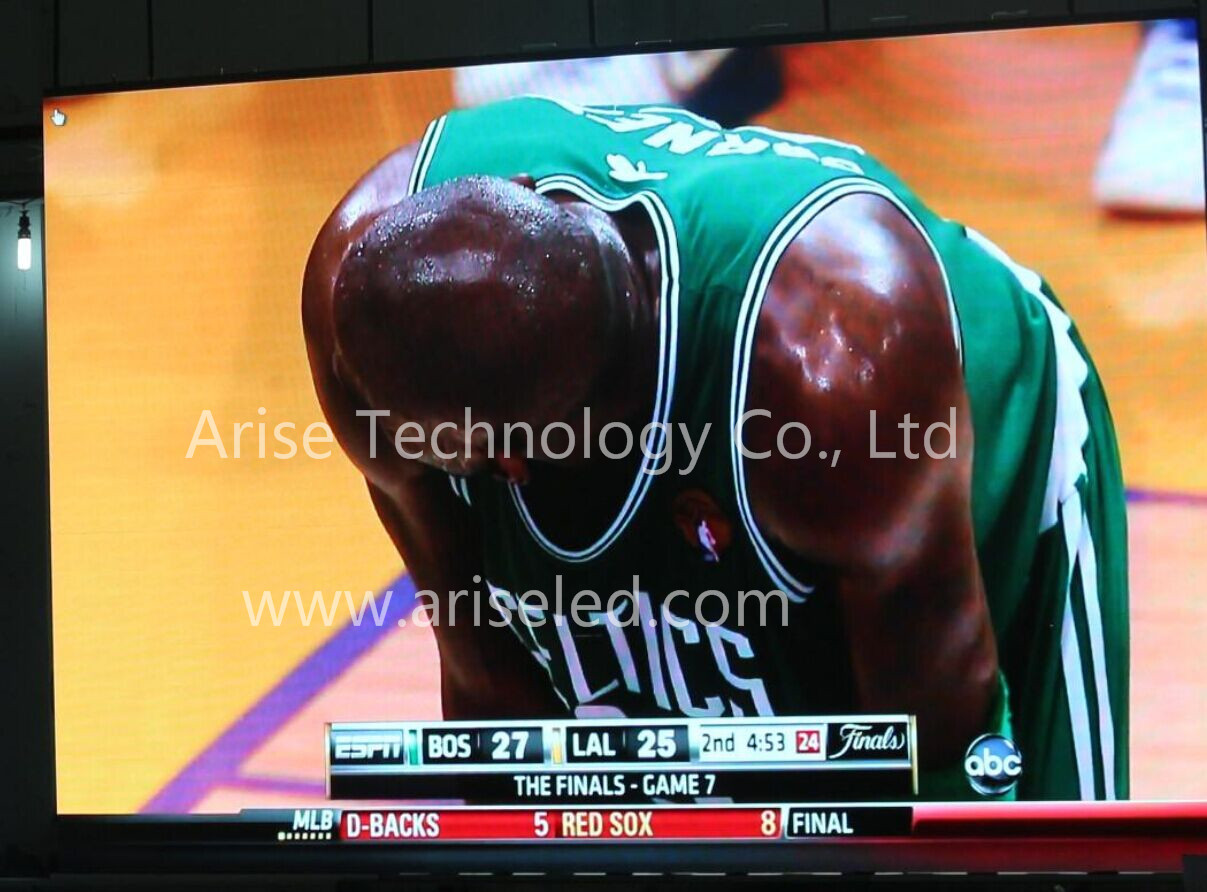

P1.2 P1.25 P1.5 P1.56 P1.667 P1.8 P1.923 Smaller Indoor LED TV,
P1.2 P1.25 Ultra HD LED display as indoor LED TV with 4K image quality
Arise Technology Co., Ltd.
Arise Technology Co., Ltd.
P1.2 P1.25 Ultra HD LED display as indoor LED TV with 4K image quality
Arise Technology Co., Ltd.
Pixel Pitch (mm) |
1.5 |
1.9 |
Pixel Density (dots/m2) |
409600 |
262144 |
Brightness Max (CD/m2) |
≥1000 |
≥1000 |
Grey Scale (bit) |
16bit |
16bit |
Refresh Rate (Hz) |
≥3000 |
≥3000 |
Frame Rate (Hz) |
50/60 |
50/60 |
Contrast |
≥1000:1 |
≥1000:1 |
Color Temperature (after calibration) (K) |
6500 |
6500 |
Horizontal / Vertical Viewing Angle (°) |
H160/V160 |
H160/V160 |
Module Size (W x H x D) (mm) |
250x250x60 |
250x250x60 |
Weight (kg/panel) |
≤2.1 |
≤2.1 |
Protection |
IP40 |
IP40 |
Power Supply |
Single power(Dual power) |
Single power(Dual power) |
Working Voltage(V) |
AC100-240V/50/60Hz |
AC100-240V/50/60Hz |
Max Power Consumption (W/pcs) |
≤90 |
≤90 |
Working Temperature |
-20Co/40C° |
-20Co/40C° |
Cabinet Material |
Carbon fiber |
Carbon fiber |
Max Hanging (vertical) |
≥500kg |
≥500kg |
Signal Cable |
CAT5-1000M |
CAT5-1000M |
Video Signal Input Interface |
DVI/HDMI/HDSDI |
DVI/HDMI/HDSDI |
Life Time (h) |
≥75000 |
≥75000 |
